Product Details

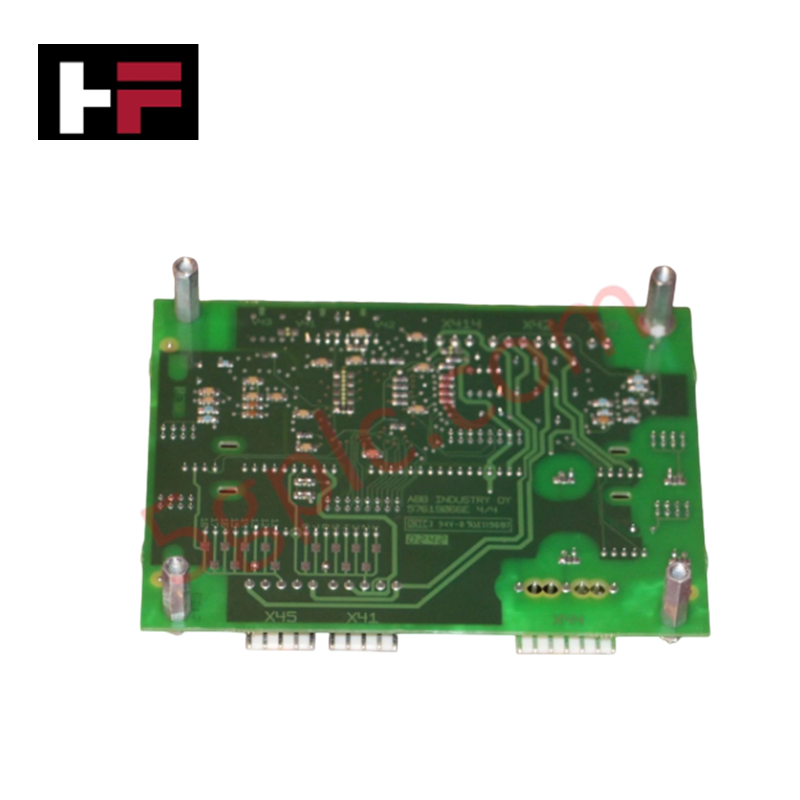

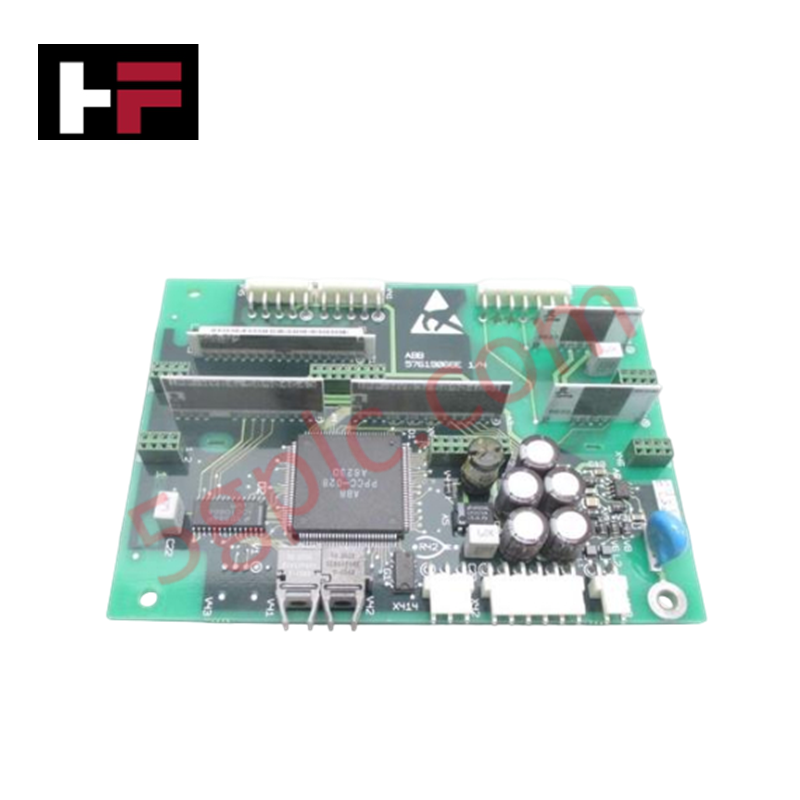

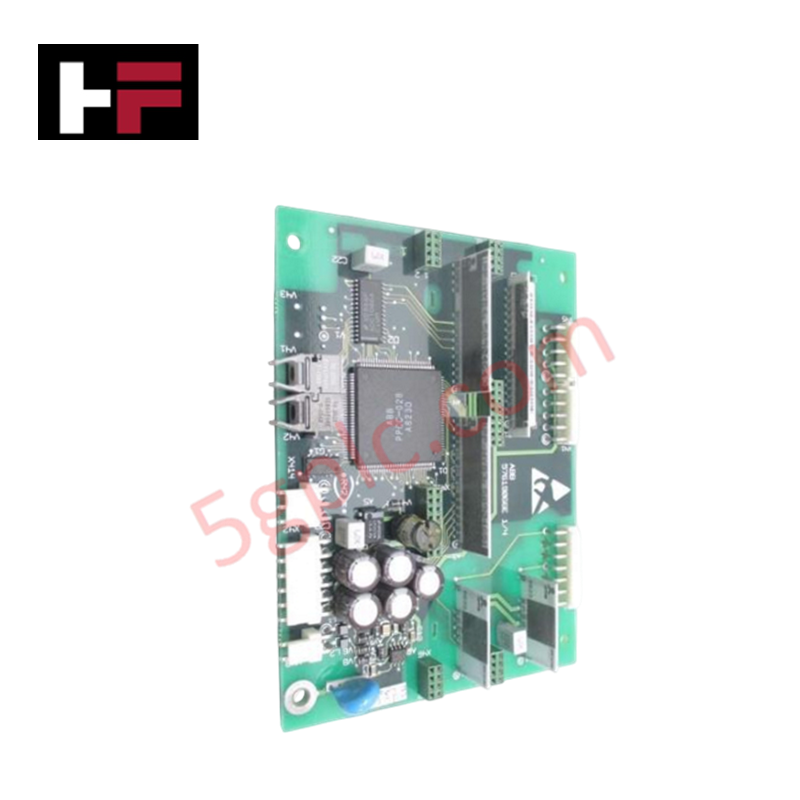

Configured for high-speed gating control and main circuit feedback processing in ABB variable frequency drives, the ABB NINT-52 (NINT-52 Drive Interface Board) provides direct physical/electrical execution. The circuit board routes firing signals to power semiconductor stages and digitizes current and voltage feedback across internal drive backplane buses.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | NINT-52 |
| Brand | ABB |
| Product Type | Drive Interface Boards |
| Weight | 0.28 lbs (0.13 kg) |
| Dimensions | Standard internal drive slot footprint |
| Operating Temp | -10 to +50 deg C (standard drive enclosure internal ambient) |
| Power Consumption | Powered via internal drive control supply bus |
| Application | Main circuit interface for inverter/rectifier power stages |
Backplane Bus Communication Velocity and Firmware Integration
The interface board coordinates gate timing signals and power stage diagnostic telemetry across internal high-speed buses. Real-time signal routing between the control unit and power modules minimizes gate driver trigger jitter, enabling precise IGBT state changes. Firmware flash compatibility across supported drive power platforms maintains synchronization of switching frequency limits, pulse-width modulation patterns, and fault suppression routines during dynamic load variations.
Frequently Asked Questions
Q: How does the NINT-52 interface board handle gate control signals?
A: The board receives digital switching commands from the central drive controller unit and conditions the pulses to drive power semiconductor stages directly via ribbon or fiber optic interconnects.
Q: Can the board be replaced without recalibrating the main power module?
A: Yes, as long as the replacement unit matches the exact part number and hardware revision, power stage gain factors are managed by the main drive controller firmware upon system boot.
Field Installation Guidelines
- Power Isolation: Disconnect and lock out all AC input power and external DC bus supplies to the drive unit. Wait a minimum of 5 minutes for internal intermediate circuit capacitors to discharge fully before removing cabinet covers.
- Electrostatic Discharge (ESD) Protection: Wear a grounded wrist strap attached to unpainted drive frame metal when handling the board to prevent static damage to sensitive semiconductor devices.
- Mounting and Connections: Align the board with mounting standoffs inside the control compartment. Fasten securing screws to ensure ground plane continuity, and verify all ribbon cables are fully locked into their retention headers.
- Routing and Shielding: Keep internal gate drive and feedback wiring clear of high-current AC output phase bars to avoid high-frequency electromagnetic interference.
