Product Details

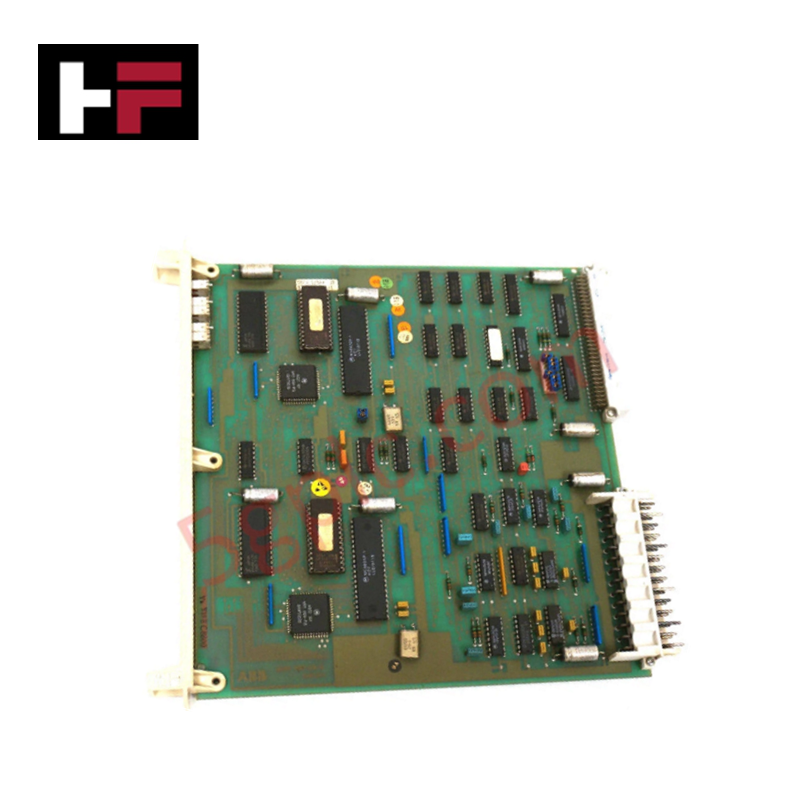

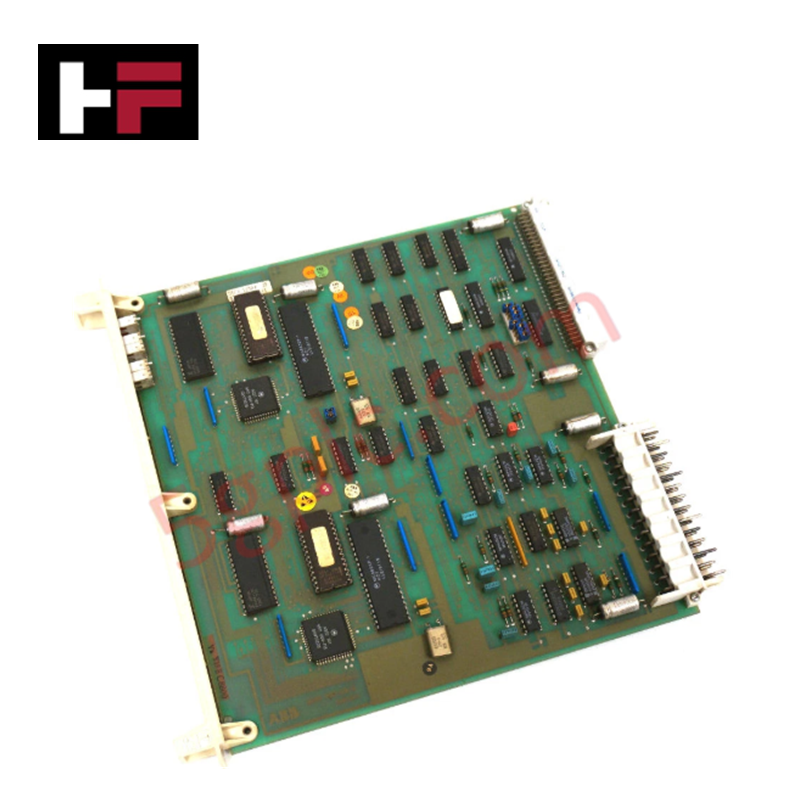

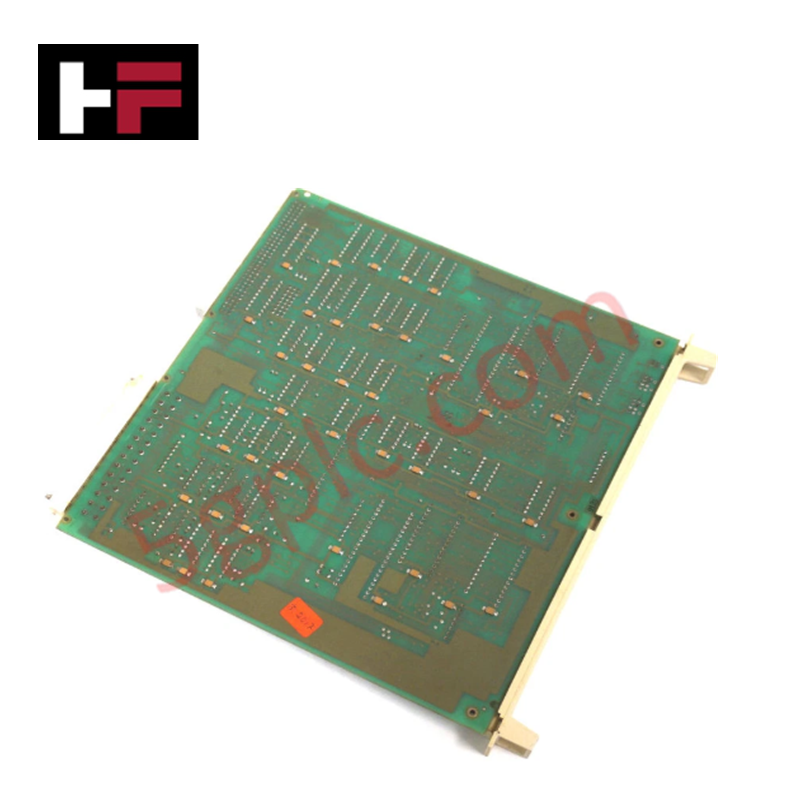

The ABB DSCA 125A 57520001-GD/1, also cataloged as the DSCA 125A Communication Board, operates as a dedicated hardware component for deterministic backplane data routing and inter-module serial interface management within ABB process control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSCA 125A |
| Part Number | 57520001-GD/1 |
| Brand | ABB |
| Product Type | Communication Boards |
| Origin | Switzerland |
| Weight | 0.4 kg |
| Dimensions | 25.4 cm x 5.1 cm x 25.4 cm |
| Operating Temp | 0 to +55 deg C |
| Power Consumption | 24 VDC (Backplane supplied) |
| System Compatibility | ABB Control Systems |
| Mounting Orientation | Vertical subrack chassis insertion |
Backplane Bus Communication Velocity and Signal Integrity
Designed for deployment in high-density automation environments, the module leverages direct backplane bus communication velocity to process critical control system telemetry without inducing transmission latencies. Integrated channel-to-channel isolation circuits prevent transient power surges and ground potential differentials from corrupting internal processor logic across the backplane bus interface. Furthermore, firmware flash compatibility allows synchronized execution of communication protocols, maintaining real-time data frame transmission stability between master processing units and peripheral field I/O racks under heavy network traffic loads.
Frequently Asked Questions
Q: Does replacing a DSCA 125A 57520001-GD/1 board require re-flashing system firmware?
A: Hardware replacement requires that the replacement board matches the flash firmware version of the existing bus controller to maintain deterministic communication protocols across the backplane interface.
Q: What are the physical slot clearance requirements for mounting the DSCA 125A board?
A: The board requires a standard card cage slot accepting physical dimensions of 25.4 cm x 5.1 cm x 25.4 cm with dedicated vertical subrack guide rails for proper backplane alignment.
Q: Can the DSCA 125A module be inserted into an active backplane while powered?
A: Backplane power to the target rack section must be de-energized prior to insertion or removal to prevent electrical arcing across backplane bus signal connectors.
Field Installation Guidelines
- De-energize the target subrack power supply chassis prior to physical installation or extraction of the DSCA 125A board.
- Wear an approved wrist strap attached to structural rack ground to prevent electrostatic discharge damage to on-board semiconductors.
- Align the module edge connector carefully with the subrack card guide rails before applying firm, even pressure to seat the board into the backplane socket.
- Tighten top and bottom faceplate retaining screws to establish mechanical stability and solid chassis ground grounding path.
- Ensure communication interface cables are routed separately from high-voltage AC lines, maintaining a minimum physical separation of 200 mm to mitigate electromagnetic interference.
