Product Details

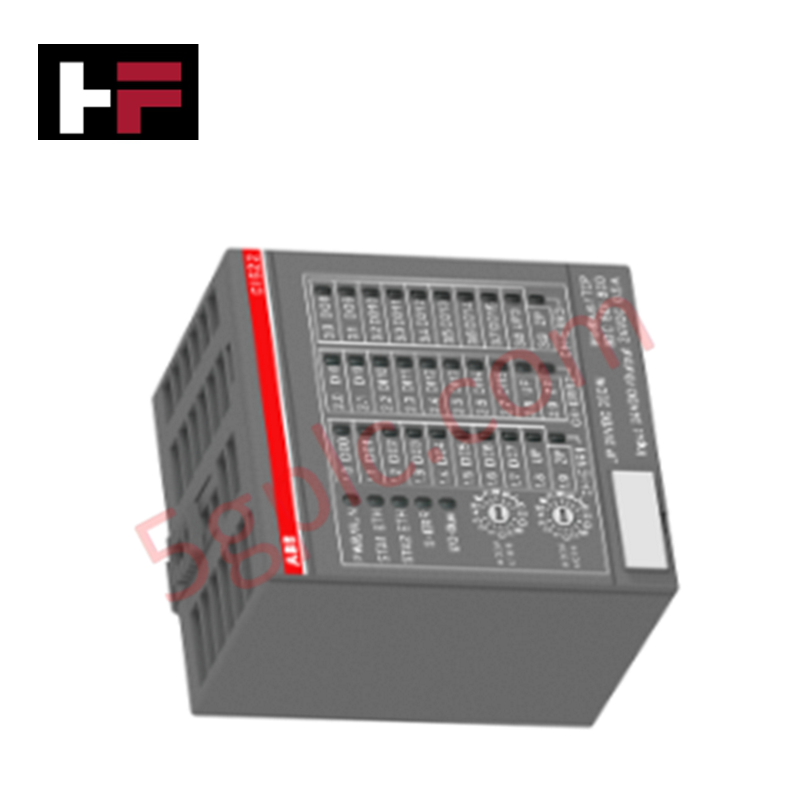

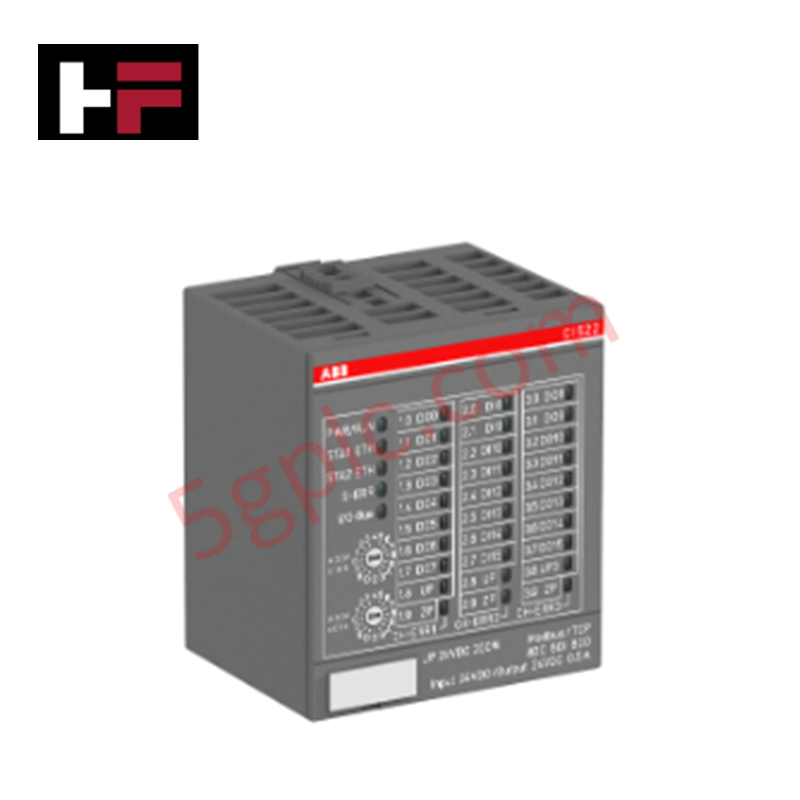

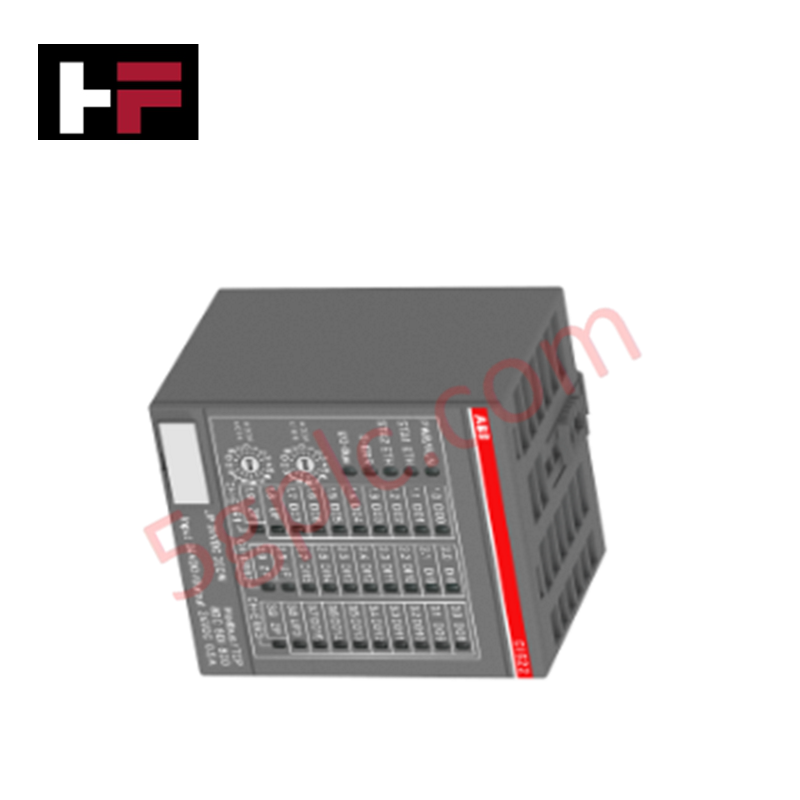

The ABB CI522-MODTCP 1SAP222200R0001, also cataloged as the CI522-MODTCP Interface Module, serves as the primary CI522-MODTCP Interface Module utilized to execute high-speed data exchange across Modbus TCP networks for S500 architectures.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CI522-MODTCP 1SAP222200R0001 |
| Brand | ABB |
| Origin | Germany |
| Weight | 0.133 kg |
| Dimensions | 62 mm D x 76 mm H x 67.5 mm W |
| Operating Temp | Standard Industrial Limits (Refer to Manual) |
| Power Consumption | Supply Voltage: 20.4 - 28.8 VDC |
| Communication Protocol | Modbus TCP Server |
| Digital Inputs | 8 DI (24 VDC, 5 mA) |
| Digital Outputs | 8 DO (24 VDC, 0.5 A) |
| Configurable Channels | 8 DI/DO (24 VDC, 0.5 A) |
| Expansion Capacity | Up to 10 additional I/O modules |
| Ingress Protection | IP20 |
Deterministic Network Profiles and I/O Density Scaling
The module handles distributed field data via embedded Ethernet interfaces running the standard Modbus TCP protocol layer. Real-time deterministic communication updates input and output memory registers synchronously with local logic execution cycles. To optimize terminal setups, the architecture accommodates local I/O density scaling up to 10 additional expansion blocks, distributing both physical signal routing and bus current distribution directly through the internal platform connections.
Frequently Asked Questions
Q: Does the CI522-MODTCP module support hot-swap capabilities for its expansion I/O blocks?
A: No, standard S500 backplane logic does not permit the removal or insertion of expansion I/O modules while the 24 VDC primary power is applied to the CI522-MODTCP. Doing so induces an immediate internal system bus fault and cuts off network communication.
Q: How do the 8 configurable DI/DO channels behave upon a loss of Modbus TCP communication?
A: When a communication timeout is registered by the network logic, channels assigned as digital outputs drop to their fail-safe state or hold last state depending on the software parameter table flashed to the module prior to commissioning.
Field Installation Guidelines
- DIN-rail Mounting Stability: Snap the module firmly onto standard 35 mm DIN rails. Ensure the rear grounding spring makes positive structural contact with an unpainted, conductive rail surface to maintain shielding effectiveness.
- Wiring Configurations: Route all 24 VDC power and I/O signal conductors through terminal blocks separate from high-voltage AC cables. Use wires matching the 0.5 A rating for the DO circuits to prevent terminal over-heating.
- Network Segment Isolation: Shielded twisted-pair (STP) Cat 5e or Cat 6 cabling must be utilized for the Modbus TCP connections. Ground the cable shielding at the switch end to minimize electromagnetic noise coupling on the differential signals.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
