Product Details

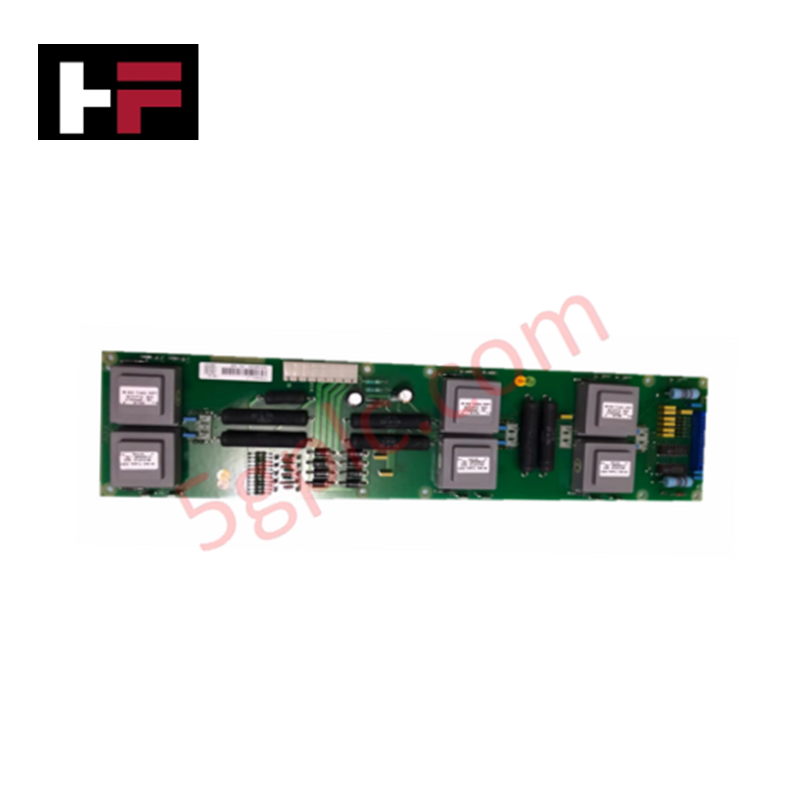

The ABB YXU 170E YT204001-JH, also cataloged as the YXU 170E Control Board, operates as a dedicated hardware component for pulse transformer drive signaling within industrial excitation and power synchronization systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | YXU 170E YT204001-JH |
| Brand | ABB |
| Origin | Sweden (SE) |
| Weight | 0.82 kg |
| Dimensions | Standard internal subrack plug-in PCB dimensions |
| Operating Temp | 0 to +60 deg C standard cabinet interior ambient |
| Power Consumption | Logic base draw matching the pulse drive circuit load |
| Functional Core | Pulse transformer interface circuit |
| Frame Size Class | Spare Parts |
| Environmental | Product outside WEEE scope |
Deterministic Subsystem Synchronization and I/O Density Scaling
The ABB YXU 170E YT204001-JH board executes rapid switching pulse distribution across dedicated thyristor or gate firing circuits. The electronic trace geometry is developed to interface directly with master controllers over Profinet / EtherNet/IP deterministic networks, limiting signal transmission jitter to fractions of a millisecond. During multi-rack I/O density scaling adjustments, the physical trace routing inside the board boundary maintains static isolation, avoiding electromagnetic cross-talk into internal backplane bus zones. This physical architectural isolation enforces constant firmware flash compatibility metrics by preventing external field gate spikes from corrupting active processing memory registers.
Frequently Asked Questions
Q: Does the YXU 170E YT204001-JH board support live online replacement (hot-swap) under load conditions?
A: No. Firing pulse circuit components feature direct high-speed gate driver links that lack solid-state current isolating barriers on the terminal pins. Input line power supply to the entire converter or rack segment must be isolated prior to removing or inserting this board to prevent damage to the pulse transformer network.
Q: How is the physical grounding verified for the pulse drive circuitry?
A: Grounding plane configuration relies on low-impedance connection fingers integrated into the subrack retention rails. The metallic frame housing must be bonded to the central cabinet earth bar to achieve nominal noise rejection ratios.
Field Installation Guidelines
- Power down and lock out all localized input line breakers before initiating board exchange operations.
- Ground yourself using a calibrated static dissipative wrist strap attached directly to unpainted chassis steel.
- Slide the control board along the mechanical alignment tracks inside the subrack housing until the edge connections mate cleanly with the internal receiver interface.
- Secure the mechanical retention fasteners to the front rail structure to prevent displacement caused by low-frequency plant vibration profiles.
