Product Details

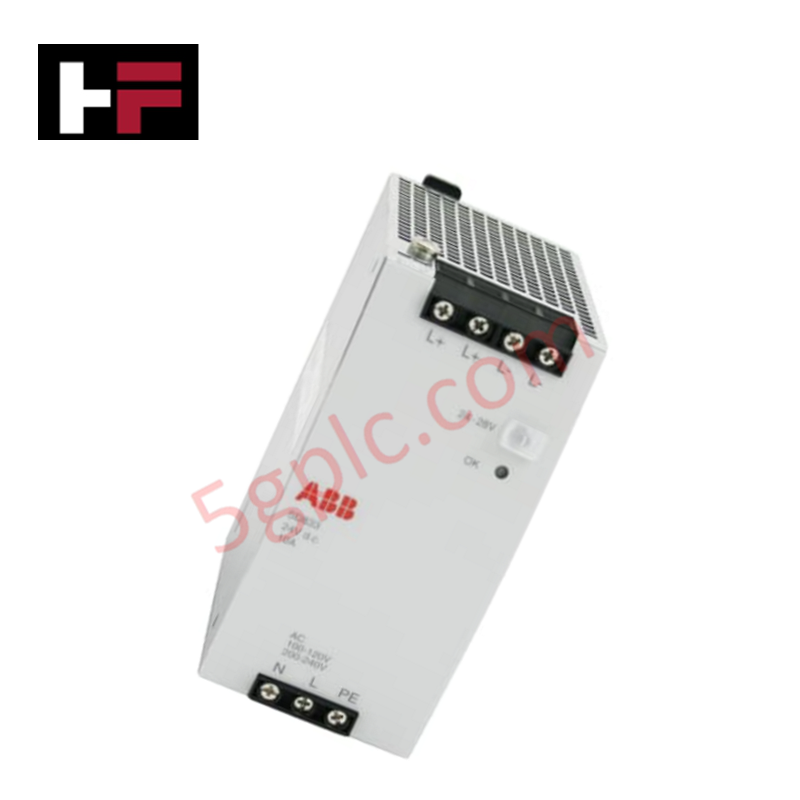

Configured for converting AC mains potential into regulated 24 VDC system power in System 800xA network racks, the ABB SD833 3BSC610066R1 (SD833 Power Supply Unit) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | SD833 (3BSC610066R1) |
| Brand | ABB |
| Origin | Sweden |
| Weight | 0.8 kg |
| Dimensions | 117 mm x 60 mm x 124 mm |
| Operating Temp | -25 to +70 deg C |
| Power Consumption | 240 W nominal output power |
| Input Voltage | 100-120 VAC / 200-240 VAC (auto-select) |
| Output Voltage | 24 VDC |
| Output Current | 10 A |
| Redundancy | Compatible with SD8xx voting unit |
| Mounting Type | DIN rail |
| Compliance | G2 compliant, EU Directive 2011/65/EU (RoHS) |
Backplane Bus Communication Velocity and Power Distribution Integrity
The SD833 power supply delivers steady 24 VDC excitation to system backplanes and field termination assemblies. Its fast dynamic response time prevents voltage drops during peak load switches, safeguarding backplane bus communication velocity and preventing CPU watchdog resets. When combined with an SD8xx diode voting unit, dual SD833 modules establish 1+1 parallel power redundancy, maximizing I/O density scaling and maintaining firmware flash compatibility across extended I/O clusters without output degradation.
Frequently Asked Questions
Q: How does the SD833 power supply handle dual input AC voltage ranges?
A: The module features an internal auto-select circuit that detects and adjusts to either 100-120 VAC or 200-240 VAC utility inputs without manual jumper configuration.
Q: Can the SD833 unit be deployed in redundant power supply configurations?
A: Yes, it is fully compatible with SD8xx voting modules to provide 1+1 redundant 24 VDC bus power.
Q: What mounting style is required for securing the SD833 unit inside a control panel?
A: The chassis mounts directly onto standard 35 mm DIN rails inside the enclosure.
Field Installation Guidelines
- Disconnect all AC mains power sources before snapping the SD833 chassis onto the DIN rail.
- Maintain a minimum vertical clearance of 50 mm above and below the module to facilitate natural thermal convection.
- Connect field PE wiring to the primary earth terminal using a low-impedance conductor prior to applying line potential.
- Verify correct output wire gauge to prevent voltage drop across high-current 10 A DC supply lines.
- Inspect input power terminals for tight mechanical clamping to prevent high-resistance thermal hot spots.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
