Product Details

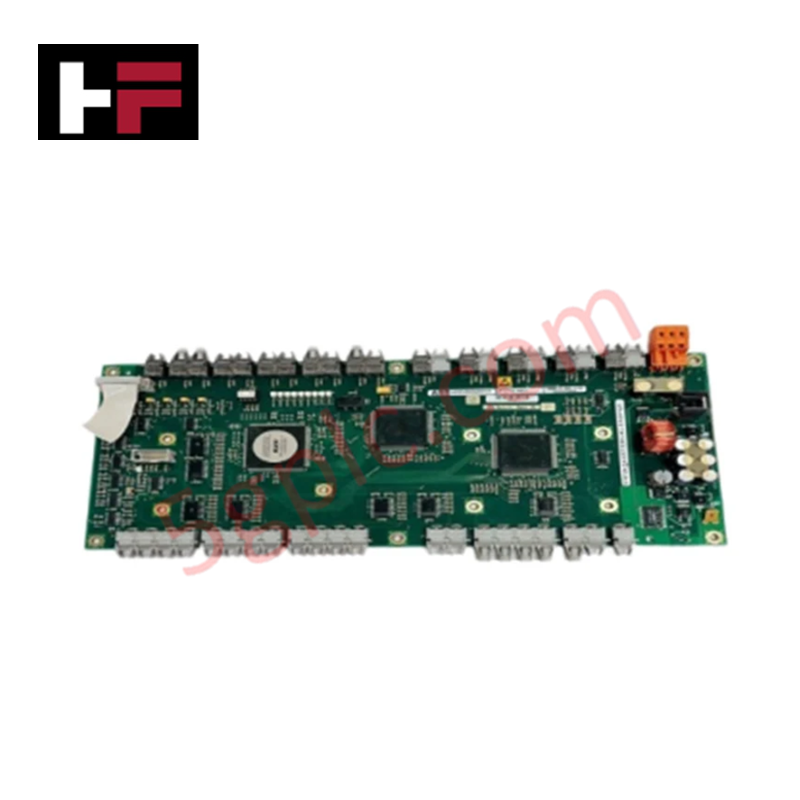

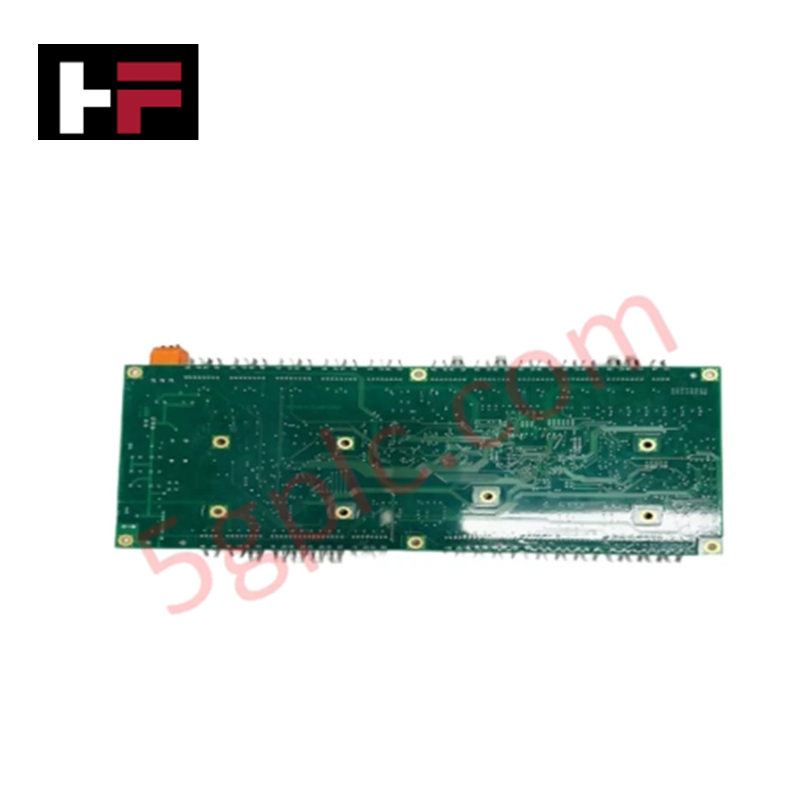

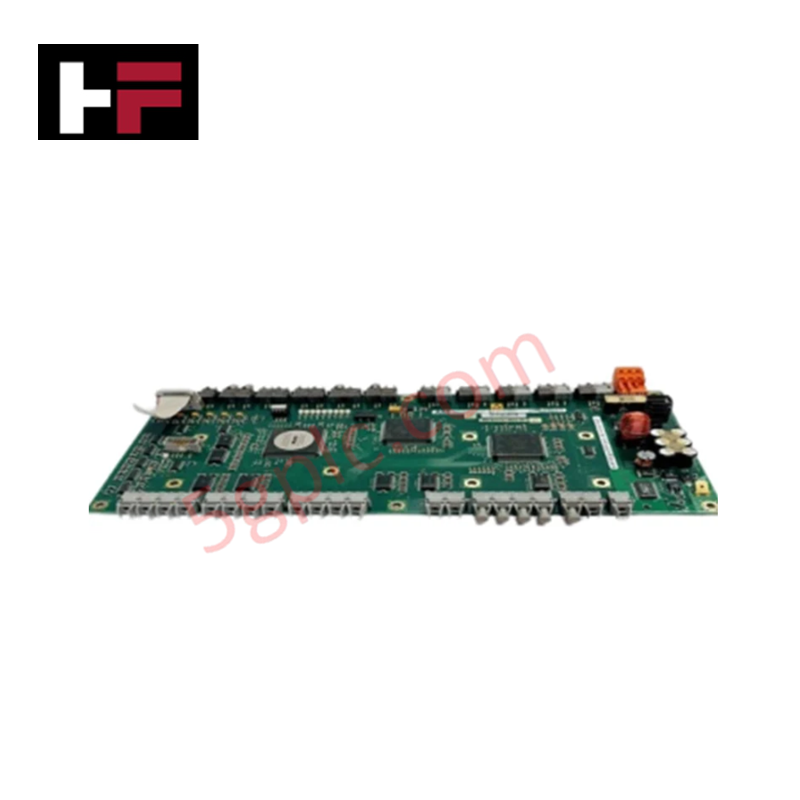

The ABB HIEE300936R0101, also cataloged as the UF C718 AE01 Main Circuit Interface Board, operates as a dedicated hardware component for signal conditioning and primary power circuit isolation within ABB AC 800F controller platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | HIEE300936R0101 UF C718 AE01 |
| Brand | ABB |
| Origin | Sweden |
| Weight | 0.20 kg |
| Dimensions | 120 mm x 80 mm x 35 mm |
| Operating Temp | -40 to 85 deg C |
| Power Consumption | Powered via 24 VDC bus input rail |
| Input Voltage Range | 24 VDC |
| Output Voltage Range | 0 to 10 VDC |
| Module Type | Main Circuit Interface / Automation Control Component |
Backplane Bus Communication Velocity and Firmware Flash Compatibility
The HIEE300936R0101 UF C718 AE01 board routes high-speed analog voltage signals without introducing propagation delay into backplane bus communication velocity across AC 800F rack nodes. The hardware circuit maintains channel isolation between high-voltage power components and low-voltage PLC logic buses. Standardized firmware flash compatibility across connected controller processors guarantees deterministic signal translation and maintains systematic I/O density scaling during dynamic drive load switching.
Frequently Asked Questions
Q: What power source supplies the electrical operating potential to the HIEE300936R0101 UFC718AE01?
A: System operation requires a nominal 24 VDC input supply connected to the board logic rail.
Q: What is the physical signal transformation executed by this interface board?
A: The board conditions 24 VDC system level inputs into isolated 0 to 10 VDC analog control outputs for internal controller signal processing.
Q: Can the board be inserted into the rack without disconnecting control power?
A: No, control power must be completely isolated prior to inserting or removing the circuit board from the rack housing to prevent electrical arc damage to edge connector contacts.
Field Installation Guidelines
- Disconnect main 24 VDC control power feeds to the AC 800F cabinet before inserting or removing the card module.
- Verify that potential across high-voltage main circuit lines has fully dissipated using a calibrated voltmeter.
- Wear an ESD wrist strap connected to functional earth to prevent static discharge damage to surface-mount analog components.
- Align board edges along module rack guides and press firmly until backplane pin connectors fully mate with the chassis socket.
- Tighten retaining screws to lock the board into position and establish a solid mechanical earth reference.
