Product Details

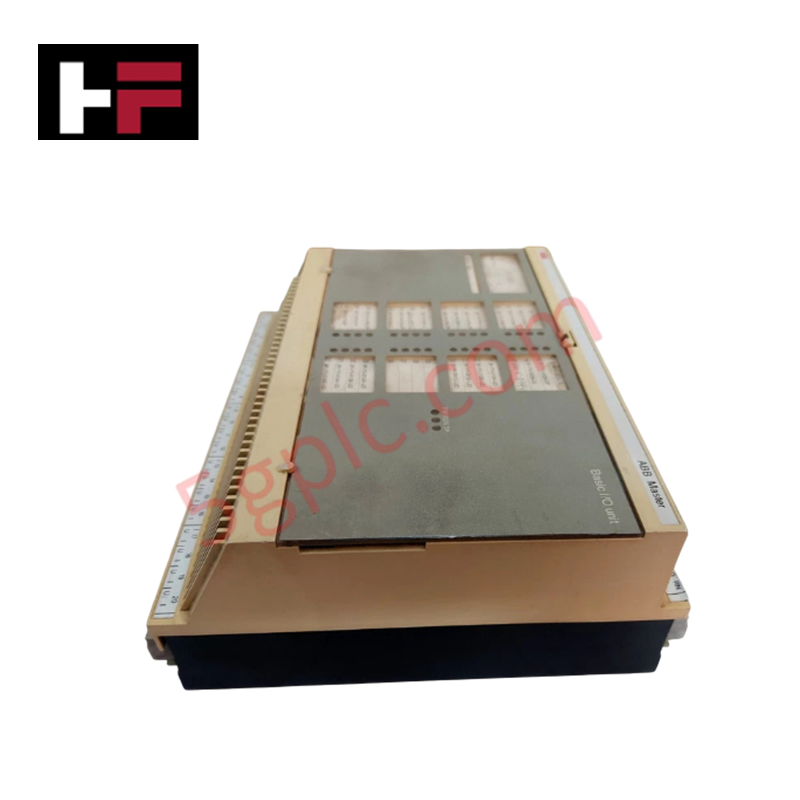

The ABB DSDX 452, also cataloged as the DSDX 452 Basic I/O Module, operates as a dedicated hardware component for 24 VDC digital signal sensing and relay contact switching within ABB control platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSDX 452 |
| Brand | ABB |
| Origin | Sweden |
| Weight | 0.85 kg |
| Dimensions | Standard Rack Module Slot |
| Operating Temp | 0 to +55 deg C |
| Power Consumption | Internal Backplane Bus Powered |
| Digital Inputs | 20 Channels, 24 VDC |
| Digital Outputs | 12 Relay Output Channels |
| Relay Isolation | Completely Separated Contacts, 24 V to 240 V AC/DC |
| Standard Relay Load | Minimum 2.5 VA or 100 mA at 24 VDC |
| Low-Voltage Relay Load ("L" Suffix) | Maximum 200 mA, Minimum 5 mA or 0.05 VA |
Deterministic Network Integration and I/O Density Scaling
The DSDX 452 module coordinates field discrete inputs and relay outputs directly with host processing units. Internal logic maintains fast backplane bus communication velocity to manage high-density I/O polling without communication delays across Profinet and EtherNet/IP deterministic networks. High channel integration enables efficient I/O density scaling within control cabinets, while onboard non-volatile memory maintains firmware flash compatibility across system updates.
Frequently Asked Questions
Q: What are the minimum loading conditions for standard relay contacts on the DSDX 452?
A: Standard relay contact channels require a minimum load of 2.5 VA or 100 mA at 24 VDC to ensure reliable contact wiping and prevent contact surface oxidation.
Q: Are the output relay channels electrically isolated from each other?
A: Yes, all 12 relay output channels feature completely separated contact sets compatible with switched voltages ranging from 24 V to 240 V AC/DC.
Q: Can the DSDX 452 module be replaced while the system rack remains powered?
A: No, system power to the subrack must be isolated prior to removing or inserting the module to prevent electrical arcs and backplane pin damage.
Field Installation Guidelines
- Isolate all field power sources and subrack main power before installing or removing the DSDX 452 module.
- Ensure field wiring for standard relay contacts meets load minimums (100 mA at 24 VDC) or utilize low-voltage "L" option cards for low-current signal switching.
- Route 24 VDC digital input cables separately from high-voltage AC relay switching wires to eliminate inductive noise coupling.
- Ground all field cable shields to a dedicated ground bus bar using short, low-impedance ground connections.
