Product Details

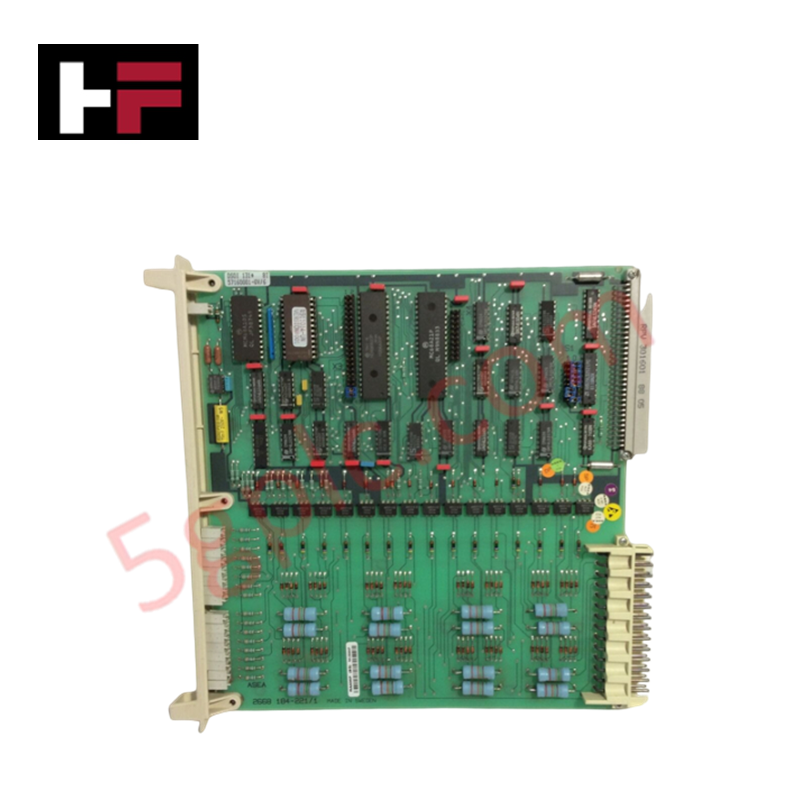

Configured for high-voltage discrete event detection in Advant Master networks, the ABB DSDI 131 57160001-GV (DSDI131 Digital Input Module) provides direct physical/electrical execution. The 16-channel subsystem uses optoisolated pathways to capture continuous 110 V AC/DC voltage states from field instrumentation and feed binary transition registers into the central processing assembly.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSDI 131 |
| Part Number | 57160001-GV |
| Brand | ABB |
| Origin | Sweden |
| Weight | 0.45 kg |
| Dimensions | 25.4 cm x 5.1 cm x 24.5 cm |
| Operating Temp | Standard industrial operating range |
| Power Consumption | Nominal backplane circuit bus load |
| Channel Count | 16 discrete input channels |
| Nominal Input Voltage | 110 V AC / DC |
| Signal Isolation | Optoisolated channel architecture |
| Scanning Profile | Event detection tracking |
I/O Density Scaling and Deterministic Integration
The DSDI131 manages high-voltage binary states across automated clusters without causing degradation to localized backplane bus communication velocity parameters. The 16-channel optoisolated architecture synchronizes directly with Profinet / EtherNet/IP deterministic networks, permitting rapid scanning sequences during millisecond-level event transition logging. This independent channel layout provides adaptable I/O density scaling profiles when mapped into adjacent communication expansion chassis. Embedded firmware flash compatibility rules ensure that signal status registers and timestamp sequences upload concurrently into core master frameworks without injecting clock jitter into the system processor task loop.
Frequently Asked Questions
Q: Does the DSDI131 module support hot-swapping under live backplane power?
A: No. The Advant Master chassis interface lacks automatic slot-level isolation switches. Baseplate logic power must be deactivated before extraction or insertion of the module to prevent electrical arcing across the rear connectors.
Q: Can the input points on the DSDI131 accept alternating and direct current simultaneously on separate channels?
A: Yes. The internal channel circuitry features standalone optoisolation blocks rated for 110 V AC or 110 V DC electrical potentials, enabling mixed current type signal acquisition across the 16-channel block.
Field Installation Guidelines
- Chassis Engagement: Align the card along the designated chassis guide tracks, pushing firmly until the rear connector block mates securely with the main backplane terminal array.
- Shielding and Conduit Allocation: Route all high-voltage 110 V field conductors through dedicated industrial wiring trays. Separate these tracks from low-voltage analog instrumentation lines to prevent inductive noise cross-talk.
- Terminal Tightening Specifications: Ensure all front-facing termination fasteners are properly secured to prevent vibration-induced contact failure in continuous operational settings.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
