Product Details

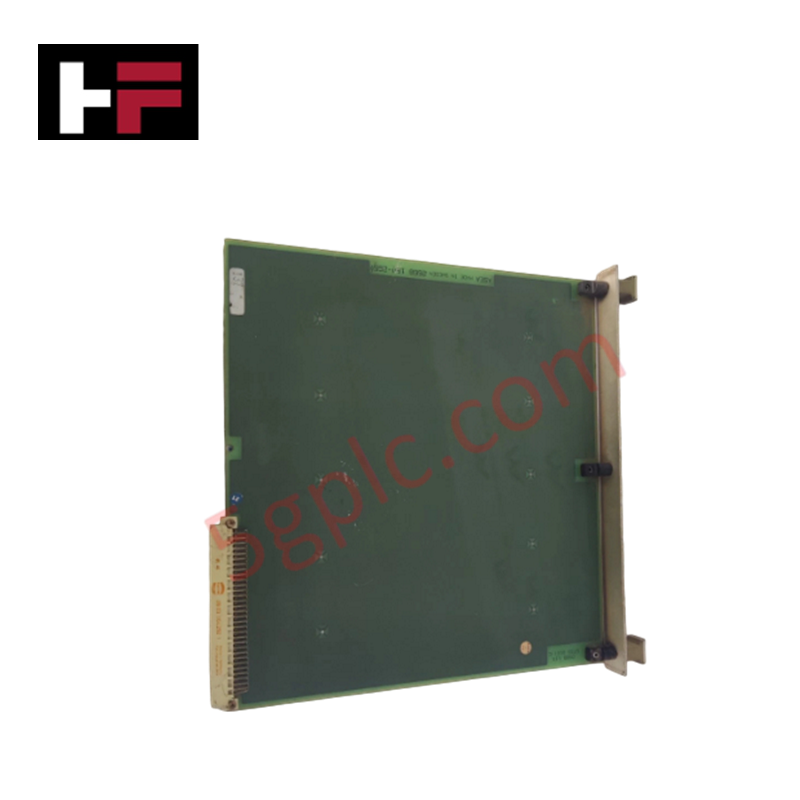

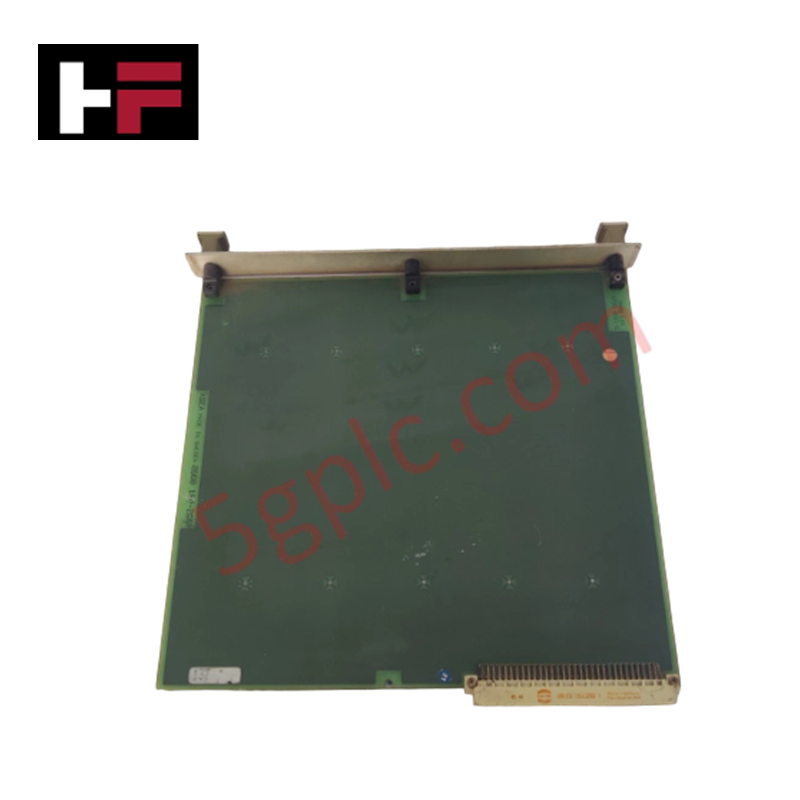

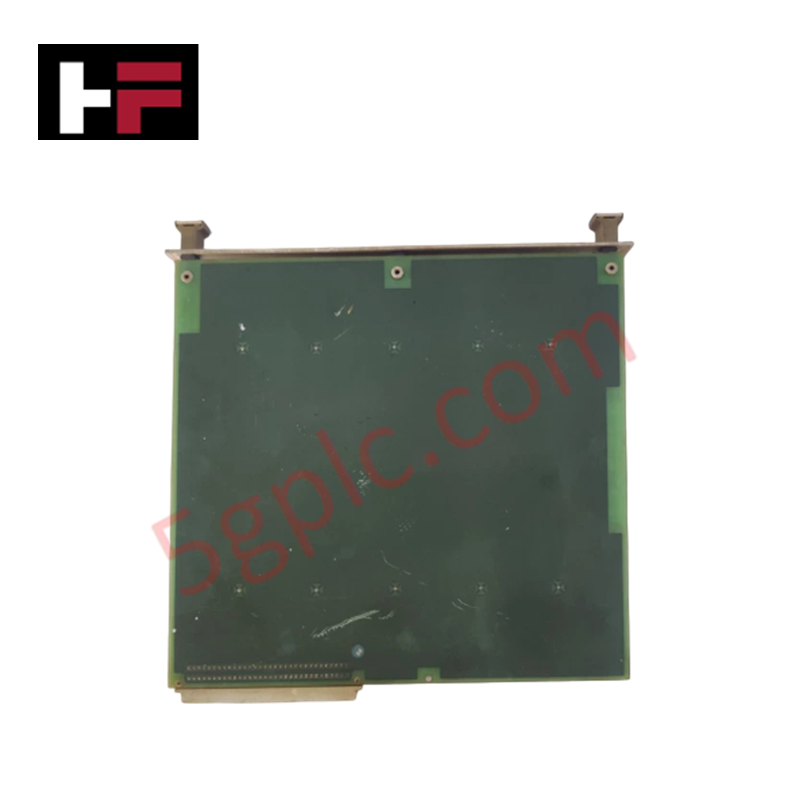

The ABB DSBB 110, also cataloged as the 57330001-E Shield Board, operates as a dedicated hardware component for electromagnetic interference attenuation and backplane signal bus shielding within Advant Master DCS MasterPiece 200/200I platforms.
Suffix Breakdown & Model Matrix
The DSBB 110 product series encompasses specific revision suffixes and part number variations designed for structural compatibility within Advant Controller system racks:
- DSBB 110 (57330001-E): Base hardware revision standard shield board configured for MasterPiece 200/200I central unit bus isolation.
- DSBB 110A (57330001-Y): Designation variant associated with specific structural assembly configurations within the Advant Master DCS system series.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSBB 110 |
| Part Number | 57330001-E |
| Brand | ABB |
| Product Type | Shield Board |
| Origin | Sweden / Germany |
| Weight | 0.28 kg |
| Dimensions | Standard MasterPiece 200/200I rack slot compatible |
| Operating Temp | 0 to +55 deg C |
| Power Consumption | Passive (0 W nominal backplane load) |
| Mounting Method | Central Unit Rack Insertion |
| System Platform | Advant Master DCS (MasterPiece 200 / 200I) |
| RoHS Compliance | Exempt (Directive 2011/65/EU, Article 2(4)) |
Industrial Control Backplane Bus Integrity
Engineered for critical industrial automation environments, the module addresses backplane bus communication velocity and high-density signal stability across the Advant Master DCS architecture. The board physically isolates adjacent processing modules to eliminate high-frequency transient noise, cross-talk, and stray electromagnetic interference (EMI) inside the central rack frame. By establishing low-impedance ground reference paths between MasterPiece 200/200I central processing units and adjacent I/O communication cards, the unit secures high signal fidelity and deterministic bus clock integrity across multi-slot backplanes.
Frequently Asked Questions
Q: What physical grounding procedures must be verified during installation of the DSBB 110?
A: Ensure that the rack guide rails and structural retaining screws are cleanly torqued to maintain continuous low-impedance metal-to-metal galvanic contact between the board's shielding plane and the main rack frame ground chassis.
Q: Does the DSBB 110 draw operating current from the backplane power supply rail?
A: No. The DSBB 110 operates as a passive EMI shielding and signal stabilization component and draws no operational DC current from the central rack power bus.
Q: Is the DSBB 110 hot-swappable while the MasterPiece 200 central unit is powered?
A: Insertion or removal should only be executed when power to the specific rack section is de-energized or in accordance with standard Advant DCS maintenance protocols to prevent physical damage to adjacent active backplane pins.
Field Installation Guidelines
- De-energize the central rack subsystem power supply prior to inserting or removing the DSBB 110 module from the MasterPiece 200/200I frame.
- Inspect the rack guide slot for dust, debris, or mechanical obstruction before alignment.
- Slide the shield board along the card guide channels until the grounding clips engage firmly with the chassis backplane guide structure.
- Fasten all panel retaining screws to the specified rack torque to establish direct, permanent chassis ground grounding path.
- Verify that signal cabling and field wiring harnesses are routed separately from high-voltage AC conductors, maintaining minimum 200 mm clearance to prevent secondary noise coupling.
