Product Details

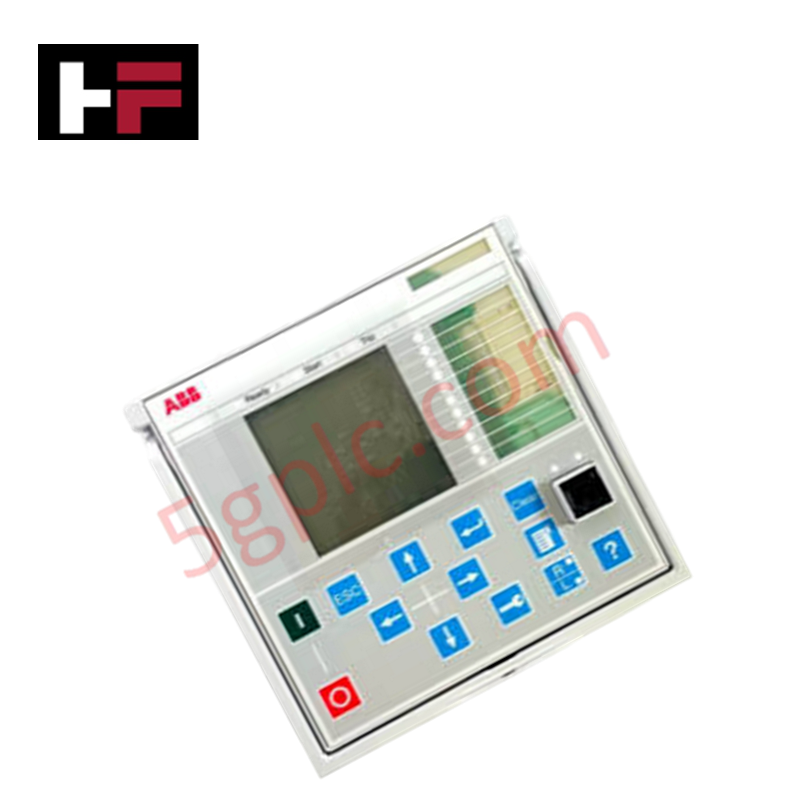

Configured for structural housing enclosure execution in industrial control platforms, the ABB DIS0012 2RCA025340A0001M (DIS0012 Front Panel) provides direct physical/electrical execution. The aluminium front panel assembly serves as a protective front fascia and mechanical interface, isolating internal LHMI display electronics and circuit assemblies from environmental contaminants and mechanical stress within cabinet cutouts.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DIS0012 2RCA025340A0001M |
| Brand | ABB |
| Series | LHMI Aluminium Front Series |
| Material | Anodized Aluminium |
| Dimensions | 12.6 cm x 12.4 cm x 2.2 cm |
| Weight | 0.78 kg |
| Operating Temp | -20 deg C to +65 deg C |
| Power Consumption | Passive mechanical component (0 W) |
| System Compatibility | ABB Relion Protection Relays / LHMI Units |
| Origin | Global Manufacturing Facilities |
Deterministic Network Routing & I/O Density Scaling
The structural enclosure framework supports backplane bus communication velocity and deterministic network architecture by providing rigid physical containment for underlying control electronics. The precision-machined aluminium chassis supports target I/O density scaling and alignment, preventing mechanical strain on internal connectors during rack insertion. Electrostatic discharge (ESD) protection and stray field mitigation are maintained via conductive ground path continuity across the panel framework.
Frequently Asked Questions
Q: Does the DIS0012 2RCA025340A0001M require internal wiring or power connections?
A: No. The front panel functions purely as a passive physical housing and structural fascia component, drawing 0 W of electrical power.
Q: How does the panel maintain EMI protection for underlying display electronics?
A: The metal construction forms a continuous conductive barrier that routes high-frequency surface currents to cabinet frame ground when fastened with conductive screws.
Q: Can the front panel be hot-swapped while the host relay or controller is powered?
A: Physical removal of the panel requires unfastening enclosure hardware; power to the host device should be isolated to prevent accidental contact with internal live components.
Field Installation Guidelines
Observe the following field procedures during panel assembly and chassis integration:
- Inspection: Inspect the aluminium front panel for mechanical deformation, thread damage, or surface scratches before panel mounting.
- Frame Alignment: Align the panel housing flush against the sub-rack or door cutout mounting holes, ensuring internal gaskets sit flat against the panel perimeter.
- Fastener Torque: Insert retaining screws and tighten in a cross-pattern to 0.8 N-m to ensure uniform compression and mechanical stability under industrial vibration.
- Ground Validation: Verify low-resistance bonding continuity between the panel chassis and the protective earthing (PE) bus using a low-resistance ohmmeter.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
