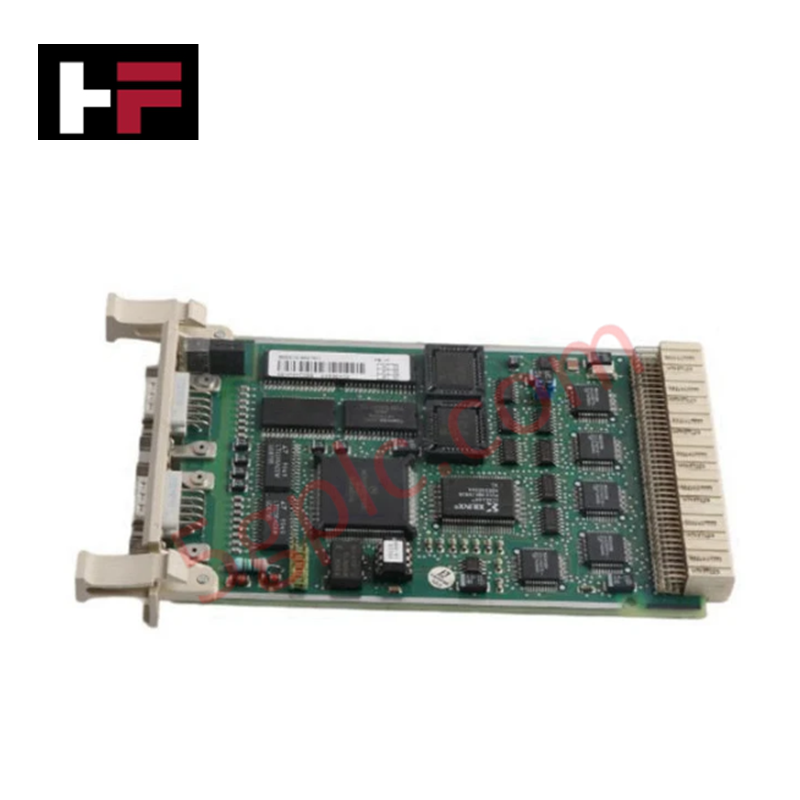

ABB 1KHW001006P0001 I/O Module Programmable Logic Controllers

The ABB 1KHW001006P0001, also cataloged as the 1KHW001006P0001 I/O Module, operates as a dedicated hardware component for field signal interface routing and system data acquisition within P7LC Control System platforms. Designed as a programmable logic controller interface assembly, this unit processes discrete and analog field signals across dedicated system channels.

Hardware Specifications

Backplane Bus Interfacing and Deterministic Communications

The 1KHW001006P0001 module interfaces directly with the central backplane bus to establish deterministic networks across expansion racks. High-density edge connectors ensure constant backplane bus communication velocity and prevent signal latencies during I/O scan cycles. Integrated firmware flash compatibility ensures real-time protocol execution and synchronized processing between field sensors and the main controller.

Frequently Asked Questions

Q: How is the 1KHW001006P0001 module interfaced within the P7LC rack assembly?

A: The module connects via multi-pin backplane edge connectors that route signal data and power directly from the host sub-rack chassis.

Q: What environmental temperature limits apply during module operation?

A: Operating parameters require maintaining ambient enclosure temperatures between 0 and +60 deg C with passive convective ventilation.

Q: Does module replacement require re-flashing control firmware?

A: Hardware configuration and firmware flash compatibility are checked automatically by the central controller upon initialization during rack power-up.

Field Installation Guidelines

1. Disconnect main power to the P7LC sub-rack chassis prior to inserting or removing the I/O module.
2. Put on an ESD-grounded wrist strap connected to the enclosure frame ground before handling the 0.320 kg module circuit assembly.
3. Align the module edge guide channels with the designated slot tracks inside the chassis enclosure.
4. Slide the unit inward firmly until the rear backplane connectors engage fully into the bus motherboard socket.
5. Tighten all top and bottom retaining screws on the front panel to ensure continuous chassis grounding and mechanical stability under industrial vibration.
