Product Details
Overview

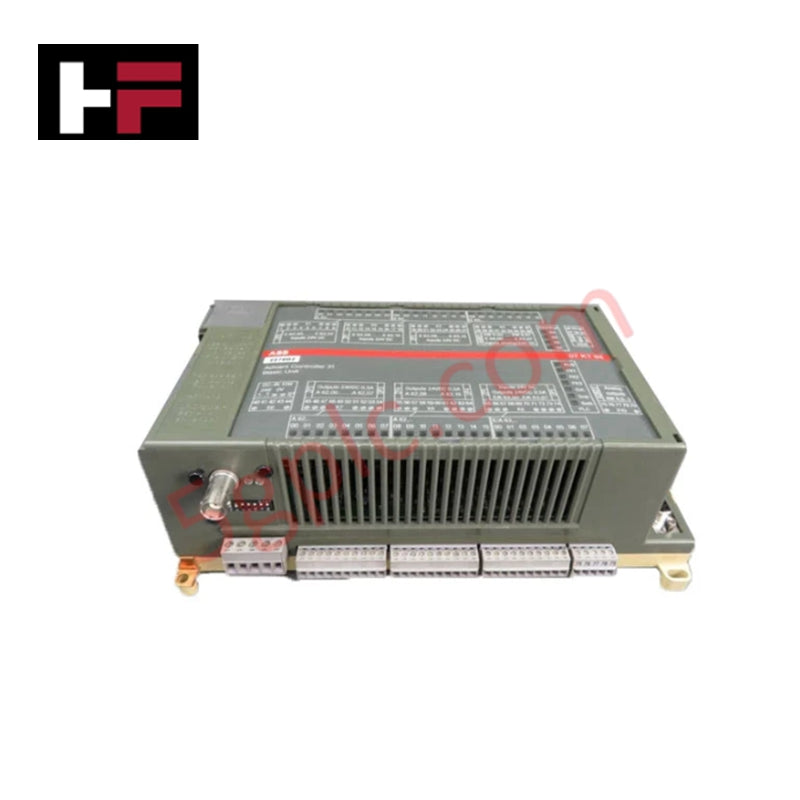

The 07 KT 94 (GJR5252100R0161) from ABB is a fundamental unit of the Advant Controller 31 series, capable of functioning as a bus master, slave, or standalone PLC. Designed for reliability and high performance, it operates on a 24 V DC power supply and supports configurable analog and digital I/O for versatile process control applications.
Technical Specifications
-
Model: 07 KT 94
-
Part Number: GJR5252100R0161
-
Manufacturer: ABB
-
Product Type: Basic Unit / PLC Module
-
User Program Memory: 240 kB
-
User Data Memory: 120 kB
-
Flash EPROM: 512 kB
-
RAM: 2 MB
-
Binary Flags: 8192
-
Word Flags: 8192
-
Double Word Flags: 1024
Digital Inputs
-
Channels: 24 in 3 groups of 8
-
Voltage Range: –30 V to +5 V (logic 0), +13 V to +30 V (logic 1)
-
Input Current: 7 mA at 24 V
-
Signal Delay: 7 ms (configurable to 1 ms)
-
Max Cable Length: 600 m (unshielded), 1000 m (shielded)
Digital Outputs
-
Channels: 16 transistor outputs in 2 groups of 8
-
Output Current: 500 mA nominal, 625 mA max
-
Switching Frequency: 0.5 Hz inductive, 11 Hz lamp load
-
Max Cable Length: 400 m
Digital I/O
-
Channels: 8 in 1 group
-
Input Voltage: –6 V to +5 V (logic 0), +13 V to +30 V (logic 1)
-
Signal Delay: 7 ms (configurable to 1 ms)
Analog Inputs
-
Channels: 8 configurable channels
-
Input Types: 0–10 V, ±10 V, 0–20 mA, Pt100
-
Resolution: 12-bit (voltage/current), 10–11 bit (Pt100)
-
Input Impedance: >100 kΩ (voltage), 330 Ω (current)
-
Conversion Cycle: 1 ms per voltage/current channel, 50 ms per Pt100
Analog Outputs
-
Channels: 4
-
Output Types: ±10 V, 0–20 mA, 4–20 mA
-
Resolution: 12-bit
-
Load Capability: ±3 mA (voltage), 0–500 Ω (current)
-
Conversion Cycle: 1 ms per channel
Interfaces
-
Serial Ports: 2 × EIA RS-232 (COM1, COM2), 9600 baud
-
CS31 Bus: EIA RS485, supports up to 31 remote modules
High-Speed Counter
-
Operating Modes: 7
-
Counting Range: –32768 to +32767
-
Max Frequency: 50 kHz
Power Supply
-
Voltage: 24 V DC
-
Current Consumption: Max 0.35 A
Mechanical Data
-
Dimensions: 240 × 140 × 85 mm
-
Weight: 1.6 kg
Key Features
-
Configurable analog and digital I/O for versatile control
-
High-speed processing with seven-mode counter for advanced counting
-
SmartMedia card support for program and data storage
-
Compatible with Advant Controller 31 series as master, slave, or standalone
Applications
-
PLC control for manufacturing and process industries
-
Real-time signal acquisition and processing
-
Integration with distributed control systems
-
Use in standalone or networked automation setups
FAQ
Q1: What is the primary function of the 07KT94 unit?
A1: It functions as a master, slave, or standalone PLC with configurable analog/digital I/O.
Q2: How fast is the analog input conversion?
A2: Voltage/current channels convert in 1 ms, Pt100 channels in 50 ms.
Q3: What communication interfaces are available?
A3: Two RS-232 serial ports and a CS31 RS-485 bus supporting up to 31 modules.
Q4: What is the maximum cable length for digital inputs?
A4: Up to 600 m unshielded or 1000 m shielded.
Q5: Does it support SmartMedia for storage?
A5: Yes, it can store programs and data using a SmartMedia card.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
