Product Details
Product Description

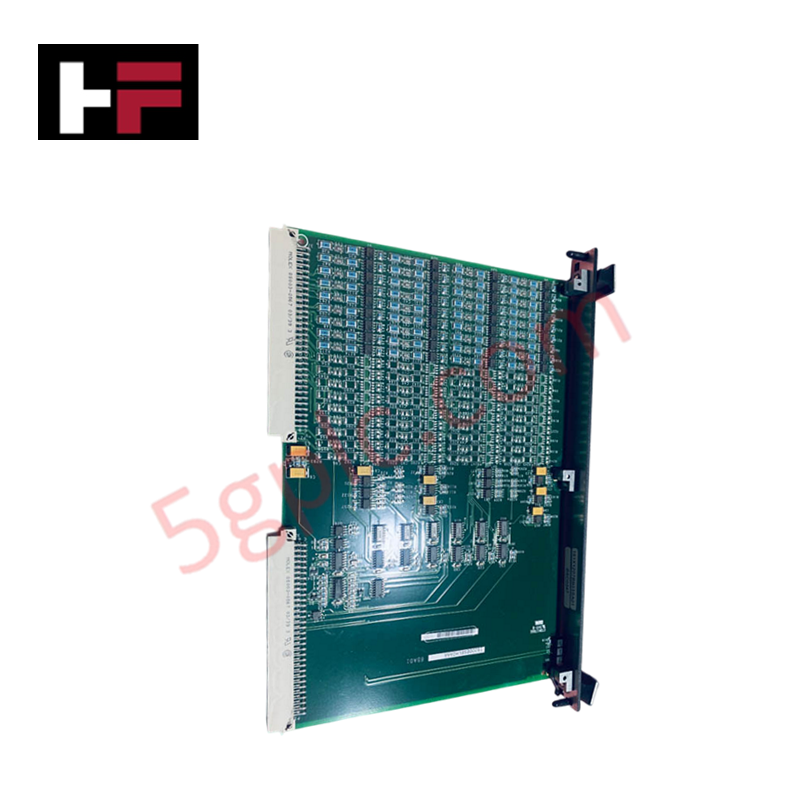

The IS200ESELH2AAA / IS200ESELH2A Exciter Selector Board is a General Electric component designed for the EX2100 excitation control system. This printed circuit board manages gate pulse signals and provides redundancy for bridge drivers, ensuring reliable excitation control in turbine systems. Built with logic‑level pulse technology and conforming to GE’s industrial standards, the ESEL board is a critical part of excitation signal management.
Technical Specifications
-
Manufacturer: GE Industrial Systems
-
Series: EX2100 Excitation Control System
-
Product Type: Exciter Selector Board (PCB)
-
Model Number: IS200ESELH2AAA / IS200ESELH2A
-
Board Acronym: ESEL
-
Board Function: Exciter Selector Board for gate pulse management
-
Gate Pulse Signals: 6 channels
-
Pulse Signal Type: Logic level
-
Redundancy Level: Supports 3 bridge drivers
-
Country of Manufacture: USA
Application Scenarios
This board is typically used in:
-
EX2100 excitation systems requiring gate pulse signal management
-
Turbine control platforms where redundancy and reliability are critical
-
Industrial power generation environments needing robust excitation control
FAQ
Q: What is the primary function of the IS200ESELH2A board? A: It manages exciter gate pulse signals and provides redundancy for bridge drivers.
Q: How many gate pulse signals does the board support? A: It supports six logic‑level gate pulse signals.
Q: What redundancy level is provided? A: The board supports three bridge drivers for redundancy.
Q: What system is this board designed for? A: It is designed for the GE EX2100 excitation control system.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
