Product Details

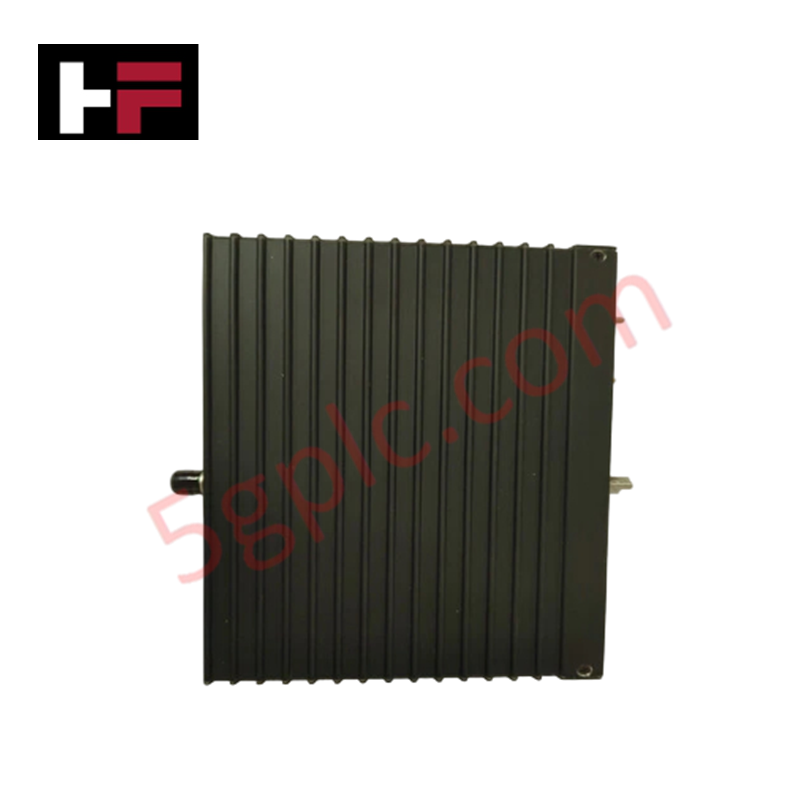

Configured for high-speed algorithmic execution in Tricon safety system platforms, the Triconex 3382 (3382 Main Processor Module) provides direct physical/electrical execution of safety control logic through a modular processor architecture.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3382 |
| Brand | Triconex |
| Origin | United States |
| Weight | 1.4 kg |
| Dimensions | 4.5 cm x 18.8 cm x 20.8 cm |
| Operating Temp | Industrial standard ranges |
| Power Consumption | Standard DC power input |
| Architecture | Triple Modular Redundancy (TMR) |
| Safety Rating | SIL3 (IEC 61508) |
High-Reliability Safety Control (SIS)
The Triconex 3382 maintains system integrity through the implementation of triple modular redundancy (TMR) 2oo3 architecture. By distributing processing tasks across three independent modules, the system performs continuous majority voting to identify and isolate faults in real time. The module is engineered to ensure fail-safe state execution, whereby the processor detects internal diagnostic discrepancies and transitions the affected loop to a safe state without manual intervention. Galvanic isolation is integrated into the communication and backplane interfaces to minimize the risk of signal corruption and to maintain the physical separation required for SIL3 certification compliance.
Frequently Asked Questions
Q: Does the 3382 module support hot-swapping while the system remains in run mode?
A: Yes, the module supports hot-swapping within the Tricon chassis. Replacing an active module in a TMR configuration does not interrupt the primary process, provided the chassis power supply is maintained and the slot assignment is correct.
Q: How is synchronization maintained between redundant 3382 modules?
A: Synchronization is facilitated via the high-speed TriBus backplane communication. Modules continuously exchange state data to ensure all three processors execute the identical scan cycle and compare output calculations prior to final signal assertion.
Field Installation Guidelines
- Ensure the chassis slot is clear of debris before inserting the module to prevent backplane connector misalignment.
- Align the module with the chassis guide rails and apply firm pressure to ensure full engagement of the rear pins.
- Tighten the captive retaining screws on the front panel to provide mechanical stability against cabinet vibration.
- Verify that the shield grounding of the incoming communication cabling is consistent with the system ground bus to prevent electromagnetic interference.
- Perform a system diagnostic check via the workstation to confirm that the new module is participating in the TMR voting logic prior to full process loading.
