Product Details

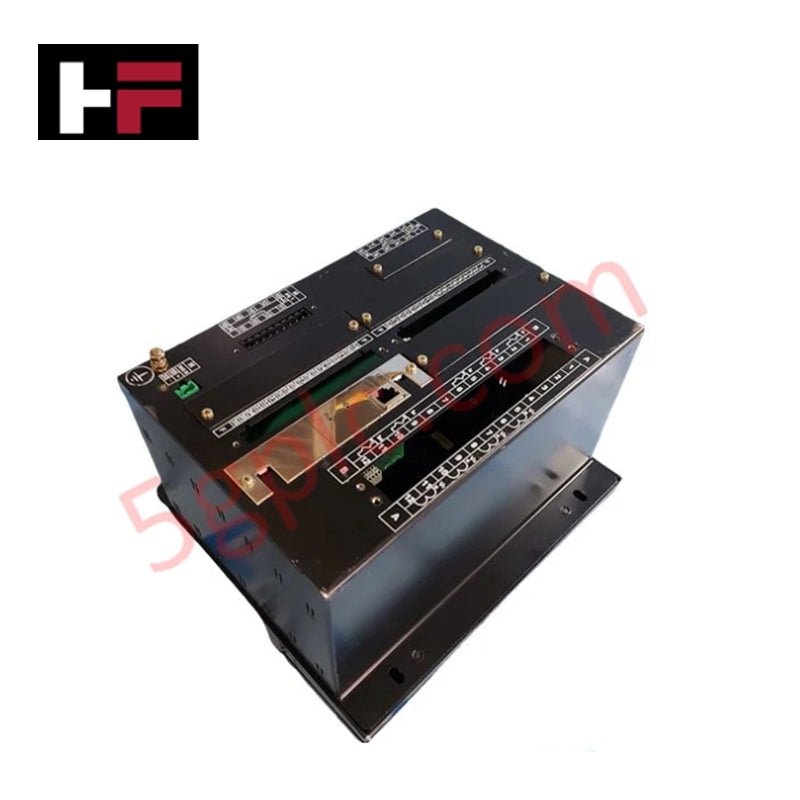

Configured for feeder protection and fault isolation in electrical power distribution systems, the GE Multilin F650BFEF2G0HIC (F650 Feeder Protection Relay) provides direct physical/electrical execution of overcurrent and directional protection logic.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | F650BFEF2G0HIC |
| Brand | GE Multilin |
| Origin | USA |
| Dimensions | Standard relay housing |
| Operating Temp | Standard industrial ambient |
| Sensitivity (50SG) | 0.005 A to 16.0 A |
| Sensitivity (50IG) | 0.005 A to 0.400 A |
| Directional Logic | 67P, 67N, 67G |
Deterministic Industrial Control Networks
The F650 series integrates advanced relaying functions with deterministic communication capabilities required for modern distribution automation. The relay supports integration into high-speed industrial networks, ensuring backplane bus communication velocity is optimized for sub-millisecond fault response times. Firmware flash compatibility is managed via the Multilin support suite; verify the relay's internal logic version against the master control system's requirements to ensure consistent I/O density scaling and event reporting. The relay architecture utilizes fundamental phasor extraction to filter out harmonic distortion, ensuring accurate execution of trip algorithms even in electrically noisy substation environments.
Frequently Asked Questions
Q: Does the relay support hot-swappable module replacement while the feeder is energized?
A: No. Any hardware interaction or module replacement must be performed while the relay is de-energized. Removing the unit while energized will result in loss of protection and may trigger unintended alarms in the Supervisory Control and Data Acquisition (SCADA) system.
Q: How is the characteristic angle accuracy maintained during directional fault detection?
A: The relay maintains a characteristic angle accuracy of ±2 deg for currents exceeding 0.1 A and voltages above 5 Vac. This precision is maintained by the relay's internal processing of quadrature voltage polarizing signals and measured current inputs, ensuring stable forward/reverse discrimination.
Field Installation Guidelines
- Current Transformer (CT) Connections: Ensure all CT inputs (1 A or 5 A) are properly wired to the terminal blocks. Verify that CT circuits are never opened while the primary circuit is energized to prevent dangerous high-voltage build-up.
- Polarizing Voltage Wiring: For directional units (67P/67N/67G), ensure the polarizing voltage (VN or phase-to-phase quadrature) is correctly phased relative to the current inputs to ensure correct directional determination.
- Grounding: Terminate the relay chassis to the substation earth-ground bus using a low-impedance conductor. Proper grounding is necessary to ensure surge voltage protection limits are not exceeded during fault events.
- Setting Verification: Prior to commissioning, perform an injection test to confirm pickup levels for both the sensitive ground (50SG) and isolated ground (50IG) elements, ensuring the relay operates within the specified accuracy of ±1.5% of reading.
