Product Details

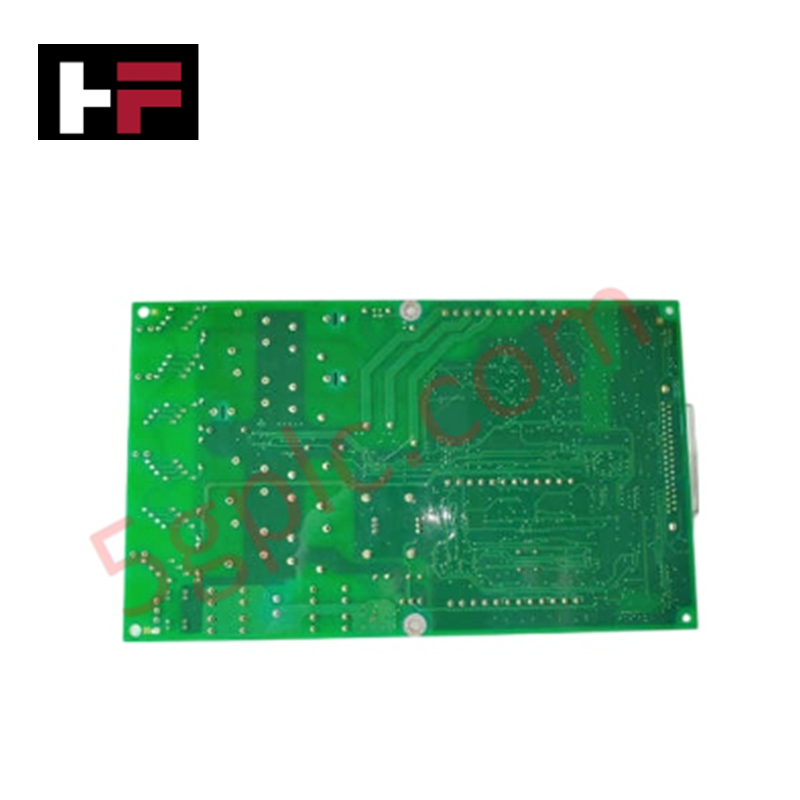

The GE IS200AEADH1ADA, also cataloged as the IS200DEAD Input/Output Grid Fork Board, operates as a dedicated hardware component for signal processing and grid communication routing within GE Mark VIe Wind platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS200AEADH1ADA |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.50 kg |
| Dimensions | 150 x 100 x 25 mm |
| Operating Temp | -30 to 65 deg C |
| Power Consumption | 7 W |
| System Series | Mark VIe Wind |
| Functional Acronym | AEAD |
| Board Protection | Conformal coating |
| Primary Application | Turbine and Balance-of-Plant (BoP) signal interface |
| Mounting Orientation | Vertical or horizontal rack panel mounting |
Backplane Bus Communication Velocity and Firmware Flash Compatibility
The IS200AEADH1ADA board coordinates signal conditioning and bus routing between internal rack controllers and field grid interfaces. High-speed line drivers maintain deterministic backplane bus communication velocity across distribution nodes during active real-time processing cycles. Native system integration guarantees firmware flash compatibility across connected Mark VIe controller cores, maintaining bit-level synchronization and preventing frame dropouts during heavy network traffic.
Frequently Asked Questions
Q: What environmental protection features are included on the IS200AEADH1ADA board assembly?
A: The printed circuit assembly features factory-applied conformal coating to prevent degradation from atmospheric humidity, fine particulate dust, and airborne contaminants.
Q: Can the IS200AEADH1ADA be used outside of the Mark VIe Wind turbine platform?
A: The board is configured specifically for signal levels and bus structures defined within GE Mark VIe Wind and associated Balance-of-Plant (BoP) architectures.
Q: How is physical chassis grounding achieved for noise attenuation?
A: Earth grounding is established directly through conductive mounting screw pads on the PCB frame, linking the board shield to the cabinet grounding bar.
Field Installation Guidelines
Ensure all system power feeds to the targeted rack panel are completely de-energized prior to installing or removing the board. Wear a properly grounded ESD wrist strap throughout handling to prevent static discharge to onboard surface-mount components. Align the board with its panel mounting standoffs and secure using metallic hardware to establish a solid ground return path. Verify all signal plug connections are firmly seated and locked before re-applying main power.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
