Product Details

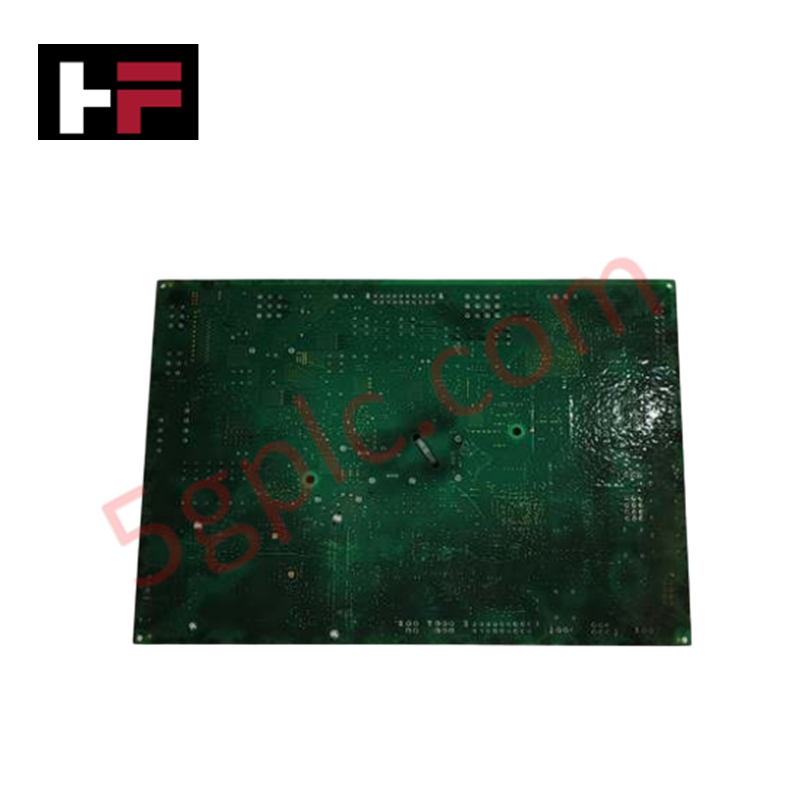

The GE IS215WEPAH2BD, also cataloged as the IS215WEPA Printed Circuit Board, operates as a dedicated hardware component for pitch axis control execution and serial communication management within GE Mark VIe platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IS215WEPAH2BD |
| Brand | General Electric |
| Origin | USA |
| Weight | 0.8 kg |
| Dimensions | 178 x 125 x 35 mm |
| Operating Temp | -30 to 65 deg C |
| Power Consumption | 12 W |
| System Series | Mark VIe |
| Power Supply Rating | 125 VDC |
| Serial Ports | 3 (COM1, COM2, micro-miniature 9-pin socket D-connector) |
| Network Interface | 10BaseT/AUI Ethernet connector |
| Onboard Connectors | 2 x Female Plug Connectors |
| Surge Protection | 4 x Metal Oxide Varistors (MOVs) |
| Software Frame Rates | 10 ms, 20 ms, and 40 ms |
| Storage Temperature | -40 to 70 deg C |
| Relative Humidity | 10 to 95%, non-condensing |
| Shock Rating | Maximum 10 G (non-operating) |
Backplane Bus Communication Velocity and Firmware Flash Compatibility
The IS215WEPAH2BD executes real-time pitch control algorithms while coordinating data traffic over its 10BaseT Ethernet and serial interfaces. Synchronized instruction cycles operate at selectable software frame rates of 10 ms, 20 ms, and 40 ms to preserve backplane bus communication velocity across control racks. Native firmware flash compatibility guarantees deterministic software distribution without requiring physical board modifications or external flash programmers. Four onboard Metal Oxide Varistors (MOVs) provide clamping against high-voltage transient spikes on incoming power lines.
Frequently Asked Questions
Q: What serial interface configurations are supported on the IS215WEPAH2BD board?
A: The board includes three COM ports: COM1, COM2, and a dedicated micro-miniature 9-pin female socket D-connector.
Q: How are power transients suppressed on the 125 VDC supply input?
A: Four onboard Metal Oxide Varistors (MOVs) absorb voltage surges and clamp line transients to prevent damage to internal processing logic.
Q: What execution frame rates are supported by the onboard processing software?
A: The board software logic executes deterministically at configurable task frame rates of 10 ms, 20 ms, or 40 ms.
Field Installation Guidelines
Disconnect all 125 VDC power feeds and field I/O connections prior to board servicing or replacement. Attach a grounded ESD wrist strap to an unpainted chassis point to avoid electrostatic damage to onboard surface-mount logic. Slide the PCB into its designated rack slot guides, press firmly to engage the backplane plugs, and tighten all panel retaining screws to ensure continuous ground bonding. Ensure communication cables connected to the COM ports and 10BaseT/AUI interface utilize shielded cabling with drain wires tied to enclosure earth.
