Product Details

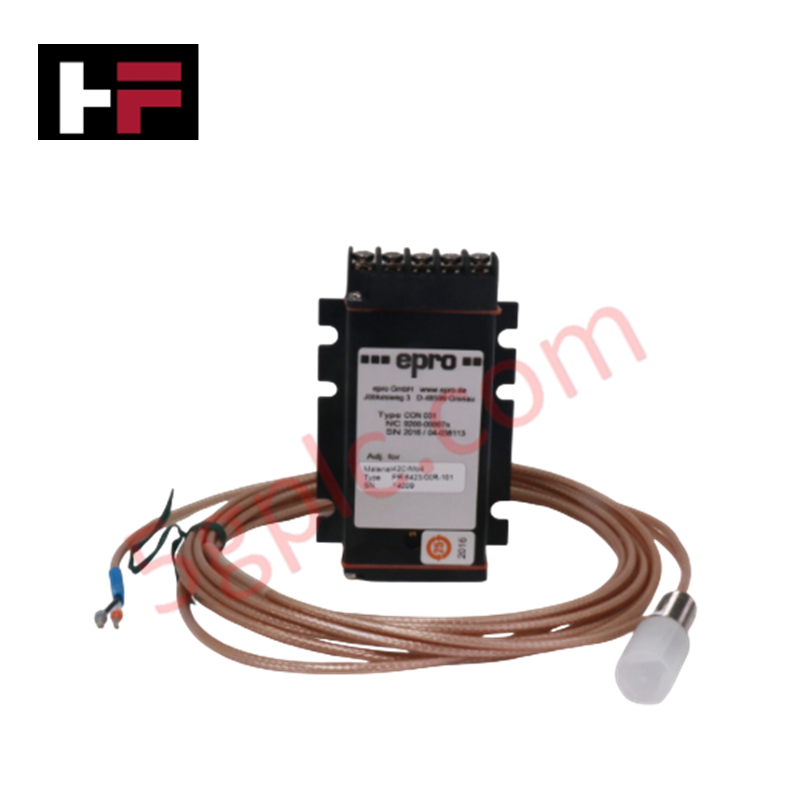

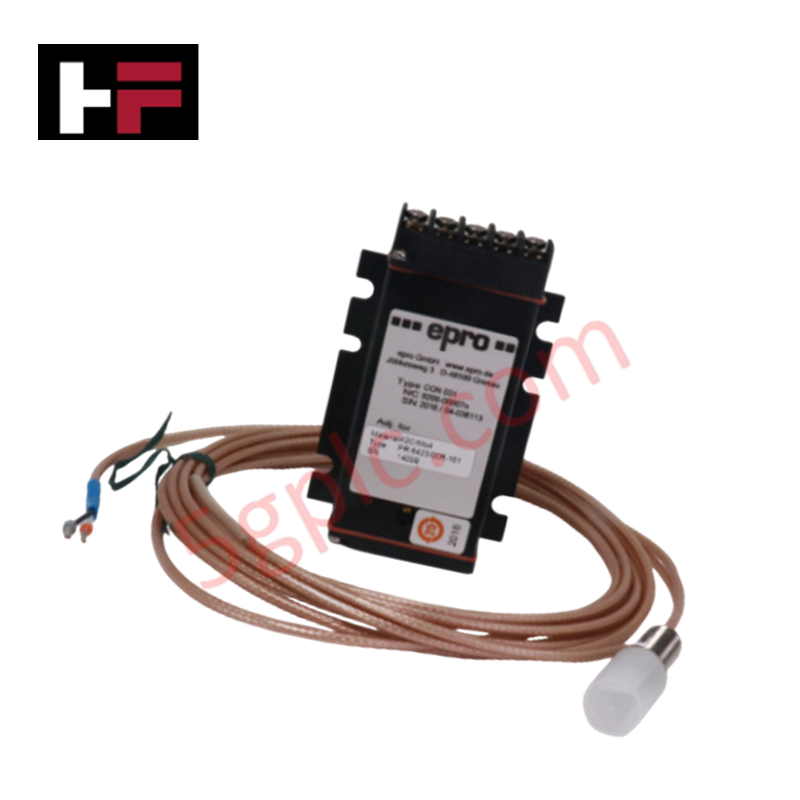

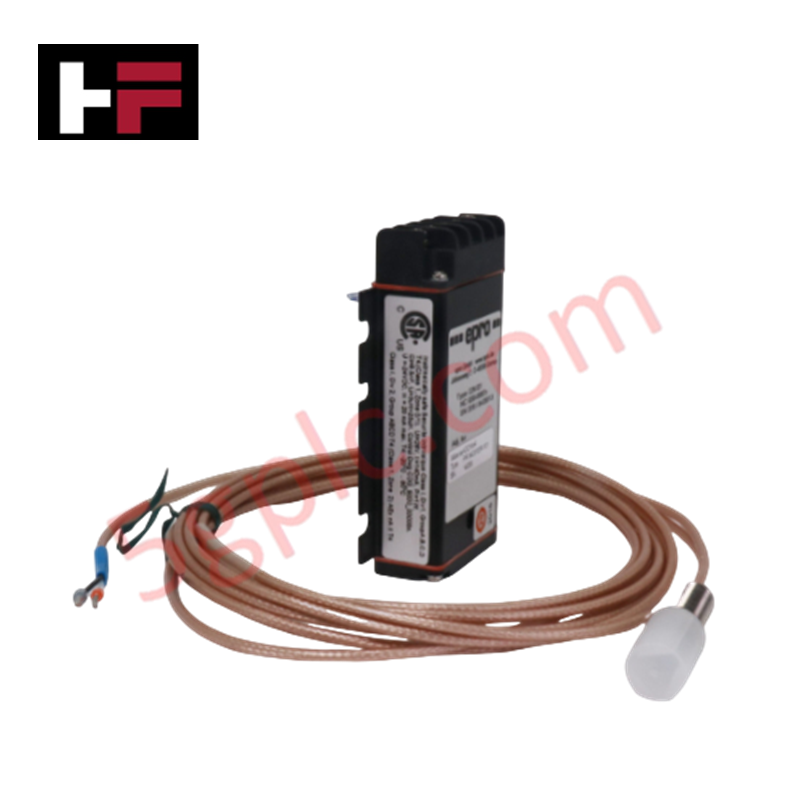

Configured for continuous vibration and displacement conditioning in Ovation and EPRO machinery protection monitoring platforms, the Emerson CON021+PR6423/10R-040-HT (CON021+PR6423) Eddy Current Sensor System provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | CON021+PR6423/10R-040-HT |
| Brand | Emerson |
| Origin | USA / Germany |
| Operating Temp | High-temperature rated sensor probe for harsh operational thermal environments |
| Power Consumption | System powered via backplane / monitoring chassis power supply |
| Measuring Principle | Non-contact electromagnetic eddy current loss induction |
| Signal Output | Conditioned vibration and displacement measurement data via CON021 interface |
4-20 mA HART Loop Protocol and Channel-to-Channel Isolation
The CON021 signal conditioner module processes high-frequency impedance changes generated at the PR6423/10R-040-HT sensor tip, converting physical target displacement into calibrated analog measurement outputs. Configured for integration into Emerson DCS architectures, the signal path utilizes a 4-20 mA HART loop protocol framework to transmit real-time vibration amplitude and shaft position values. Built-in channel-to-channel isolation prevents electrical noise coupling and ground potential differentials from degrading measurement accuracy across multi-axis turbomachinery monitoring channels.
Frequently Asked Questions
Q: What operational distinction does the "-HT" designation provide on the PR6423 probe sensor?
A: The "-HT" suffix indicates a high-temperature rated probe construction designed to maintain structural integrity and coil insulation properties when exposed to extreme thermal conditions on rotating machinery housing.
Q: How is electrical power supplied to the CON021 module and sensor assembly?
A: The system is internally powered directly through the host rack-mount chassis backplane interface, eliminating the need for separate external field power wiring at the signal conditioner module.
Field Installation Guidelines
- Route high-temperature probe cabling away from direct contact with uninsulated steam lines or mechanical hot spots exceeding rated thermal limits.
- Connect extension cable shield terminations at a single cabinet ground point to maintain 4-20 mA HART loop protocol noise immunity.
- Ensure proper mechanical clearance around the probe tip to prevent metallic sidewalls from causing false proximity loading.
- Fasten probe locknuts to manufacturer torque specifications to prevent sensor gap drift under continuous machinery vibration.
