Product Details

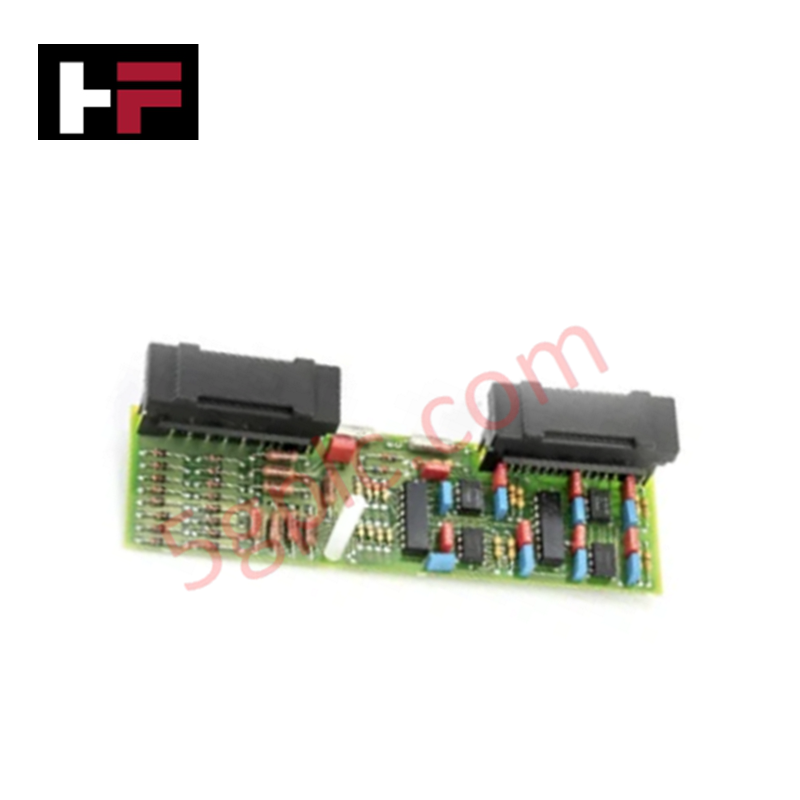

The ABB DSAI301 57120001-CB, also cataloged as the DSAI 301 Analog Input Unit, operates as a dedicated hardware component for high-precision bipolar analog signal acquisition within ABB Advant Master Process Control System platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSAI 301 (57120001-CB) |
| Brand | ABB |
| Origin | Sweden |
| Weight | 0.085 kg |
| Dimensions | 135.9 mm x 45 mm x 28.8 mm |
| Operating Temp | 0 to +55 deg C |
| Power Consumption | Powered via system backplane |
| Input Channels | 8 bipolar, single-ended channels |
| Input Signal Ranges | +/-10 V, +/-20 mA |
| Accuracy | 0.05% |
| System Compatibility | ABB Advant Master Process Control System |
| Compliance | RoHS exempted under Directive 2011/65/EU Article 2(4) |
Backplane Bus Communication Velocity and I/O Density Scaling
The DSAI 301 analog input unit executes continuous analog-to-digital conversion across its 8 single-ended input channels without impeding backplane bus communication velocity across the host controller rack. Integrated signal conditioning circuitry maintains high accuracy across both voltage and current loop configurations. Standardized firmware flash compatibility across ABB Advant Master processors ensures deterministic scan timing, low signal jitter, and optimized I/O density scaling within compact enclosure footprints.
Frequently Asked Questions
Q: What is the measurement accuracy offered by the DSAI 301 input channels?
A: The module maintains an overall signal conversion accuracy rating of 0.05% across all 8 bipolar channels.
Q: Which input signal types can be wired directly to the DSAI 301 terminal points?
A: The unit accepts both bipolar voltage signals within a +/-10 V range and bipolar current signals within a +/-20 mA range.
Q: How is primary operating power supplied to the DSAI 301 module?
A: Internal conversion and logic circuits draw operating power directly from the system backplane interface upon rack insertion.
Field Installation Guidelines
- Disconnect main rack power and verify electrical isolation prior to inserting or removing the DSAI 301 unit.
- Wear a properly grounded wrist strap during installation to prevent static damage to sensitive onboard electronics.
- Align the module edge connector with the target slot on the Advant Master subrack rail and slide firmly until fully seated.
- Route field wiring using twisted-pair shielded cables to reduce electromagnetic interference across current and voltage loops.
- Ensure the terminal screw connections are securely torqued and ground cable shields at the designated cabinet chassis ground point.
