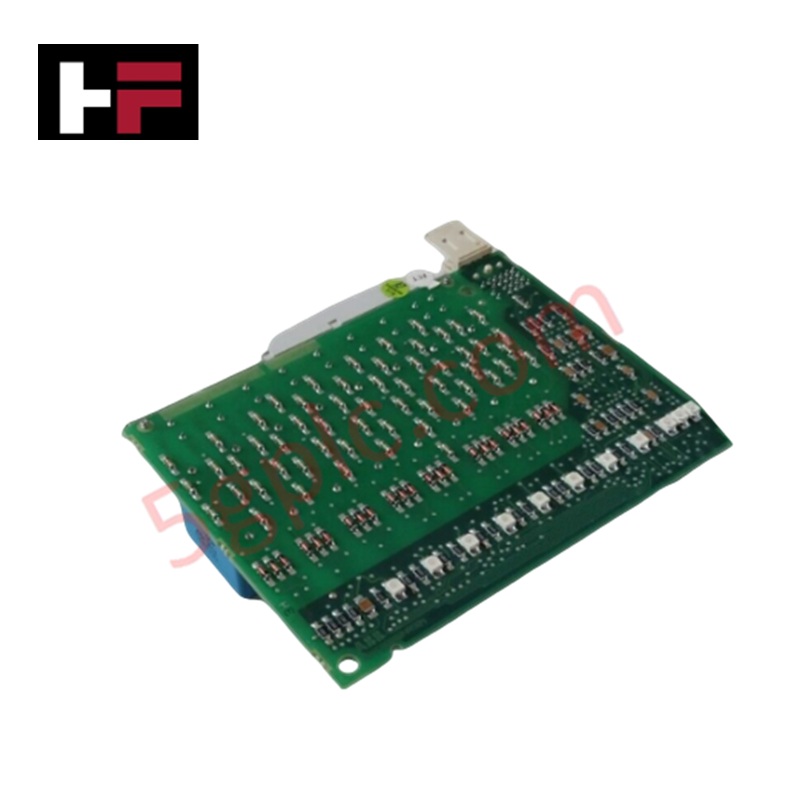

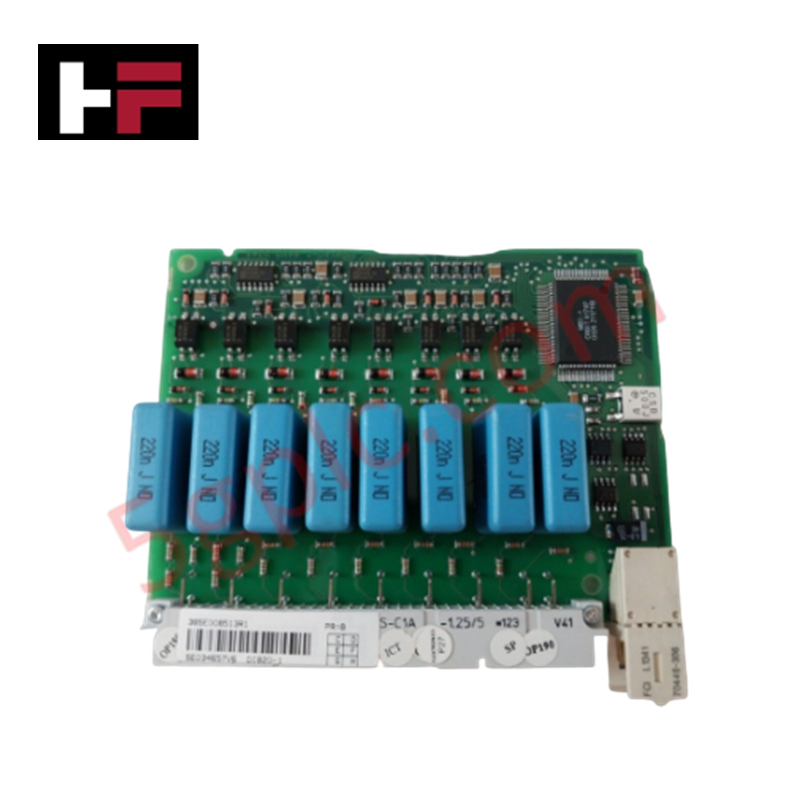

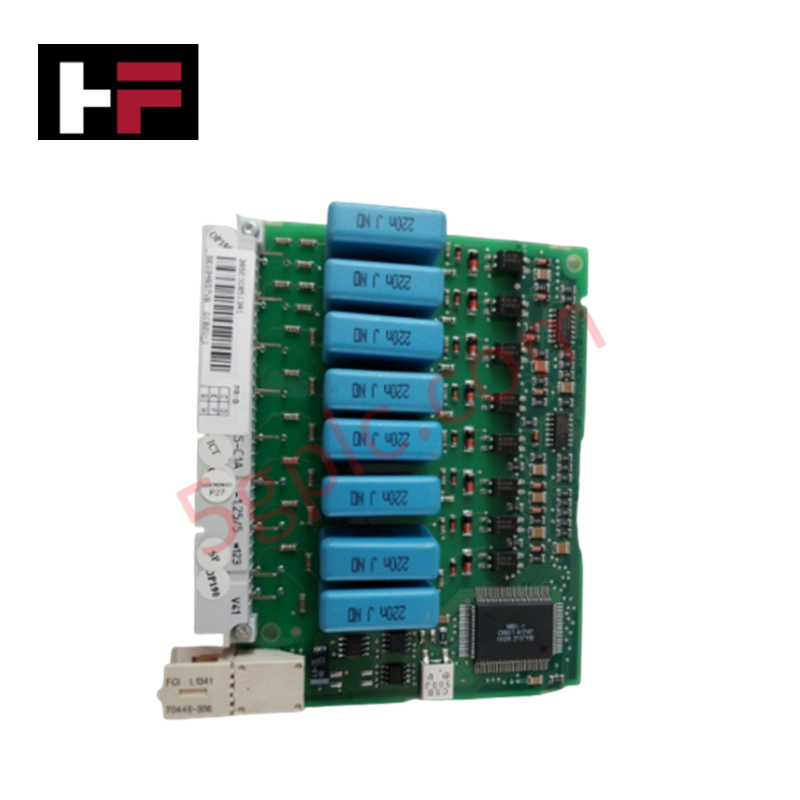

DI685 3BDS005833R1 ABB Advant Master Digital Input Module

The ABB DI685 3BDS005833R1, also cataloged as the DI685 Digital Input Module, operates as a dedicated hardware component for binary state monitoring within Advant Master platforms. The multi-channel component captures discrete physical signal transitions from field contacts and translates them into register-bound logic values over the local controller chassis backplane.

Hardware Specifications

Industrial Control and Network Determinism

The DI685 transmits state registers across the processing layer without causing degradation to the backplane bus communication velocity parameters. Operating within the Advant Master framework, the hardware interfaces with System 800xA topologies to execute deterministic state mapping across distributed architectures. The module configuration supports flexible I/O density scaling profiles, allowing synchronous input loop processing alongside smart drives and motor control networks. Firmware flash compatibility ensures that input filtering constants and debounce limits interface directly with core DCS processing blocks without introducing clock cycle latency or timing jitter.

Frequently Asked Questions

Q: Does the physical design of the DI685 allow hot-swap module replacement during active process execution?

A: No. In legacy Advant Master chassis variants, the slot bus connections lack independent electrical isolation switches. Baseplate and rack logic power feeds must be isolated before component insertion or extraction to prevent signal line disruptions.

Q: How is the variable configuration data handled when integrating this legacy component into a System 800xA evolutionary layout?

A: The DI685 interfaces through the existing Advant Master subsystem layer. The variables migrate incrementally without requiring a complete hardware teardown, mapping local discrete data bits directly onto the System 800xA engineering platform registers.

Field Installation Guidelines

• Chassis Guide Alignment: Verify that the 27.9 cm length tracks fit completely into the guide rails of the Advant Master housing assembly. Apply steady pressure until the rear multi-pin pinout fully seats into the backplane logic mating surface.
• Discrete Shield Continuity: Route field input signal conductors through independent conduits separated from high-voltage motor control lines to shield the input circuits from inductive switching interference.
• Mechanical Retention Fixing: Tighten all integration screws on the front panel face to maintain chassis bonding integrity and protect the electronic cards from localized industrial plant vibration profiles.
