Product Details

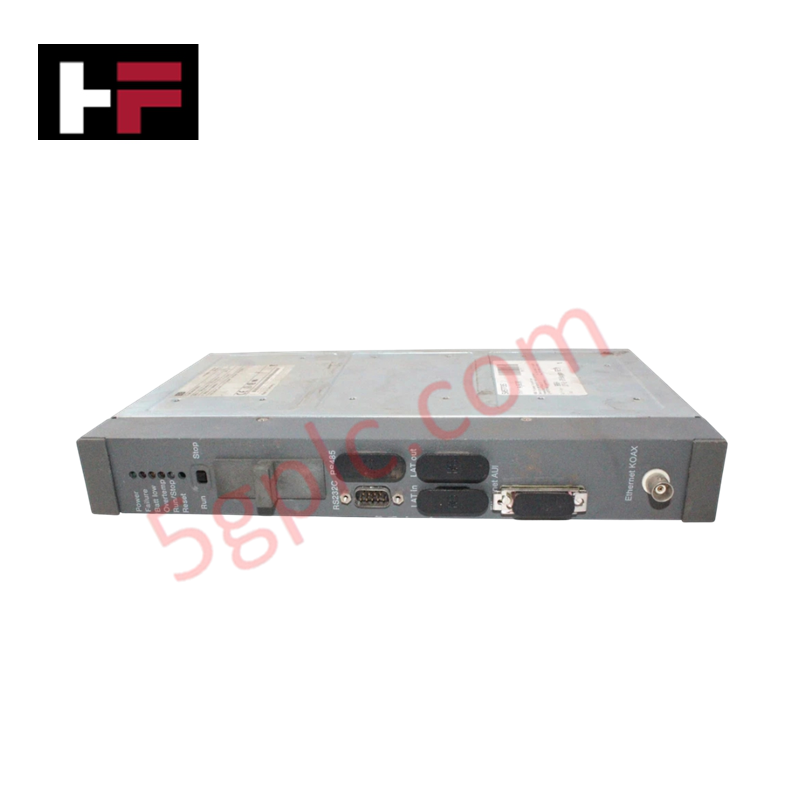

The ABB DCP 02 P 37211-4-0369654, also cataloged as the DCP02 CPU Module, operates as a dedicated hardware component for central processing logic execution within ABB Freelance 2000 automation control platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DCP 02 |
| Order Code | P 37211-4-0369654 (0369654-608-REF) |
| Brand | ABB |
| Origin | Sweden |
| Product Type | CPU Processors |
| Firmware Version | V5.1 |
| Dimensions | 17.8 cm x 5.1 cm x 45.7 cm |
| Weight | 0.9 kg |
| Operating Temp | 0 to 55 deg C |
| Power Consumption | Bus-powered via internal chassis backplane |
| Customs Tariff Number | 85389091 |
Backplane Bus Communication & Deterministic Processing
The ABB DCP 02 CPU module delivers real-time program execution and communication task handling across the Freelance 2000 backplane architecture. High-velocity bus interfaces handle deterministic data exchanges between the processor card and distributed I/O racks, ensuring low system scan times. Firmware flash compatibility (version V5.1) maintains exact memory address mapping and operational synchronization with system rack modules and station controllers.
Frequently Asked Questions
Q: What firmware version is integrated into the DCP02 CPU module hardware?
A: The module executes system tasks under firmware version V5.1.
Q: Can the DCP 02 CPU module be replaced without powering down the rack backplane?
A: System rack power must be completely turned off prior to extracting or inserting the CPU module to prevent backplane bus communication crashes and voltage surge spikes across processor memory components.
Field Installation Guidelines
- Power off the main cabinet power supply and verify no voltage is present on the rack chassis.
- Align the board edges with the card guides in the designated CPU slot of the rack chassis.
- Slide the module straight into the slot until the rear backplane connectors seat firmly with the bus header.
- Tighten the retaining screws at the top and bottom of the front panel to lock the module in place and complete the ground continuity loop to the chassis frame.
- Reconnect communication interfaces, confirm cabling paths are clear of power lines, and energize system power.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
