Product Details

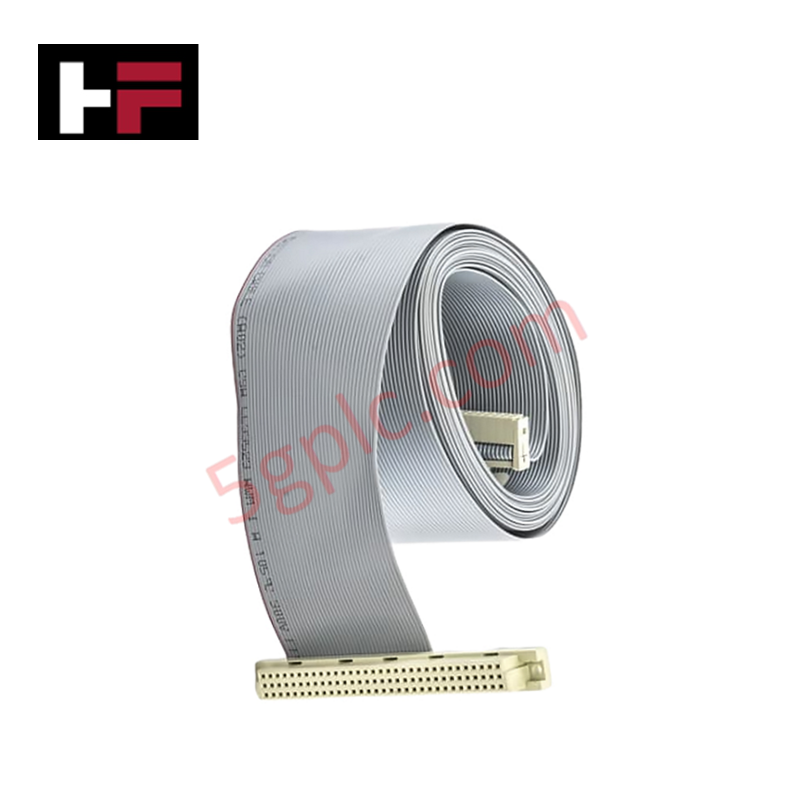

The ABB DSTK 153 26390603-G, also cataloged as the DSTK 153 Pre-Fabricated Cables, operates as a dedicated hardware component for internal signal transmission and rack interconnection within ABB Advant Master process control systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSTK 153 |
| Order Code | 26390603-G |
| Brand | ABB |
| Origin | Poland / United States |
| Product Type | Pre-Fabricated Cables |
| Cable Assembly Length | 3.0 m |
| Cable Type | Flat Ribbon Cable |
| Weight | 0.66 kg |
| Dimensions | Standard ribbon cable footprint (3.0 m assembly) |
| Operating Temp | 0 to 55 deg C |
| Power Consumption | Passive conductor assembly |
| Customs Tariff Number | 85446090 |
| RoHS Compliance | Exempt from 2011/65/EU under Article 2(4) |
Backplane Bus Communication & Firmware Flash Compatibility
The ABB DSTK 153 3.0-meter flat ribbon cable maintains backplane bus signal continuity across adjacent subrack assemblies and system termination units. Parallel multi-conductor tracks minimize cross-talk and propagation delay, enabling high-rate signal transfers between I/O modules and controller communication interfaces. Correct pinout mapping maintains firmware flash compatibility and system address integrity across connected racks without altering system timing parameters.
Frequently Asked Questions
Q: What physical length does the DSTK 153 pre-fabricated ribbon cable provide?
A: The DSTK 153 cable assembly is provided at a fixed pre-fabricated length of 3.0 meters.
Q: Can the DSTK 153 ribbon cable be connected or disconnected while system power is active?
A: Subrack power and field terminal supplies must be de-energized prior to plugging or unplugging the ribbon cable connectors to avoid bus voltage disruption and potential signal interference.
Field Installation Guidelines
- Power down the target subrack and associated expansion chassis prior to handling cable connections.
- Align the keyway of the ribbon cable connector with the mating header on the backplane or terminal unit.
- Press the connector housing straight into the receptacle until the locking ears snap securely into place.
- Route the 3.0-meter flat cable assembly inside dedicated wire ducts, ensuring the minimum bend radius is preserved without twisting or pinching.
- Separate ribbon signal paths from high-voltage AC conductors and drive wiring to minimize electromagnetic noise coupling.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
