Product Details

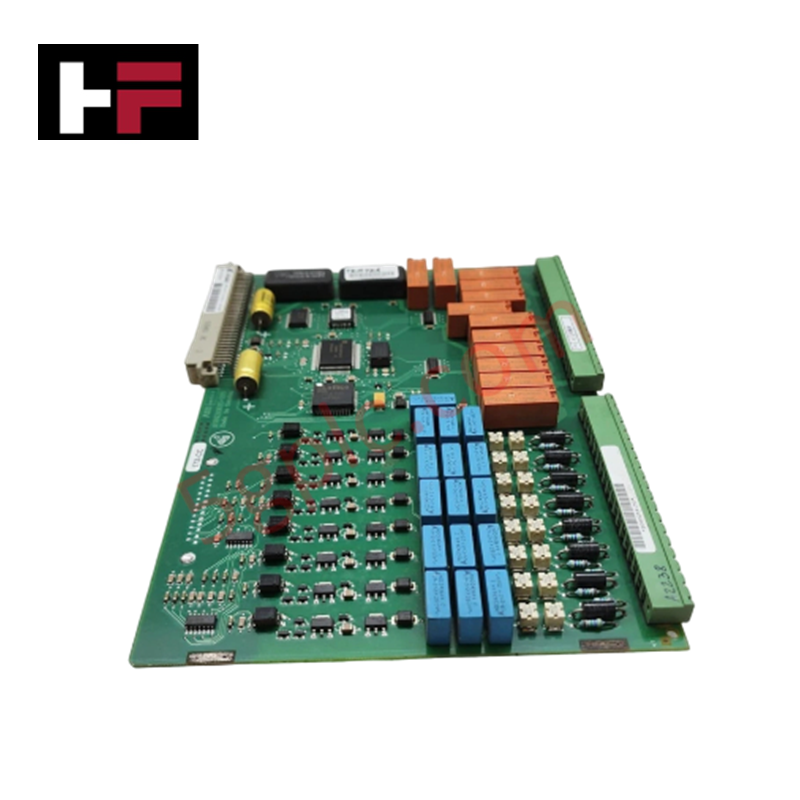

The ABB 1MRK000173-CCR00, also cataloged as the 1MRK 000173-CC Control Board, operates as a dedicated hardware component for central processing and logic control execution within ABB Relion 670 protection relay systems.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 1MRK000173-CCR00 |
| Brand | ABB |
| Origin | Standard ABB Manufacturing |
| Weight | 0.50 kg |
| Dimensions | Standard Relion 670 Main Board Slot |
| Operating Temp | -25 to +70 deg C |
| Power Consumption | Backplane Auxiliary Supply Powered |
| Board Type | System Processing & Control Board |
| Form Factor | Internal Backplane Card Slot |
| Protocol Support | Integrated Relion Backplane Protocols |
Backplane Bus Communication Velocity & I/O Density Scaling
The control board coordinates internal communication vectors across local I/O cards and communications modules inserted into the relay rack. High-speed backplane bus communication velocity allows immediate processing of binary event status changes, analog sampled values, and protection trip commands without execution latency. Firmware flash compatibility across system revisions guarantees synchronization with system backplane architectures while supporting flexible I/O density scaling.
Frequently Asked Questions
Q: Does the 1MRK 000173-CCR00 control board require a dedicated external DC supply wire?
A: No, operational power is supplied directly through the internal backplane bus of the host Relion 670 protection relay rack.
Q: How does the control board handle system firmware compatibility?
A: The board maintains firmware flash compatibility across Relion 670 series backplanes to support seamless data exchange between internal functional cards.
Field Installation Guidelines
- Always de-energize the host Relion 670 chassis before inserting, removing, or servicing internal processing cards.
- Wear a grounded electrostatic discharge (ESD) wrist strap when handling the card edge connectors to prevent static damage to surface-mount components.
- Ensure card alignment rails are correctly engaged prior to pushing the board fully into the backplane socket.
- Tighten front faceplate retaining screws to verify solid grounding to the main chassis frame.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
