Product Details

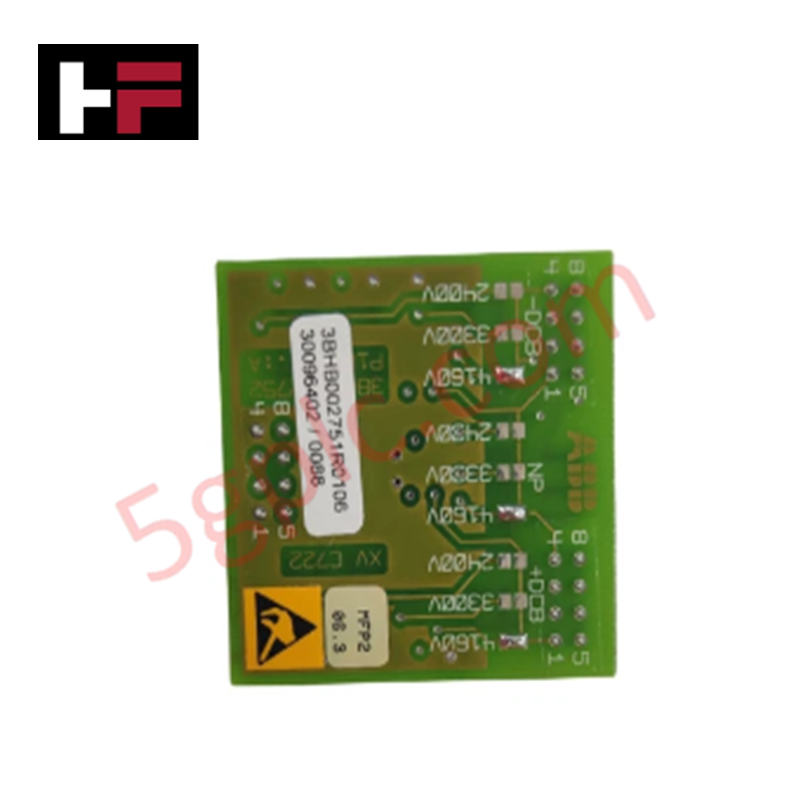

The ABB 3BHB002751R0106, also cataloged as the 3BHB002751R0106 Rectifier Supervision Board, operates as a dedicated hardware component for rectifier supervision within the ACS1000 A/W drive system.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 3BHB002751R0106 |
| Brand | ABB |
| Origin | Subject to factory documentation |
| Weight | 0.02 kg |
| Dimensions | Standard PCB form factor for ACS1000 series |
| Operating Temp | Industrial standard (up to 70 deg C) |
| Power Consumption | Not defined by OEM; derived from backplane bus |
| Voltage Rating | 700 V (Rectifier supervision circuit) |
| Customs Tariff | 85049099 |
Profinet / EtherNet/IP Deterministic Networks
As a component within the ABB ACS1000 drive architecture, this supervision board ensures deterministic signal processing. The module integrates with the drive control unit to monitor internal rectifier states. Through high-speed backplane communication, it facilitates real-time data exchange, ensuring that diagnostic parameters are updated within the cycle times required by deterministic industrial networks. Firmware flash compatibility is managed via the primary drive controller to maintain system-wide communication synchronization.
Frequently Asked Questions
Q: Does the 3BHB002751R0106 board support hot-swap functionality?
A: No. The ACS1000 drive system must be fully powered down and the DC bus discharged to a safe voltage level before removing or installing this supervision board to prevent damage to the backplane interface.
Q: What is the primary function of this module in the rectifier circuit?
A: This board performs continuous electrical monitoring of the rectifier stages. It monitors voltage levels up to 700 V and provides diagnostic feedback to the main control processor to ensure operational integrity.
Field Installation Guidelines
- Ensure the ACS1000 drive is isolated from all power sources and the capacitor bank is discharged.
- Verify the site environment meets standard industrial cleanliness levels to prevent PCB contamination.
- Align the module carefully with the designated slot in the drive control cabinet backplane.
- Apply even, firm pressure to seat the connector fully; ensure the locking mechanism is engaged.
- Secure any necessary shielding or ground connection points to minimize electromagnetic interference (EMI) impact on the rectifier supervision signals.
- Before reapplying power, verify that no foreign metallic debris is present near the PCB surface.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
