Product Details

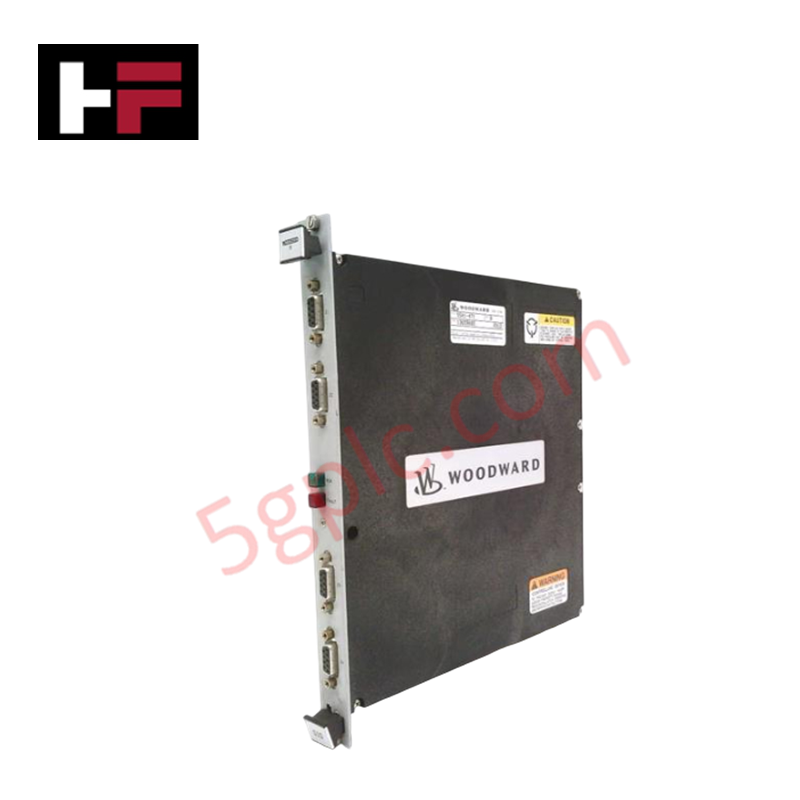

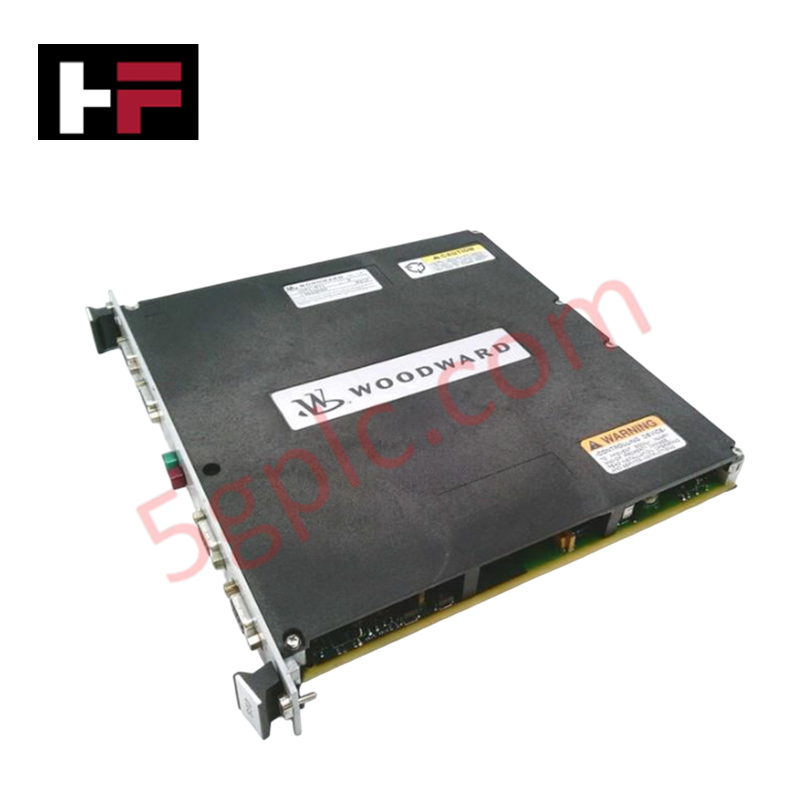

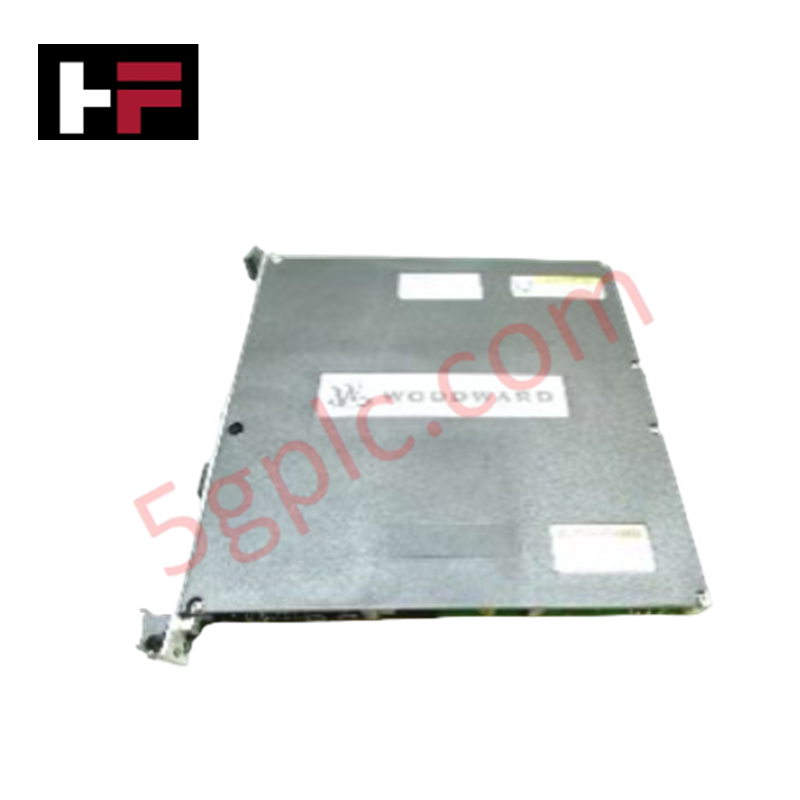

Configured for serial data transmission within turbine control networks, the Woodward 5501-471 (5501-471 NetCon SIO Module) provides direct physical/electrical execution of communication between the central controller and peripheral turbine instrumentation.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 5501-471 |
| Brand | Woodward |
| Origin | USA |
| Dimensions | 14 x 11 x 4 inches |
| Operating Temp | Not specified |
| Power Consumption | 24 VDC |
| Serial Ports 1-2 | RS-232 |
| Serial Ports 3-4 | RS-232, RS-422, RS-485 |
| Protocol Support | Modbus RTU, Modbus ASCII |
| Enclosure | NEMA 4X |
V/Hz and Field-Oriented Vector Control
The 5501-471 NetCon SIO module functions as the data interface layer for complex turbine regulation loops, including those requiring field-oriented vector control logic. By facilitating deterministic serial communication via RS-422 and RS-485 interfaces, the module ensures that sensor feedback regarding speed and torque is relayed to the governing system with minimal latency. This data integrity is foundational for the execution of V/Hz control algorithms, allowing the system to maintain stable output frequency and voltage regulation despite varying load conditions.
Frequently Asked Questions
Q: Does the 5501-471 module support field-selectable serial protocols?
A: Yes, ports 3 and 4 are configurable for RS-232, RS-422, or RS-485 physical layer standards. Protocol support includes Modbus RTU and Modbus ASCII, configurable via the system software.
Q: Is the emergency stop button on the front panel a hard-wired safety interlock?
A: The emergency stop button integrated into the 5501-471 interface is designed for rapid manual intervention; however, its implementation within the safety chain must be verified against the site-specific emergency shutdown logic and wiring diagrams of the turbine control system.
Field Installation Guidelines
- Environmental Preparation: Verify the installation site complies with NEMA 4X environmental standards if utilizing the unit in exposed conditions.
- Mounting: Secure the module within the designated rack space; ensure the 14 x 11 x 4 inch dimensions allow for adequate clearance for cabling.
- Cabling and Shielding: For RS-422 and RS-485 connections, utilize shielded twisted-pair cabling to minimize signal degradation. Terminate shields at the cabinet ground bus in accordance with established grounding practices.
- Interface Configuration: Prior to activating serial loops, verify the physical switch or software settings for Ports 3 and 4 match the intended transmission standard (RS-232/422/485).
- Validation: Perform a Modbus loopback test using a master emulator to confirm communication continuity before attempting to poll live turbine sensors.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
