Product Details
Product Overview

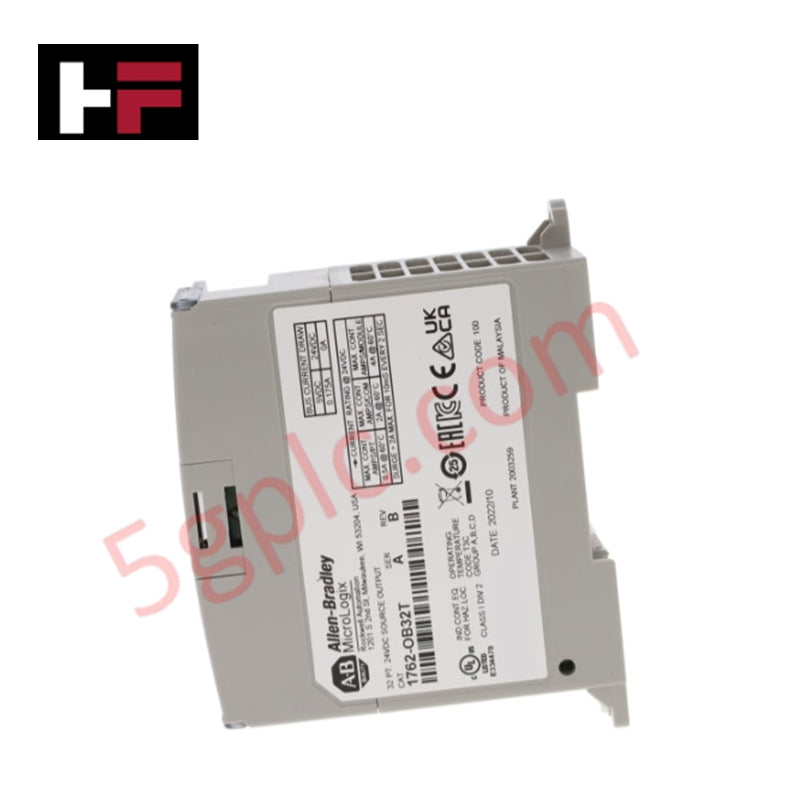

The 1762-OB32T is a high-density digital expansion module designed for the MicroLogix 1100, 1200, and 1500 controller families. This solid-state component provides thirty-two sourcing outputs in a compact form factor, significantly increasing the I/O capacity of a PLC system without requiring additional rack space. By utilizing the 1762-OB32T, engineers can drive multiple 24V DC field devices, such as solenoids, interface relays, and indicator lamps, with high reliability and rapid switching speeds.
Technical Specifications
-
Manufacturer Allen-Bradley / Rockwell Automation
-
Product Line MicroLogix 1762 Expansion I/O
-
Model Number 1762-OB32T
-
Output Type Solid-State Sourcing (Source)
-
Number of Outputs 32 Channels
-
Wiring Configuration Two (2) isolated groups of 16 channels each
-
Nominal Operating Voltage 24V DC
-
Operating Voltage Range 10.2V to 26.4V DC
-
Current Rating (Per Channel) 0.5 A at 60 °C (140 °F)
-
Current Rating (Per Group) 2.0 A at 60 °C (140 °F)
-
Current Rating (Total Module) 4.0 A at 60 °C (140 °F)
-
Surge Current Capacity 2.0 A (Repeatable every 2s for 10ms at 60 °C)
-
Minimum On-State Current 1 mA
-
Maximum Heat Dissipation 3.4 Watts
-
Supported Wire Sizes 22 AWG, 24 AWG, and 26 AWG
-
Shipping Weight 0.31 lbs (0.14 kg)
Hardware Installation and Thermal Management
The 1762-OB32T features a high-density design that requires careful attention to thermal loads. To maintain the 0.5 A per channel rating at elevated temperatures (60 °C), ensure that the total module current does not exceed 4.0 A. The module utilizes a ribbon-cable or high-density connector interface rather than traditional screw terminals to accommodate the 32-point count within a small footprint. It is recommended to use pre-wired cable assemblies to simplify integration and reduce wiring errors.
Comparison: 1762-OB32T vs. 1762-OB16
-
Density The 1762-OB32T provides double the output capacity in the same physical width as the 16-point 1762-OB16 module.
-
Wiring While the OB16 uses standard terminal blocks, the 1762-OB32T utilizes a high-density connector, often requiring an external terminal interface for field wiring.
-
Application Ideal for systems with high actuator counts where panel space is strictly limited.
Frequently Asked Questions
-
Does the 1762-OB32T support sinking output configurations?
No, this module is strictly a "Sourcing" (Source) output type, meaning it provides the positive side of the 24V DC circuit to the load.
-
What happens if an output is short-circuited?
While solid-state, the 1762-OB32T should be protected by external fuses. Exceeding the 2.0 A surge rating or 0.5 A continuous rating per channel may cause permanent damage to the output transistors.
-
Is this module compatible with the MicroLogix 1000?
No, the 1762 expansion series is only compatible with the MicroLogix 1100, 1200, and 1500 series controllers.
