Product Details
Product Overview

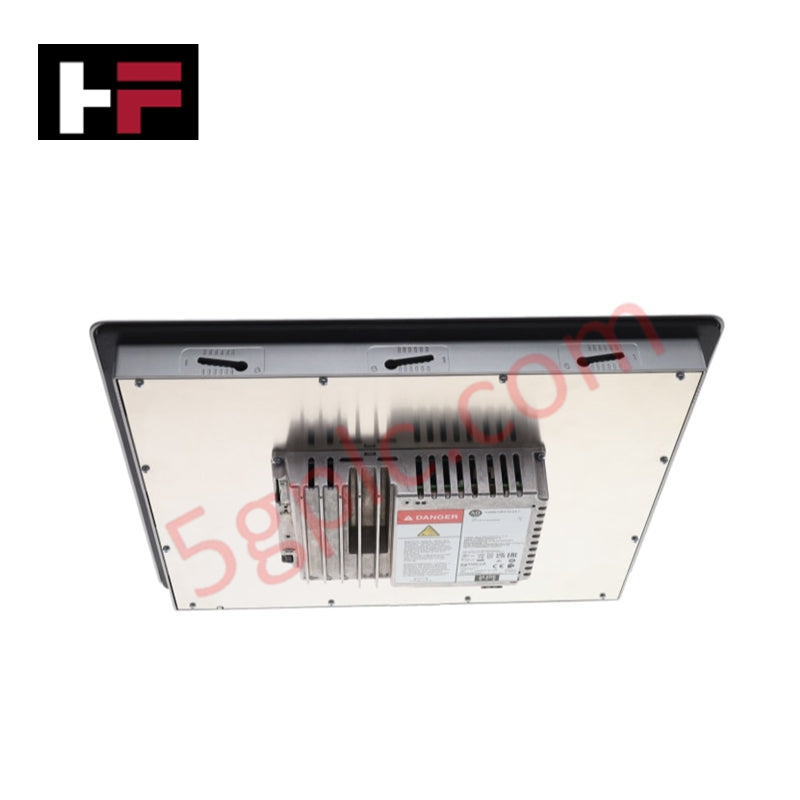

The Allen-Bradley 2711P-T15W22D9P represents the apex of visualization technology within the PanelView Plus 7 Performance series. This high-definition, 15-inch widescreen HMI provides the processing power and screen real estate required for complex, data-heavy industrial applications. Operating on 24V DC, this terminal supports large-scale FactoryTalk View ME projects with extensive alarming, trending, and diagnostic requirements. We supply this unit as 100% Brand New original factory stock, ensuring your facility benefits from the latest in secure, high-speed operator interface technology.
Technical Specifications
| Feature | Specification |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Product Line | PanelView Plus 7 Performance |
| Display Size | 15.0-inch Widescreen |
| Display Type | Color Active-Matrix TFT |
| Resolution | 1280 x 800 WXGA |
| Operator Input | Analog Resistive Touchscreen |
| Input Voltage | 18–32V DC (24V DC Nominal) |
| Communication | Dual 10/100 Ethernet Ports (DLR Support) |
| USB Ports | 2 Host (Type A), 1 Device (Type B) |
| Storage | SD Card Slot for external logging |
| Software | FactoryTalk View Machine Edition (ME) |
| Weight | 8.35 lbs (3.79 kg) |
Engineering Advantages
-
Widescreen SVGA Visualization: The 15-inch 1280 x 800 WXGA display offers significantly more horizontal workspace than traditional 4:3 monitors. This allows engineers to place more faceplates, trends, and navigation buttons on a single screen, reducing the need for deep menu nesting.
-
Dual Ethernet with DLR Support: The integrated dual Ethernet ports support Device Level Ring (DLR) topologies. This hardware-level redundancy ensures the HMI remains connected even if a single cable in the ring breaks, preventing lost visibility during network faults.
-
Rapid Application Execution: The Performance series hardware features an upgraded processor and increased RAM compared to the "Standard" series. This enables nearly instantaneous screen switches and handles high-frequency tag updates without lag, even in projects with thousands of I/O points.
-
Secure Remote Access: Integrated VNC (Virtual Network Computing) support allows authorized personnel to view and control the HMI remotely via a tablet or PC. This feature facilitates off-site troubleshooting and executive-level process monitoring.
-
Rugged Front Panel Protection: The touch interface features a high-durability coating that resists industrial solvents and moisture. The terminal meets IP66 and NEMA 4X ratings when properly panel-mounted, ensuring reliable operation in washdown or dusty environments.
FAQs
-
Does the 2711P-T15W22D9P support video playback?
Yes. The PanelView Plus 7 Performance series includes an integrated media player. You can play training videos or maintenance tutorials directly on the screen to assist operators with on-site procedures.
-
Can I use this terminal with 120V AC power?
No. This model (indicated by the "D" in the part number) requires 18–32V DC power. For AC applications, you must use a regulated 24V DC power supply to prevent damage to the internal electronics.
-
How many controllers can this HMI connect to simultaneously?
Unlike the "Standard" version which is limited to one controller, the Performance series supports connections to multiple Allen-Bradley and third-party controllers simultaneously, making it an ideal central aggregator for complex plant cells.
-
Is this a "New" or "Renewed" product?
We guarantee this unit is 100% Brand New. It arrives in the original, factory-sealed Allen-Bradley box with all mounting hardware and gaskets included. We do not sell used or refurbished HMI hardware.
