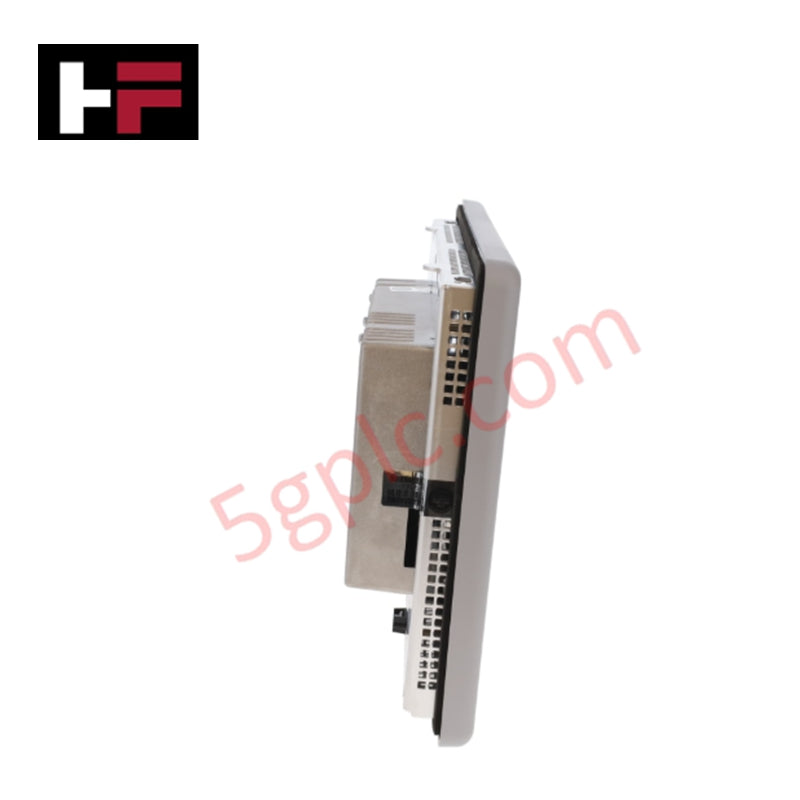

Allen-Bradley 2711P-RDR10C PanelView Plus 1000 Display Module

Product Overview

The Allen-Bradley 2711P-RDR10C functions as a high-resolution replacement display module for the PanelView Plus 1000 and PanelView Plus 6 1000 graphic terminal families. This 10.4-inch color active-matrix TFT display provides the critical visual interface for complex industrial automation systems. We supply this component as 100% Brand New original factory stock, offering a direct hardware solution for restoring screen clarity and touch responsiveness to degraded HMI terminals without replacing the entire logic assembly.

Technical Specifications

Engineering Advantages

• Optimized Visual Clarity: The 2711P-RDR10C utilizes a high-contrast TFT LCD that ensures critical process variables remain legible under varying factory lighting conditions. The 300-nit brightness prevents "washout" in brightly lit control rooms.

• Rugged Touch Interface: The analog resistive touchscreen allows operators to navigate menus and trigger machine cycles while wearing heavy industrial gloves. This technology resists surface contaminants like oil, grease, and moisture, maintaining input accuracy in harsh environments.

• Modular Restoration Strategy: This display module mates perfectly with the 1756-series logic modules used in PanelView Plus terminals. By replacing only the display component, maintenance teams preserve the existing application software and communication settings stored on the logic module.

• Integrated Seal Protection: The front bezel design incorporates an industrial-grade gasket. When panel-mounted correctly, this provides a NEMA 4X/IP66 seal, protecting the internal electronics from high-pressure washdowns and airborne particulates.

FAQs

• Can I use the 2711P-RDR10C with a PanelView Plus 6 terminal?

  Yes. This display module maintains backward and forward compatibility with the 1000-series frames, including the "Plus 6" hardware revisions.

• Does this unit include the Logic Module?

  No. The 2711P-RDR10C is the display module only. You must attach your existing or a new Logic Module to the rear of this unit to create a functional HMI terminal.

• Is the touchscreen pre-calibrated?

  While factory-tested, we recommend performing a standard touchscreen calibration via the PanelView Configuration Menu immediately after installation to ensure perfect alignment with your specific OS and application.

• How do I verify this is 100% Brand New?

  We ship all 2711P-RDR10C units in original Rockwell Automation factory packaging with intact tamper-evident seals. This ensures the display has zero operating hours and meets all original engineering tolerances.
