Allen Bradley 2711P-RDB7C PanelView Plus 6 Display Module

Product Overview

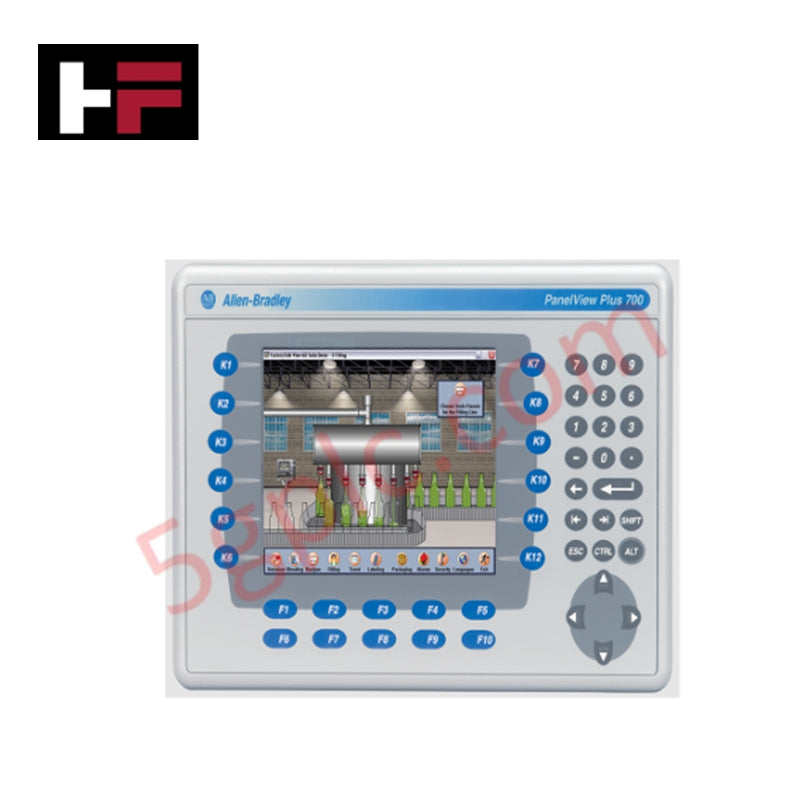

The Allen Bradley 2711P-RDB7C serves as a high-performance, integrated display module for the PanelView Plus 700 and PanelView Plus 6 series. This unit features a 6.5-inch color active-matrix display that provides a dual-input interface through both an analog resistive touchscreen and a physical keypad. We supply this module as 100% Brand New and Original, ensuring a direct replacement for discontinued hardware. It restores full visualization and operator control to existing HMI logic modules without requiring a full system overhaul.

Technical Specifications

The 2711P-RDB7C provides crisp industrial graphics and rugged input capabilities:

Engineering Advantages

• Hybrid Input Versatility: This module combines a touch interface with a tactile keypad. This design allows operators to choose the most efficient input method for their specific task, ensuring machine control remains accessible even in environments where oil or debris might affect touchscreen responsiveness.

• Modular Field Replacement: The 2711P-RDB7C attaches directly to existing PanelView Plus logic modules. This modularity allows engineers to replace a cracked or dim screen in minutes without replacing the entire HMI assembly or losing the resident application software.

• High-Contrast Visualization: The color TFT screen produces a 640 x 480 VGA resolution. This provides the clarity needed to monitor complex trend charts, multi-state indicators, and detailed alarm banners, even in factory environments with high ambient light.

• Rugged Front-Panel Gasket: The assembly includes an industrial-grade gasket that seals against the control cabinet door. This seal maintains the environmental rating of your enclosure, protecting internal electronics from wash-down spray and airborne particulates.

• Low-Latency Response: The internal hardware optimizes signal processing between the touch grid/keypad and the logic module. This minimizes the lag between an operator's physical input and the controller's response, which is vital for time-sensitive manual operations.

FAQs

• Does this unit include the logic module and communication ports?

  No. The 2711P-RDB7C is the Display Module Only. You must attach it to a compatible PanelView Plus logic module (such as a 2711P-RPx) to form a complete, functional HMI terminal.

• Can I use this display module to upgrade an older PanelView Plus 700?

  Yes. The 2711P-RDB7C acts as a direct replacement and upgrade for older 700 series display modules. It utilizes the same mounting footprint and interface connectors, facilitating a seamless hardware transition.

• Is this a refurbished or used unit since the manufacturer discontinued it?

  We guarantee this 2711P-RDB7C is 100% Brand New and Original. It arrives in the original factory packaging with intact security seals, providing the reliability of a new component for your legacy automation systems.

• What are the installation requirements for the touchscreen and keypad?

  The module snaps onto the logic module via a multi-pin connector and secures with integrated mounting screws. No separate wiring is required for the touch or keypad inputs; the connection to the logic module handles all data and power.
