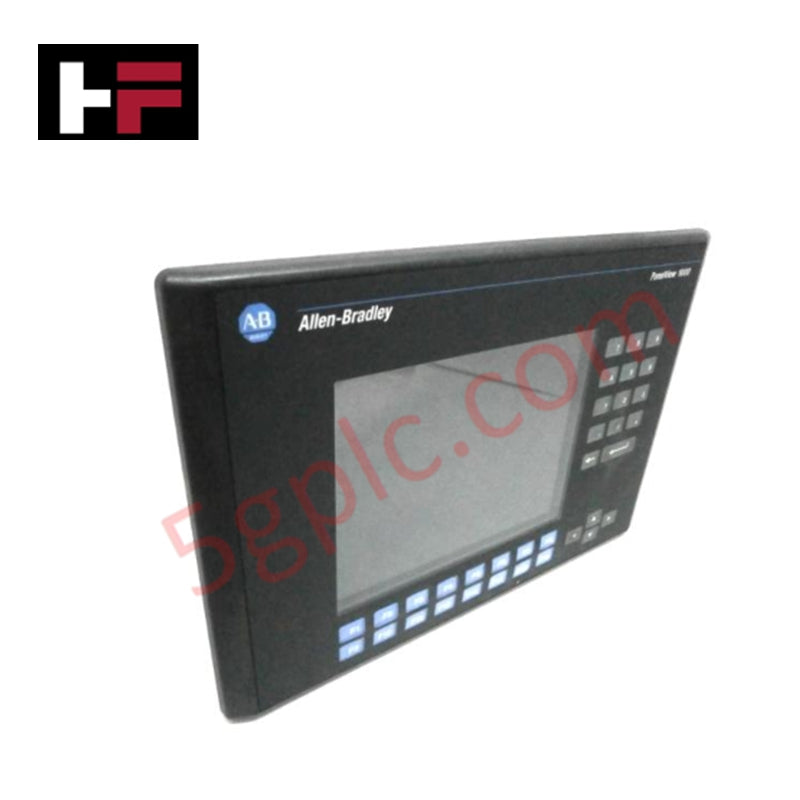

2711-K10C8 | Allen-Bradley PanelView 1000 Color Keypad Operator Terminal

Overview

The Allen-Bradley 2711-K10C8 is a PanelView 1000 Standard Operator Terminal designed for industrial machine control and monitoring. It provides a reliable human-machine interface with a color display and keypad input, offering seamless communication with Allen-Bradley PLC systems via DH+ and DH-485 networks.

Technical Specifications

• Manufacturer: Allen-Bradley

• Product Line: PanelView Standard Terminals

• Part Number: 2711-K10C8

• Display Type: 10.4-inch color active matrix TFT LCD

• Display Resolution: 640 x 480 pixels (VGA)

• Display Area: 211 x 158 mm (8.3 x 6.2 in.)

• Input Type: Keypad (numeric and function keys)

• Backlight: Replaceable CCFL, rated 50,000 hours at 25°C

• Communication Ports: DH+, DH-485

• Input Voltage: 18–32V DC (nominal 24V DC)

• Memory: 240 KB nonvolatile memory, 170 KB runtime application memory

• Communication Cable: 2711-NC13 (optional)

• Enclosure Rating: NEMA Type 12/13/4X, IP65 (indoor use)

• Operating Temperature: 0–55°C (32–131°F)

• Power Consumption: 70 VA max

• Mounting Type: Panel mount

• Weight: 6.6 lbs (3 kg)

Key Features

• Keypad Input Interface: Durable tactile keypad with programmable function keys (F1–F10).

• Color Display: 10.4-inch VGA display supports vivid graphical visualization of process data.

• Flexible Communication: Dual-channel DH+ and DH-485 communication for system integration.

• Rugged Design: Built for industrial conditions, compliant with NEMA and IEC protection standards.

• Easy Replacement and Maintenance: Field-replaceable backlight and accessible terminal connections.

• Efficient Power Use: Operates on 24V DC with minimal power draw.

Application Scenarios

• Manufacturing Automation: Visual monitoring and operator control of production lines.

• Process Control Systems: Interfaces with PLCs for real-time feedback and parameter adjustments.

• Material Handling Equipment: Supervises conveyor, packaging, or batching operations.

• Utilities and Infrastructure: Ideal for water treatment, energy monitoring, and building management.

FAQs

Q: What is the display size of the 2711-K10C8?
A: The terminal features a 10.4-inch color VGA display.

Q: What communication protocols are supported?
A: DH+ and DH-485 communication interfaces are supported.

Q: Does the terminal include touch input?
A: No, it uses a keypad input with function keys instead of a touchscreen.

Q: Is the backlight replaceable?
A: Yes, the CCFL backlight is field-replaceable.

Q: What is the operating voltage range?
A: The module operates between 18 and 32 volts DC.
