Product Details

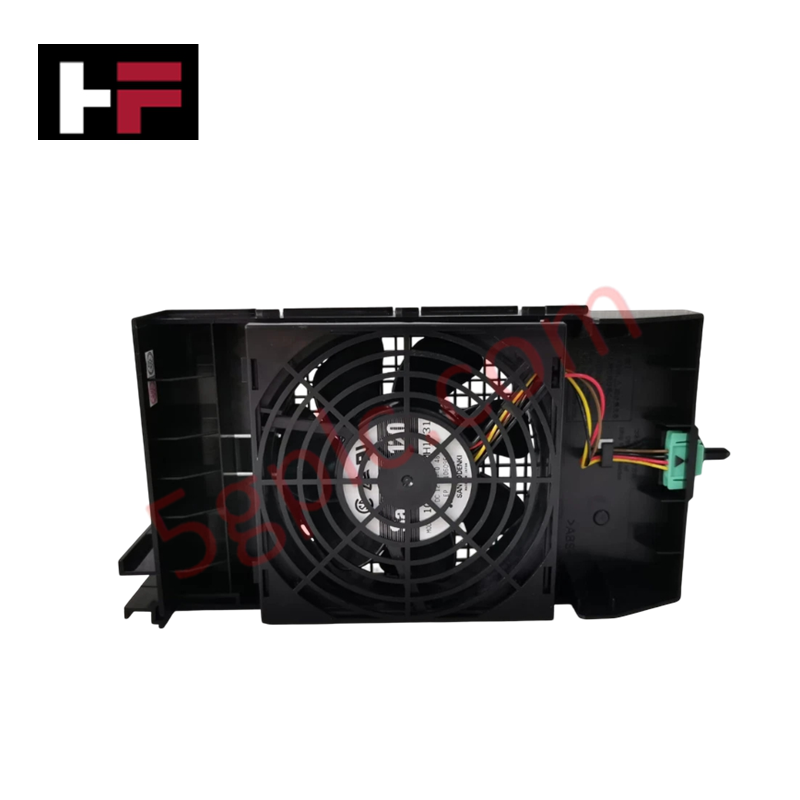

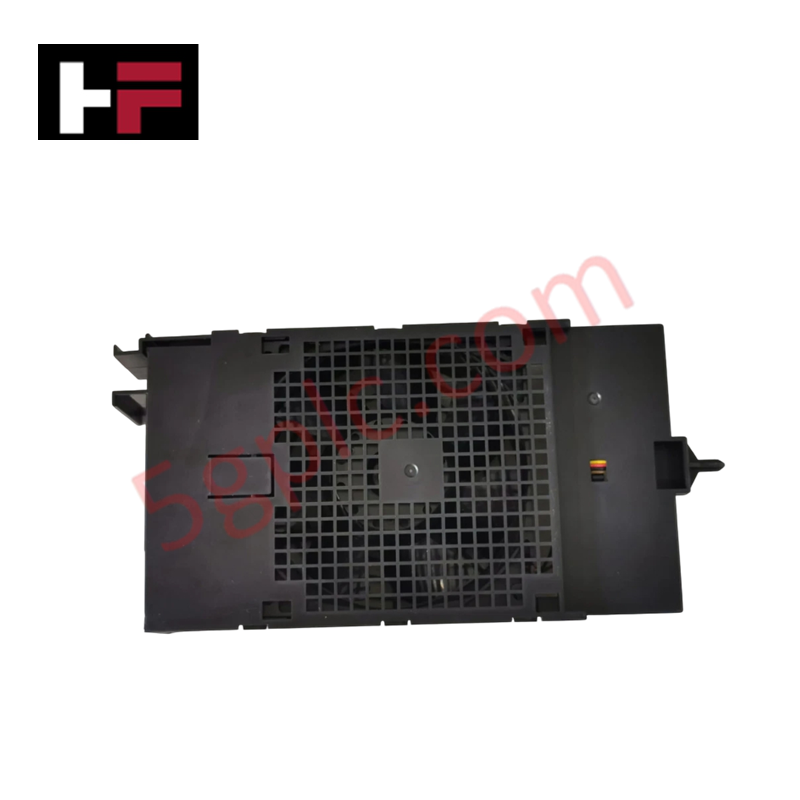

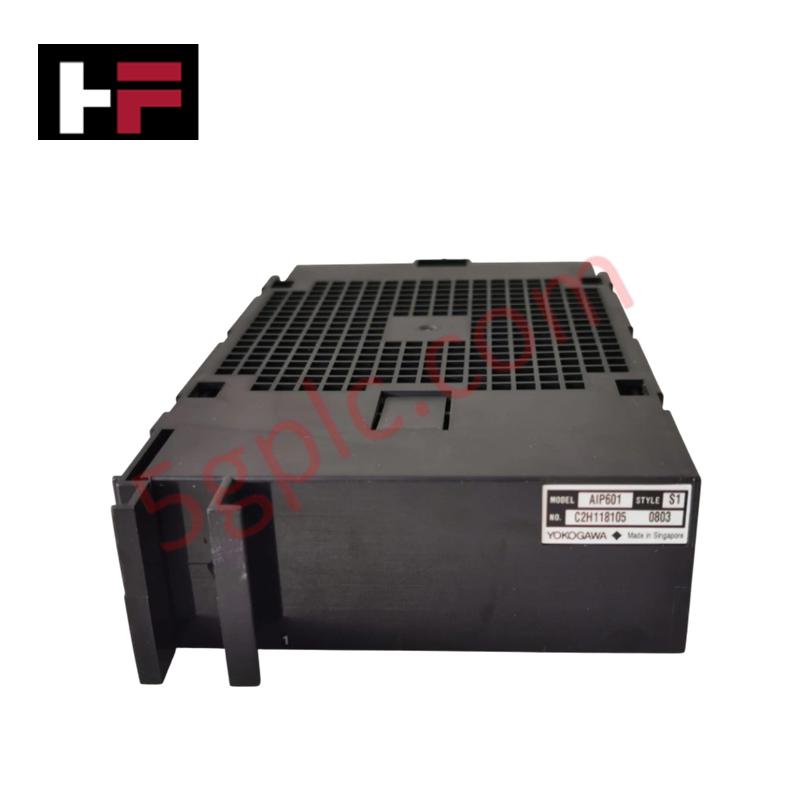

The Yokogawa AIP601 S1, also cataloged as the AIP601 Door Fan Unit, operates as a dedicated hardware component for thermal management and panel enclosure forced-air cooling within CENTUM CS and CENTUM VP platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | AIP601 S1 |
| Brand | Yokogawa |
| Origin | Japan |
| Compatible Systems | CENTUM CS, CENTUM VP |
| Rated Voltage | 250 V AC, Max 30 V DC |
| Detectable Flow Rate | 2 to 20 units |
| Module Capacity | Supports up to 6 I/O modules |
| FCU Support | 1 Field Control Unit |
| Network Interface | Dual-redundant Vnet/IP Interface |
| Battery Backup | Up to 72 hours for main memory |
| Power Distribution | Built-in HKU (supports dual or single power supply configurations) |
| Weight | 0.3 kg |
| Dimensions | 12.7 cm x 5.1 cm x 26.7 cm |
| Operating Temp | -10 to 60 deg C |
| Power Consumption | Powered via cabinet AC/DC distribution rail |
Yokogawa Channel-to-Channel Isolation & Enclosure Thermal Dissipation
Yokogawa control cabinets maintain specified internal ambient temperatures to protect processing logic and I/O interface circuits from thermal stress. The forced-air ventilation provided by the door fan unit prevents heat accumulation around system racks housing 4-20 mA HART loop protocol interfaces and high-density signal nodes. Maintaining steady airflow preserves component operational limits, preventing channel-to-channel isolation breakdown or signal drift induced by localized thermal gradients.
Frequently Asked Questions
Q: How does the AIP601 S1 fan unit interface with cabinet monitoring logic during fan stall conditions?
A: The fan unit provides tachometer or flow-rate detection outputs (2 to 20 units threshold) to the system HKU (Housekeeping Unit) to trigger cabinet thermal alarm contacts upon airflow reduction.
Q: Is the AIP601 S1 compatible with dual-redundant cabinet power distribution configurations?
A: Yes, the unit routes through the internal HKU infrastructure, which accepts dual or single power supply configurations operating across 250 V AC or up to 30 V DC rails.
Field Installation Guidelines
Position the AIP601 S1 into the designated door cutout or cabinet mounting panel. Secure all mechanical fasteners evenly to prevent chassis vibration during continuous fan operation. Connect power wiring to the cabinet distribution block following correct AC/DC line terminations, and route alarm feedback wiring to the HKU monitoring terminal block. Ensure air intake grilles remain free of dust accumulation by maintaining periodic filter inspection routines.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
