Product Details

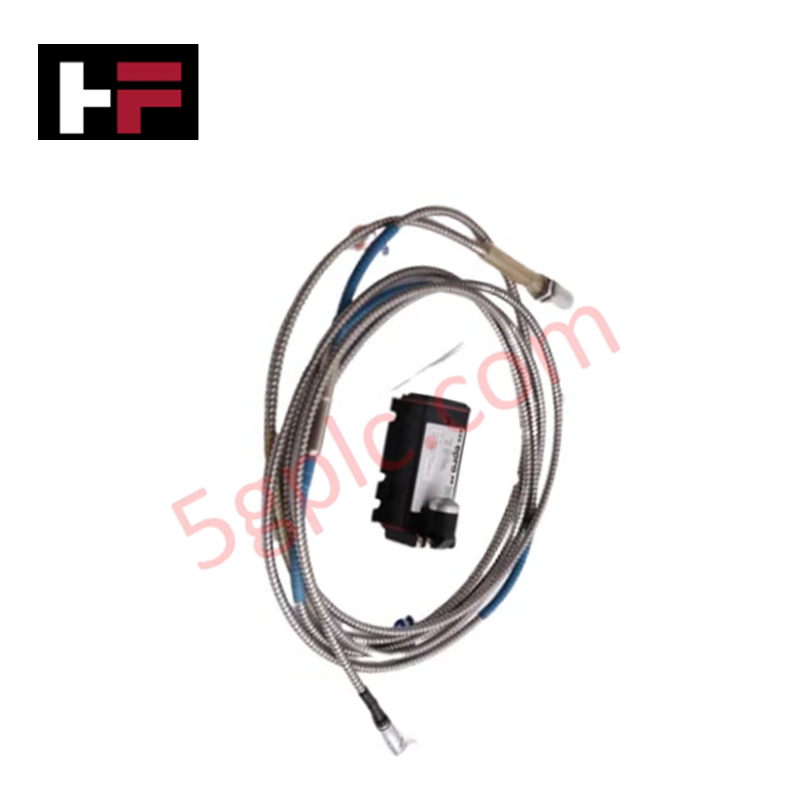

Configured for high-frequency displacement measurement in turbomachinery monitoring systems, the Emerson Epro PR6423/012-130 (PR6423/012-130) transducer paired with the CON021 signal converter provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | PR6423/012-130 + CON021 |
| Brand | Emerson Epro |
| Origin | Germany |
| Weight | Approx. 0.25 kg |
| Dimensions | Standard probe housing and converter geometry |
| Operating Temp | -30 deg C to +100 deg C (Converter); -35 deg C to +200 deg C (Sensor) |
| Power Consumption | -23 VDC to -32 VDC |
| Frequency Response | 0 to 20,000 Hz |
Gap Voltage Validation (-10 VDC targets)
The system utilizes an oscillator circuit to drive the transducer probe, creating an electromagnetic field for displacement detection. To ensure accurate linearization, the system necessitates precise gap voltage validation during commissioning. The converter centers its output characteristic around a nominal target of -10 VDC, representing the mid-point of the physical measurement gap. Maintenance of this -10 VDC baseline is mandatory for accurate signal tracking; significant deviations indicate mechanical misalignment, transducer saturation, or degradation of the conductive target surface.
Frequently Asked Questions
Q: Does the CON021 signal converter support hot-swap replacement in a monitoring rack?
A: Yes, the CON021 is designed for integration into monitoring racks where it supports replacement while the system is energized, provided the rack backplane architecture supports hot-swapping.
Q: How does the initial air gap setting affect system accuracy?
A: The system is calibrated for an initial air gap of 0.5 mm. Maintaining this mechanical gap is mandatory to ensure the probe operates within the linear portion of its voltage-to-distance characteristic curve.
Field Installation Guidelines
- Mount the transducer in a rigid, vibration-isolated bracket to minimize extraneous mechanical noise and prevent housing fatigue.
- Ensure the measurement target surface is clean and free of non-conductive coatings to maintain the required electrical conductivity.
- Set the nominal air gap at 0.5 mm using a non-metallic feeler gauge to prevent contact damage to the sensor tip.
- Route signal cabling through grounded metallic conduit, keeping lines physically separated from high-current AC power lines to mitigate electromagnetic interference.
- Terminate the signal shield at the monitoring system (DCS/TSI) rack only to prevent ground-loop current injection into the converter circuit.
