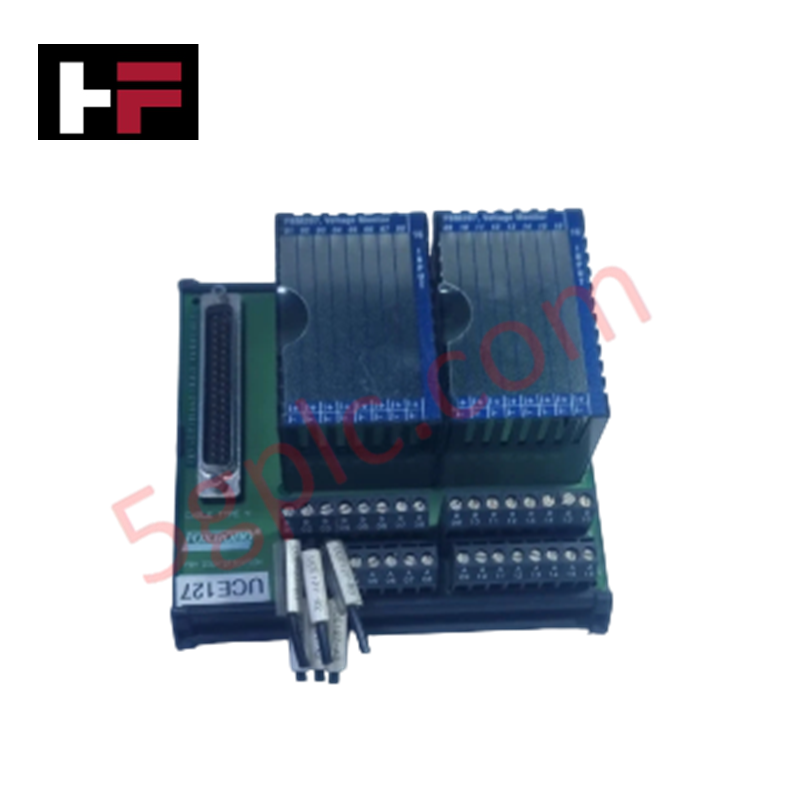

Foxboro FBM207 P0916JS Voltage Monitor/Contact Sense Input Module

The Foxboro FBM207 P0916JS, also cataloged as the FBM207 Voltage Monitor/Contact Sense Input Module, operates as a dedicated hardware component for monitoring 16 discrete input channels within Foxboro I/A Series DCS platforms.

Hardware Specifications

Process Instrumentation Connectivity and Isolation

The FBM207 module is engineered to manage diverse discrete signal levels while maintaining stringent channel-to-channel isolation. This electrical separation is mandatory to prevent common-mode noise propagation and ground loop currents across the I/O subsystem. The input architecture is optimized to interface with standard field voltages, providing a direct transition path for discrete binary states into the Foxboro control database. By utilizing galvanic isolation between input channels and the backplane, the module protects system logic from high-voltage transient occurrences originating from field-side wiring or instrumentation faults.

Frequently Asked Questions

Q: Can the FBM207 be hot-swapped while the I/A Series DCS is active?

A: Yes, the module supports hot-swappable installation. It can be removed from or inserted into the mounting baseplate while the system is energized without disrupting the operations of the connected field control processor.

Q: Are there limitations regarding wire gauge when using this module for 240 VAC inputs?

A: While the module handles 240 VAC signal states, wiring must adhere to standard industrial electrical codes for high-voltage isolation. Ensure that the selected field termination assembly is rated for the applied voltage and that wire gauges are appropriate for the thermal load and current carrying requirements of the circuit.

Field Installation Guidelines

• Mounting: Ensure the module is properly indexed and seated within the modular baseplate. The mechanical latch must be fully engaged to guarantee the integrity of the redundant 2 Mbps module fieldbus connection.
• Grounding: To maintain effective channel isolation, ensure the field common signal reference is strictly managed at the terminal block level. Do not interconnect commons from different voltage zones.
• Segregation: Due to the wide range of supported voltages (60 VDC to 240 VAC), ensure physical segregation between low-voltage signal wiring and high-voltage AC circuits within the cabinet cable ducting to prevent induced noise and potential cross-coupling.
