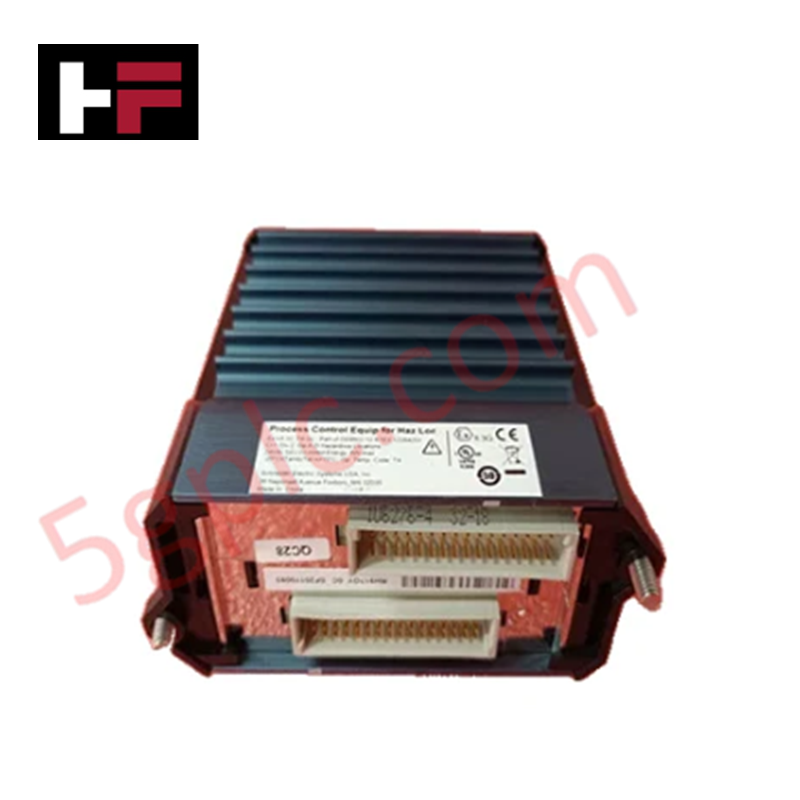

Foxboro FBM207C RH917GY Voltage Monitor/Contact Sense Input Module

Configured for high-density discrete status acquisition within I/A Series DCS platforms, the Foxboro FBM207C RH917GY, also cataloged as the FBM207C Voltage Monitor/Contact Sense Input Module, provides direct physical execution for 16 channels of DC voltage monitoring or contact sensing. This module interfaces with field devices via compatible Termination Assemblies (TAs) to facilitate discrete input status tracking across varied industrial control network platforms.

Hardware Specifications

Process Control and Channel Isolation

The FBM207C supports a versatile input range, accommodating 2-wire inputs from DC voltage sources or discrete solid-state switches. When integrated with the appropriate Termination Assemblies, the module handles field inputs across voltage thresholds including 60 V DC, 120 V AC/125 V DC, and 240 V AC. Each channel is engineered to maintain high signal fidelity, ensuring reliable status transition detection even in environments with significant electrical noise. The module architecture is designed for seamless communication with the I/A Series control processor, ensuring deterministic data acquisition across the fieldbus.

Frequently Asked Questions

Q: Can the FBM207C be used for monitoring both AC and DC signals simultaneously?

A: The module's capability is determined by the specific Termination Assembly (TA) utilized. The TA must be selected to match the input voltage type (AC or DC) for the required application, as the module hardware requires appropriate signal conditioning at the termination point.

Q: Is this module capable of monitoring high-voltage inputs directly?

A: No. The FBM207C relies on external Termination Assemblies to scale and isolate field voltages (such as 240 V AC) down to a level suitable for the module's input circuitry. Direct connection of high-voltage lines to the module terminals will cause permanent damage.

Field Installation Guidelines

1. Confirm the selected Termination Assembly (TA) matches the specific voltage class (60 V DC, 120 V AC, or 240 V AC) of the field devices to be monitored.
2. Secure the FBM207C into the designated rack slot, ensuring the backplane connector is fully engaged to establish data bus continuity.
3. Terminate all field input wiring at the TA, ensuring that common or reference lines are connected to the system ground where required by the wiring diagram.
4. Separate discrete input cabling from high-power output or motor control cabling to mitigate electromagnetic interference that can cause erroneous contact sense readings.
5. Inspect all wire terminations for mechanical tightness and verify the absence of stray wire strands that could induce short-circuit conditions on the input bus.
