Product Details

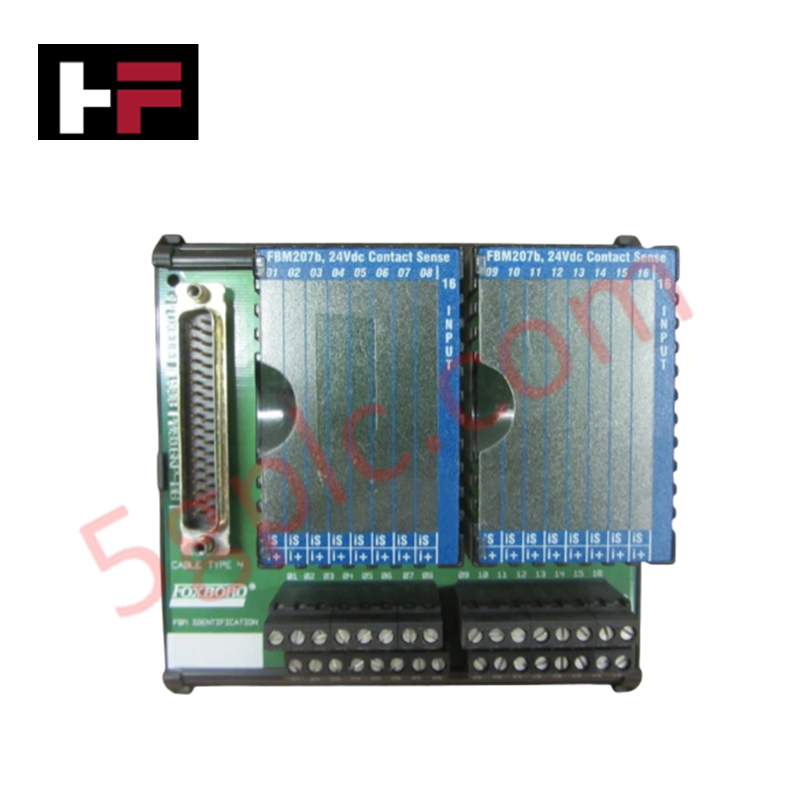

Configured for discrete status acquisition within I/A Series DCS platforms, the Foxboro P0916JS FBM207b, also cataloged as the FBM207b Compression Term Assembly, provides direct physical and electrical execution for 16 channels of contact sensing. This hardware component facilitates the field-side transition of discrete input signals into the control system, ensuring signal termination and voltage distribution for 24 VDC contact-based devices.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | P0916JS (FBM207b) |
| Brand | Foxboro |
| Weight | 0.23 kg |
| Dimensions | 190 mm x 89 mm x 64 mm |
| Voltage Rating | 24 VDC |
| Current Rating | 1 A |
| Mounting Type | DIN Rail |
DCS Process Control and Field Termination
The P0916JS Termination Assembly is engineered to support discrete input loops, providing a stable interface between external field sensors and the Foxboro I/A Series I/O modules. By utilizing compression-style termination, the assembly ensures a gas-tight mechanical connection for field wiring, mitigating long-term signal resistance fluctuations. This component is integral to maintaining the 4-20 mA HART loop protocol environment where discrete logic is required, as it supports per-channel field configuration and simplifies the grouping of field device signal returns for consistent channel-to-channel isolation.
Frequently Asked Questions
Q: Is this Termination Assembly (TA) compatible with voltage levels other than 24 VDC?
A: No. The P0916JS is rated specifically for 24 VDC operation. Application of AC voltages or DC voltages exceeding the 24 VDC rating may result in component damage or failure of the contact sensing logic.
Q: Does the assembly support active or passive contact sensing?
A: The P0916JS is designed to support passive contact sensing (dry contacts) by providing the necessary 24 VDC loop potential to the field devices, enabling the DCS to detect open or closed contact states.
Field Installation Guidelines
- Mount the assembly onto a standard 35 mm DIN rail, ensuring the locking mechanism is engaged to prevent vertical movement.
- Ensure that field wiring is stripped to the manufacturer's recommended length before insertion into the compression terminals to prevent exposed conductors.
- Tighten compression screws to the specified torque to guarantee a low-resistance electrical connection; avoid over-tightening which may crack the terminal block housing.
- Maintain proper cable management by routing field signal wires away from high-power AC lines to prevent induced noise on the contact sensing loops.
- Verify field device wiring polarity prior to energizing the 24 VDC power supply to avoid potential shorts on the input channels.
