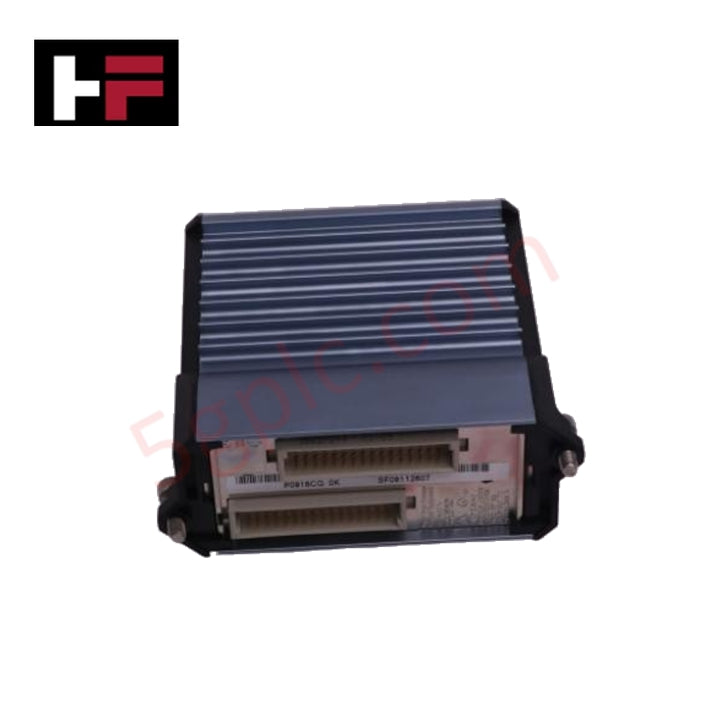

Foxboro FBM206 I/A Series Pulse Input Module

Foxboro FBM206 I/A Series Pulse Input Fieldbus Module

The Foxboro FBM206, also cataloged as the FBM206 Pulse Input Fieldbus Module, operates as a dedicated hardware component for high-speed signal processing within Foxboro I/A Series and Foxboro Evo DCS platforms. The module accepts up to eight independent pulse input channels from field transmitters, including turbine flowmeters, vortex flowmeters, and rotational speed sensors. Communicating across a redundant 2 Mbps Module Fieldbus, the board converts incoming 7 to 27 VDC pulse trains into digital data for precise rate measurement and totalization.

Hardware Specifications

Process Control and Digital Interface

Each input channel features dedicated galvanic isolation to prevent cross-talk and eliminate ground loop interference between field sensors and the central processor backplane. Supporting 4-20 mA HART loop protocol routing alongside discrete digital frequency lines in shared termination cabinets, the module incorporates robust signal-conditioning circuits that maintain totalization accuracy without missing pulses across its full 10 Hz to 25 kHz range. Onboard microprocessor logic handles individual meter scaling and totalization parameters before transmitting process data over the redundant 2 Mbps Fieldbus.

Frequently Asked Questions

Q: How does the module handle power distribution to connected field sensors?

A: The module provides an integral 24 VDC field device supply delivering up to 30 mA per channel to power external solid-state sensors, vortex transmitters, or pulse transducers directly.

Q: What mechanisms prevent signal loss during high-frequency pulse acquisition?

A: Integrated hardware counters and galvanic optocouplers maintain pulse count integrity up to 25 kHz, delivering an accuracy of 0.01% of reading with zero missed pulses within the 10 Hz to 25 kHz operating band.

Q: Can the module be replaced while the system is powered?

A: Yes, the modular chassis design supports hot-swapping into standard Foxboro baseplates, allowing technicians to replace the unit without disrupting communication on the redundant Module Fieldbus.

Field Installation Guidelines

Align the module housing with the designated slot on the Foxboro I/A Series baseplate and push firmly until the locking mechanisms engage. Secure all baseplate mounting hardware to ensure continuous contact with the backplane bus. Connect a 14 AWG earth ground wire from the baseplate grounding stud directly to the main cabinet ground bar to maintain an effective low-impedance path for transient surge suppression.

Route incoming pulse signal lines through DIN-rail mounted Termination Assemblies (TA), maintaining terminal connections using twisted-pair shielded cabling up to a maximum length of 30 m. Ground all cable shields at a single chassis ground point to prevent ambient electrical noise from interfering with high-speed pulse detection. Technicians must wear a grounded ESD wrist strap whenever handling unmounted modules or adjusting field wiring termination connections.
