Product Details

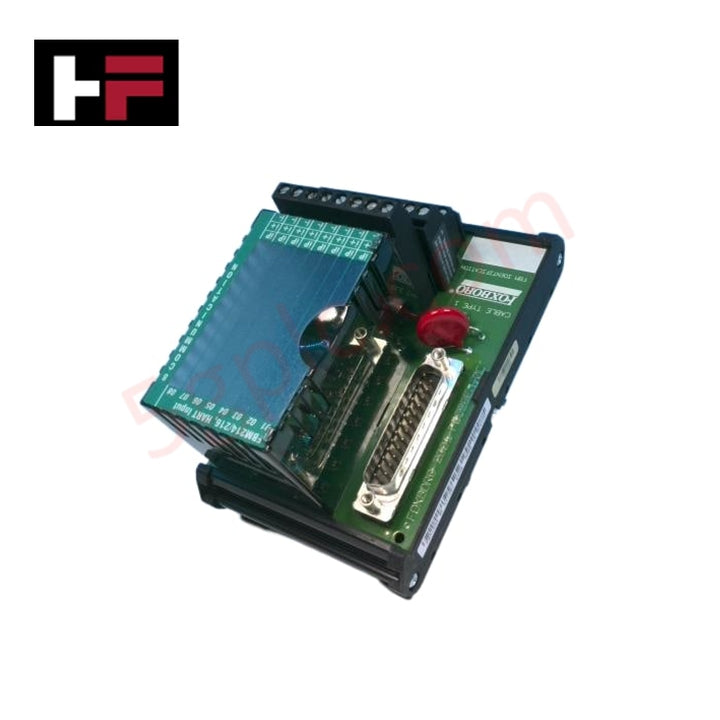

Foxboro FBM214 P0916BX HART Input Module Terminal Assembly
The Foxboro FBM214 P0916BX, also cataloged as the FBM214 HART Communication Input Interface Module, operates as a dedicated hardware component for 8-channel analog input acquisition and HART signal processing within Foxboro I/A Series 200 Series platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | FBM214 P0916BX |
| Brand | Foxboro / Schneider Electric |
| Origin | USA |
| Weight | 284 g (Module) / 3.00 lbs (TA) |
| Dimensions | 102 mm x 45 mm x 104 mm |
| Operating Temp | -20 to +70 deg C |
| Power Consumption | 7 W Maximum |
| System Platform | Foxboro I/A Series 200 Series |
| Input Channels | 8 analog input channels (0-20 mA DC) |
| Analog Accuracy | +/-0.03% of full scale (15-bit resolution) |
| Communication Speed | 1200 baud (HART FSK, 2 messages/second) |
| Isolation Voltage | Group-isolated (isolated from ground and module logic) |
4-20 mA HART Loop Protocol & Channel-to-Channel Isolation
The FBM214 P0916BX incorporates integrated 24 VDC transmitter power distribution across its 8 analog channels to drive field-side 4-20 mA current loops. The module extracts digital HART Frequency Shift Keying (FSK) signals superimposed on the analog current, processing secondary variables and diagnostic data at a rate of 2 messages per second per channel. Galvanic group isolation isolates the field wiring from the internal module logic and ground bus, preventing common-mode noise and ground loops from compromising the 15-bit sigma-delta data conversion on the redundant 2 Mbps Module Fieldbus.
Frequently Asked Questions
Q: What is the physical relationship between the FBM214 and the P0916BX part number?
A: The FBM214 designates the 8-channel electronic input module, whereas P0916BX specifies the DIN-rail mounted 3-tier PVC compression Field Termination Assembly (FTA) that connects to the module via a 25-pin male D-subminiature cable.
Q: What are the input resistance and signal filtering specs for the analog current loop?
A: The input circuit provides a nominal sense resistance of 61.9 ohms (280 ohms minimum total input resistance) with a channel update rate of 100 ms and rejection ratings exceeding 100 dB common-mode and 95 dB normal-mode at 50/60 Hz.
Field Installation Guidelines
Mount the P0916BX termination assembly on a standard 32 mm or 35 mm DIN rail inside the field enclosure. Route the 8-channel 4-20 mA transmitter field wiring to the 3-tier compression terminal block, ensuring signal wire shields terminate at the cabinet earth ground point. Connect the termination assembly to the FBM214 baseplate interface using a dedicated Type 1 25-pin D-sub cable, keeping cable lengths within the maximum 30 m limit to prevent signal attenuation and preserve HART FSK communication integrity.
