Product Details

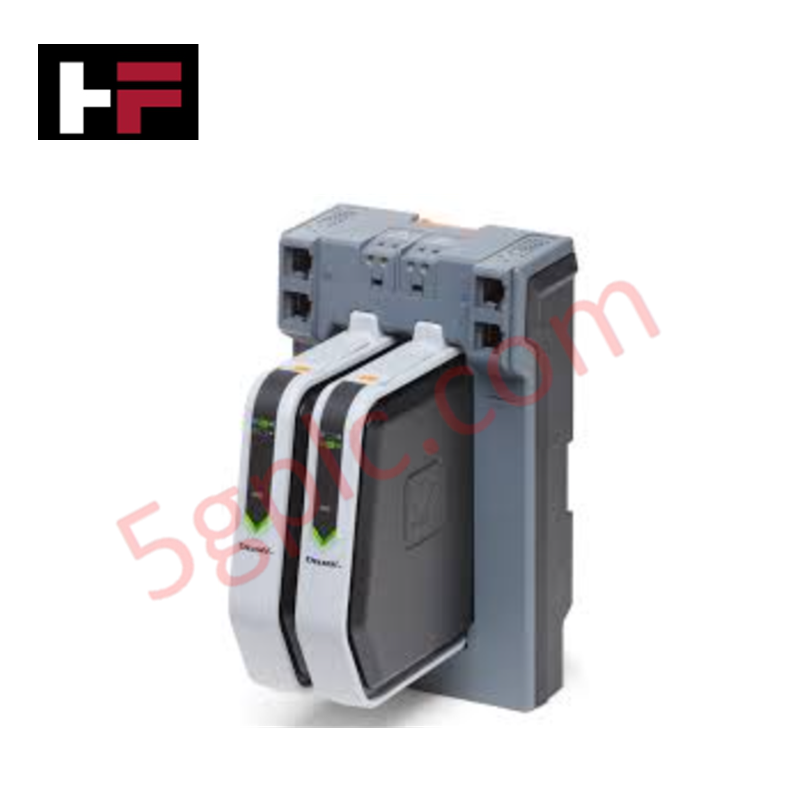

Configured for high-bandwidth protocol integration in DeltaV control networks, the Emerson SE4101 (SE4101 Ethernet I/O Card) provides direct physical/electrical execution of Modbus TCP, EtherNet/IP, IEC 61850 MMS, and OPC UA data acquisition.
Hardware Specifications
| Parameter | Specification |
| Model | SE4101 |
| Brand | Emerson |
| Origin | USA |
| Weight | Not specified |
| Dimensions | Standard DeltaV I/O module form factor |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | 7 W (Simplex) / 13 W (Redundant) |
| Input Voltage | 24 VDC +/- 10% |
| Device Capacity | Up to 256 Ethernet devices / 32,000 signals |
Process Control: FOUNDATION Fieldbus / Profibus PA connectivity
The SE4101 enables seamless data integration between third-party Ethernet-based field instrumentation and the DeltaV control environment. By supporting a broad array of industrial communication protocols, the card acts as a high-speed gateway capable of scanning up to 32,000 process signals from 256 unique Ethernet nodes. The hardware architecture maintains strict electrical separation through channel-to-channel isolation on the I/O interface, ensuring that faults within the Ethernet physical layer do not impact the core controller backplane bus. This protocol-agnostic design allows for deterministic data exchange while providing the necessary buffering to handle varying network latencies characteristic of complex Ethernet topologies.
Frequently Asked Questions (FAQ)
Q: What are the power requirements for redundant vs. simplex configurations?
A: In a simplex configuration, the module consumes a maximum of 325 mA, whereas the redundant configuration increases the load to a maximum of 575 mA at 24 VDC. Ensure the power carrier is sized to accommodate these specific current requirements.
Q: Is the firmware on the SE4101 field-upgradeable?
A: Yes. The SE4101 supports firmware flash compatibility via the DeltaV engineering workstation. It is mandatory to follow the established delta-update procedures to ensure protocol stack integrity and system-wide synchronization.
Field Installation Guidelines
-
Mounting: Seat the SE4101 into the dedicated Ethernet I/O slot on the DeltaV carrier. Ensure the backplane interface pins are clean and the locking lever is secured to maintain a stable electrical connection.
-
Network Wiring: Use industrial-grade, shielded RJ45 Ethernet cabling. Segregate network traffic from high-voltage AC power conduits to minimize electromagnetic interference (EMI) and signal attenuation.
-
Grounding: Terminate the carrier assembly to the cabinet earth ground bus. Proper grounding is necessary to ensure the effectiveness of the module's integrated surge protection and noise immunity.
-
Verification: Confirm link status via the module's diagnostic LEDs and the DeltaV control workstation. Ensure the device IP addressing and protocol mapping are correctly configured before enabling scan services for the connected Ethernet nodes.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
