Product Details
Product Overview

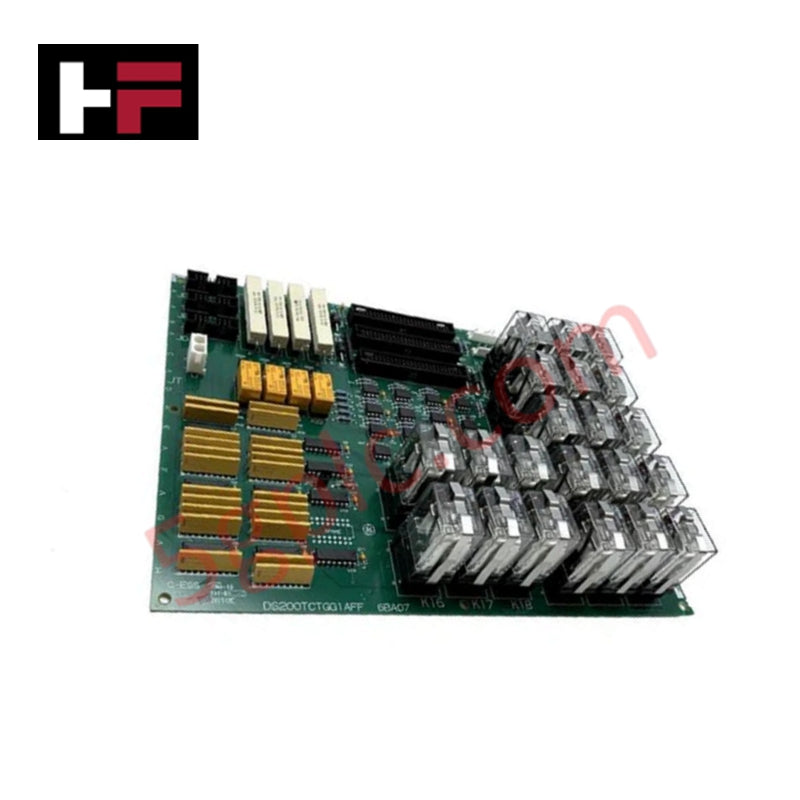

The General Electric DS200TCTGG1AFF is a high-performance Simplex Trip Board designed specifically for the Speedtronic Mark V turbine control system. Functioning as a critical safety interface within the SDCC Mark V architecture, this board is responsible for monitoring fault conditions and executing emergency shutdown sequences. By providing hardware-level trip logic, the DS200TCTGG1AFF ensures that industrial turbines and associated machinery are protected from catastrophic failure during abnormal operating states.
Technical Specifications
The DS200TCTGG1AFF is a medium-sized trip module built to meet the rigorous standards of power generation control environments.
-
Model Number: DS200TCTGG1AFF
-
Manufacturer: General Electric (GE)
-
System Series: Speedtronic Mark V
-
Module Type: Simplex Trip Control Card
-
Compatibility: SDCC Mark V Drive Control Systems
-
Functional Designation: Medium Trip Board (TCTG)
-
Hardware Configuration: AFF Revision (G1 Base Artwork)
-
Onboard Indicators: Features diagnostic LEDs for real-time status monitoring of trip relays
-
Physical Weight: 1.34 kg (2.95 lbs)
Operational Role and System Integration
The DS200TCTGG1AFF serves as the physical execution point for protective logic. Unlike redundant TMR configurations, this "Simplex" board is typically utilized in systems where a single-channel trip architecture is sufficient or as part of a localized protection group. It interfaces with various sensors and control processors to detect overspeed, overtemperature, or loss of flame, instantly de-energizing fuel solenoids and trip headers to bring the turbine to a safe stop.
Frequently Asked Questions
What is the difference between a Simplex and a TMR trip board?
While TMR (Triple Modular Redundant) boards use three cores for voting logic, the Simplex DS200TCTGG1AFF operates on a single-channel principle. It is commonly found in smaller turbine control packages or auxiliary control modules within the Mark V system.
Does the "AFF" suffix affect board installation?
The "AFF" suffix denotes specific functional revisions and firmware compatibility. When replacing a legacy board, it is essential to verify that the revision matches your existing software configuration to ensure correct signal timing and relay response.
Technical Comparison: TCTG vs. TCTL
The TCTG (DS200TCTGG1AFF) is categorized as a "Medium" trip board, whereas the TCTL is often utilized for "Large" or more complex trip string architectures. The TCTG is optimized for core protection functions where a moderate number of trip inputs and relay outputs are required.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
