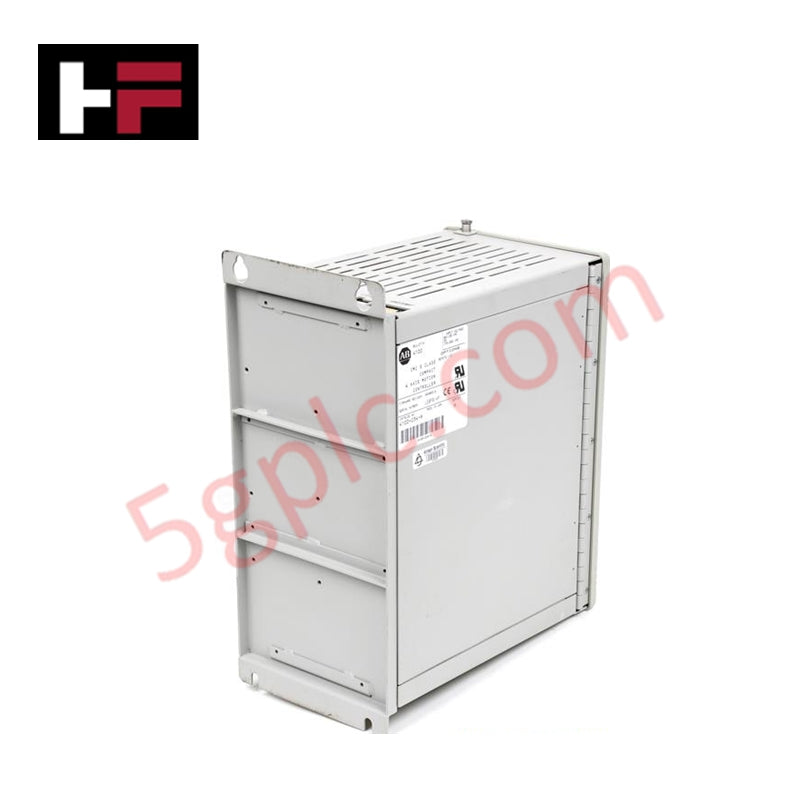

Allen-Bradley 4100-234-R IMC S-Class Compact Motion Controller

Product Overview

The Allen-Bradley 4100-234-R functions as a high-performance standalone motion controller within the IMC S-Class product line. This unit manages up to four axes of motion with precision, utilizing an Intel 80960SB microprocessor clocked at 16 MHz. It serves as a central hub for complex synchronized movements in compact automation cells. We supply this controller as 100% Brand New and Original, ensuring legacy systems maintain the exact timing and signal integrity required for mission-critical production lines.

Technical Specifications

The 4100-234-R integrates robust processing power with extensive I/O capabilities to handle high-resolution motion tasks.

• Manufacturer: Allen-Bradley / Rockwell Automation

• Product Line: IMC S-Class

• Platform: Stand Alone / Compact

• Axis Count: 4-Axis Control

• Microprocessor: Intel 80960SB at 16 MHz

• Resolution: 16 bits

• Analog Output Range: +/- 10 Volts DC

• Discrete Inputs: 20 Dedicated Channels

• Input Voltage (Main): 90-132V AC or 175-264V AC (Selectable)

• I/O Power Input: 5-40 Volts DC

• Communication: Serial Port (Standard); Remote I/O (Optional)

• Weight: 17.00 lbs (7.71 kg)

Engineering Advantages

• High-Resolution Servo Command: The 16-bit resolution architecture ensures exceptionally smooth velocity profiles and positioning accuracy. This high granularity allows the controller to command subtle adjustments in motor torque and speed, reducing mechanical wear on drive components.

• Intel 80960SB Processing Power: The dedicated 32-bit RISC microprocessor handles complex kinematic calculations locally. By offloading these tasks from a primary PLC, the 4100-234-R achieves faster loop update rates and superior synchronization between all four axes.

• Flexible Industrial Networking: Standard serial ports facilitate direct peripheral interfacing, while the Remote I/O (RIO) option integrates the controller into larger Allen-Bradley architectures. This allows a master PLC-5 or SLC 500 system to monitor motion status and trigger profiles over the RIO network.

• Robust I/O Density: 20 dedicated discrete inputs allow for direct wiring of limit switches, home sensors, and operator interface buttons. This direct-to-controller wiring minimizes signal propagation delay, ensuring the system responds to physical safety or end-of-travel limits in real-time.

FAQs

• How do I configure the input voltage for the 4100-234-R? The unit supports both 110V and 220V AC nominal ranges. You must verify the internal jumper settings or terminal wiring according to the manual before applying power to prevent damage to the internal power supply module.

• Can I expand the communication capabilities of this unit? Yes. While the unit comes with a standard Serial Port, it supports Remote I/O (RIO) as a communication option. This enables the controller to act as a remote station on an Allen-Bradley RIO network, facilitating centralized data collection and command execution.

• What is the significance of the 16-bit resolution for my application? The 16-bit resolution provides 65,536 distinct points across the +/- 10V DC output range. This high resolution eliminates "stepping" in analog signals, which provides the fluid motion necessary for precision applications like CNC machining or robotic assembly.

• Is this unit compatible with modern motors? The 4100-234-R outputs a standard +/- 10V analog signal. It controls any servo drive or motor amplifier that accepts a standard analog velocity or torque reference command, making it a versatile choice for both legacy and newer drive hardware.
