Product Details

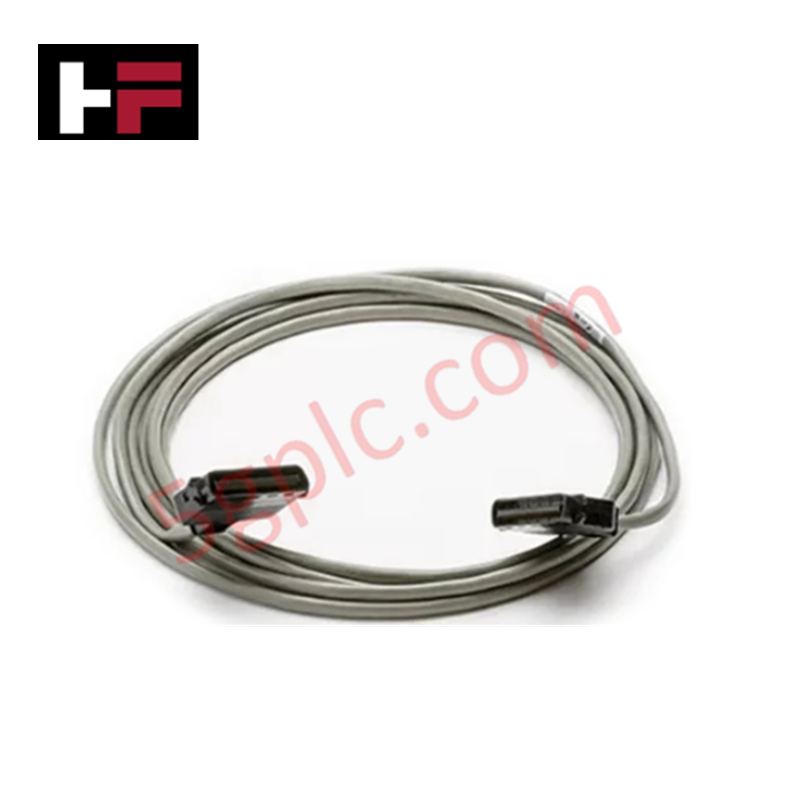

The Honeywell 51305387-300, also cataloged as the 51305387-300 Industrial Cable Assembly, operates as a dedicated hardware component for power and signal transmission within Honeywell Experion PKS, TDC/TPS, and PLC/DCS architectures. It establishes physical electrical routing between control modules, processors, and local I/O chassis while mitigating electromagnetic interference across internal cabinet backplanes.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51305387-300 |
| Brand | Honeywell |
| Origin | USA |
| Weight | 2.0 kg |
| Dimensions | Standard industrial cabinet assembly length |
| Operating Temp | -20 to 70 deg C |
| Power Consumption | Passive power and signal conduit (0 W internal) |
| Product Type | Industrial Cable Assembly |
| Primary Function | Power and signal interconnect |
| Insulation Type | Industrial-grade insulated jacket |
| System Compatibility | Experion PKS, TDC/TPS, PLC/DCS hardware |
Process Control Power Integrity & Loop Isolation
In distributed control systems (DCS), interconnect wiring must maintain signal purity and channel-to-channel isolation under heavy industrial electrical noise. The multi-conductor assembly is designed to carry low-voltage DC power and instrument bus signals without inducing cross-talk onto adjacent 4-20 mA HART loop protocol lines or fieldbus networks. The outer insulation jacket prevents capacitive coupling and shielding degradation, preserving continuous data throughput and power continuity between redundant process controllers and remote terminal blocks.
Frequently Asked Questions
Q: Does the cable assembly support hot-swapping or live replacement during system operation?
A: Live plugging depends on the specific host I/O module rating; power feed connections must be isolated at the branch breaker before disconnection to prevent connector pin arcing.
Q: How is shield drain grounding handled across this cable assembly?
A: Ground continuity is maintained through internal shielding bonded to the metal connector shell, grounding automatically upon mating with chassis ground points.
Field Installation Guidelines
- Verify that target controller baseboards or I/O racks are fully de-energized prior to seating or unseating the cable assembly connectors.
- Route the cable through designated low-voltage wiring troughs, ensuring physical separation from high-current AC drive cables and motor control leads.
- Observe the minimum static bending radius of 8 times the outer cable diameter to avoid damaging internal conductors or shield integrity.
- Align connector keyways precisely before applying axial insertion force to prevent bending terminal pins inside module receptacles.
- Secure all strain-relief hardware and captive retaining screws to resist operational vibration in industrial cabinet environments.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
