Product Details

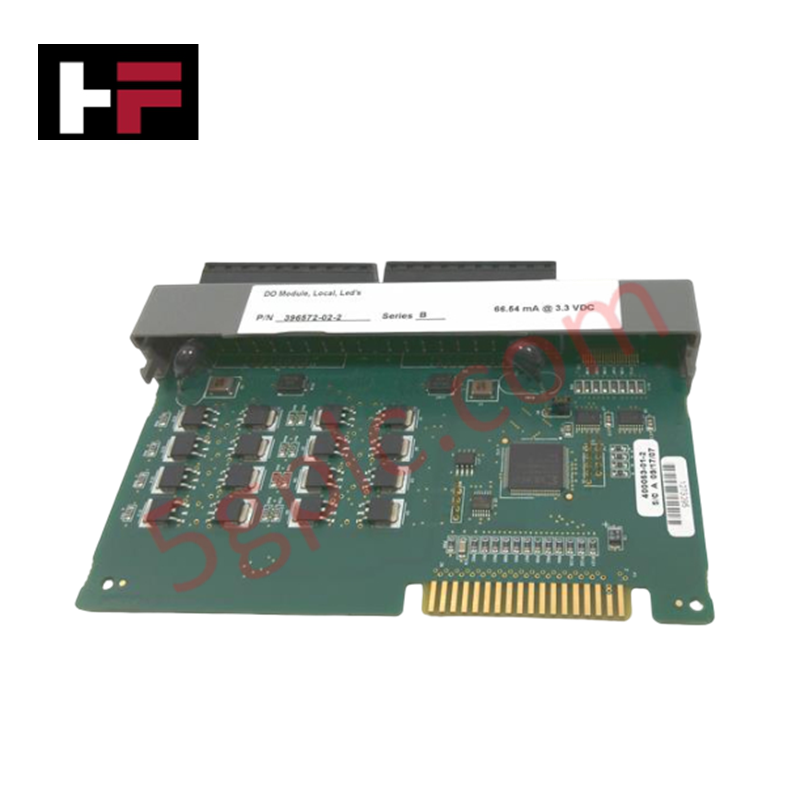

Configured for discrete field actuation and switching sequence execution in ControlWave PLC platforms, the Emerson 396572-02-2 (396572 Digital Output Module) provides direct physical/electrical execution. It interfaces local digital output signals through integrated driver circuitry and incorporates local LED status diagnostics.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 396572-02-2 |
| Brand | Emerson |
| Base Model | 396572 |
| Origin | USA |
| Weight | 0.50 lbs (0.23 kg) |
| Dimensions | Standard ControlWave Micro Module Footprint |
| Operating Temp | -40 to 70 deg C |
| Power Consumption | Backplane Logic Powered |
| Signal Type | Digital Output |
| Status Diagnostics | Onboard Local LED Indicators |
| System Compatibility | ControlWave PLC Systems |
Channel-to-Channel Isolation and Loop Diagnostics
The 396572-02-2 module provides galvanic channel-to-channel isolation across discrete output channels to isolate field-side switching transients from the backplane processing bus. This isolation prevents ground potential differentials and common-mode noise propagation, ensuring stable backplane communication even when deployed in rack assemblies alongside high-density 4-20 mA HART loop protocol analog cards.
Frequently Asked Questions
Q: How are channel operating states monitored locally on the 396572-02-2 module?
A: Individual onboard LED indicators display real-time discrete output states and fault conditions directly on the front panel.
Q: Does the 396572-02-2 require external field power for digital output driving?
A: Yes, while logic control is managed by the backplane, field load driving circuits require external DC loop power wired to the module terminal block.
Q: What protection measures exist to prevent electrical noise from feeding back into the system backplane?
A: Integrated optical channel-to-channel isolation barriers decouple the output field side from the internal backplane communication logic.
Field Installation Guidelines
- Ensure input power to the ControlWave chassis is disconnected prior to inserting or removing the 396572-02-2 module from the rack slot.
- Align the module circuit card with the chassis slot tracks and press firmly until the backplane edge connector seats fully.
- Tighten the top and bottom retaining screws to secure the module against vibration and establish chassis frame grounding.
- Route field output wiring and external DC power leads through designated cable channels, maintaining physical separation from AC power lines.
- Connect all field cable drain shields to a single grounding bus bar inside the enclosure to maintain immunity to transient surges.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
