Product Details

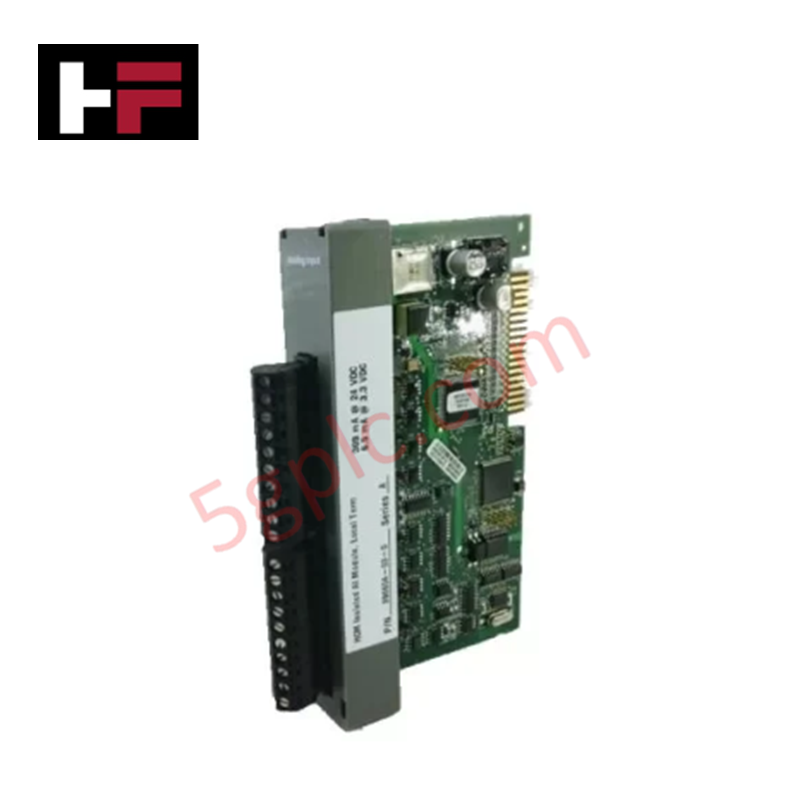

Configured for analog field signal processing and local control loop execution in ControlWave Micro architectures, the Emerson 396563-18-0 (396563 Analog Input/Output Module) provides direct physical/electrical execution. It digitizes 6 single-ended analog inputs and drives 2 analog outputs while providing integrated serial and Ethernet network communication interfaces.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 396563-18-0 |
| Brand | Emerson |
| Base Model | 396563 |
| Origin | USA |
| Weight | Approx. 0.35 kg |
| Dimensions | Standard ControlWave Micro Module Footprint |
| Operating Temp | -40 to 85 deg C |
| Power Consumption | Low Power ARM Processor Powered |
| Analog Inputs | 6 single-ended channels, configurable for 4-20 mA or 1-5 VDC |
| Analog Outputs | 2 channels, configurable for 4-20 mA or 1-5 VDC (11 to 30 VDC external supply) |
| Onboard Processor | ARM Microprocessor |
| Communication Ports | 2 x RS-232, 1 x RS-485 asynchronous serial, 1 x 10/100 MB Ethernet RJ45 |
| Surge Protection Limits | Complies with IEEE C37.90-1978 and IEC 801-5 specifications |
| Mounting Format | Panel or Wall-Mount Chassis Installation |
4-20 mA HART Loop Protocol and Channel Isolation
The 396563-18-0 module routes 4-20 mA current and 1-5 VDC voltage loop signals through dedicated analog-to-digital converters, ensuring high precision for field transmitter measurements. Galvanic isolation and transient surge protection complying with IEEE C37.90-1978 and IEC 801-5 shield the onboard ARM microprocessor and communication interfaces from external field line disturbances. Dedicated channel-to-channel isolation limits noise coupling and cross-talk across active 4-20 mA HART loop protocol parameters on shared signal paths.
Frequently Asked Questions
Q: What power source is required to drive the two analog output channels on the 396563-18-0?
A: The analog outputs require an external direct current power supply operating within an 11 to 30 VDC voltage range.
Q: What communication interfaces are integrated directly onto the 396563-18-0 module?
A: The hardware includes two RS-232 serial ports, one RS-485 asynchronous serial port, and one 10/100 MB Ethernet port for host system and local I/O network communication.
Q: What surge immunity standards does the module meet for field wiring inputs?
A: Onboard protection circuitry complies with IEEE C37.90-1978 and IEC 801-5 surge suppression standards to protect internal logic from high-voltage transients.
Field Installation Guidelines
- Mount the module chassis securely to a flat panel or enclosure wall, ensuring space for airflow around the module frame.
- Verify that main power to the ControlWave Micro rack is isolated before inserting or removing the module from the backplane interface.
- Terminate analog field inputs and external 11-30 VDC output loop supplies to the terminal block, adhering to 4-20 mA or 1-5 VDC jumper configuration settings.
- Ground all Ethernet and serial interface cable shields to the main cabinet protective earth (PE) bus bar to suppress high-frequency electromagnetic noise.
- Maintain clear separation between field signal cables and high-voltage power lines inside cable ducting to prevent signal degradation.
