Overview

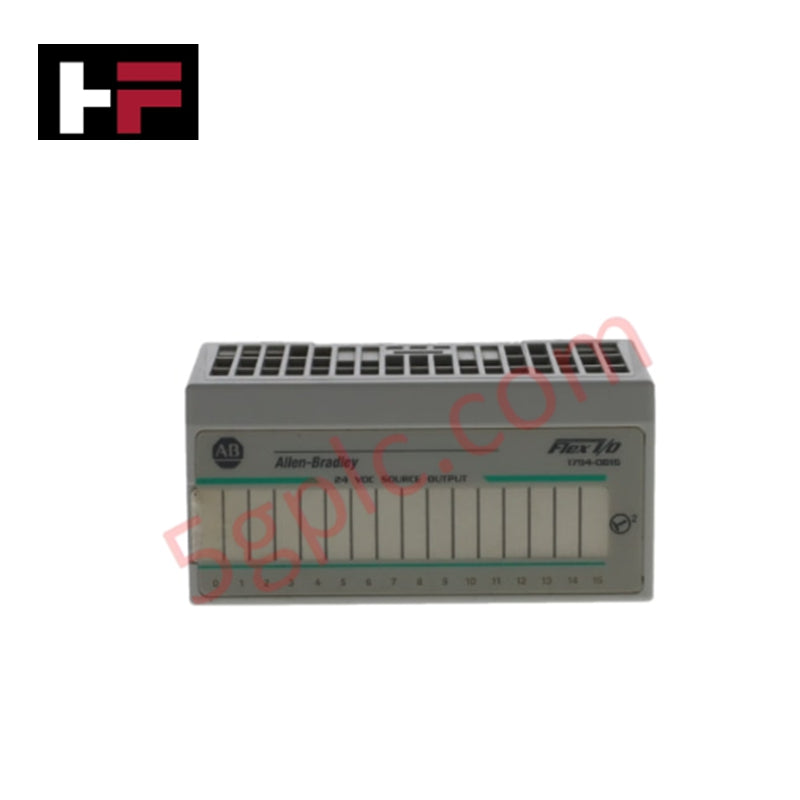

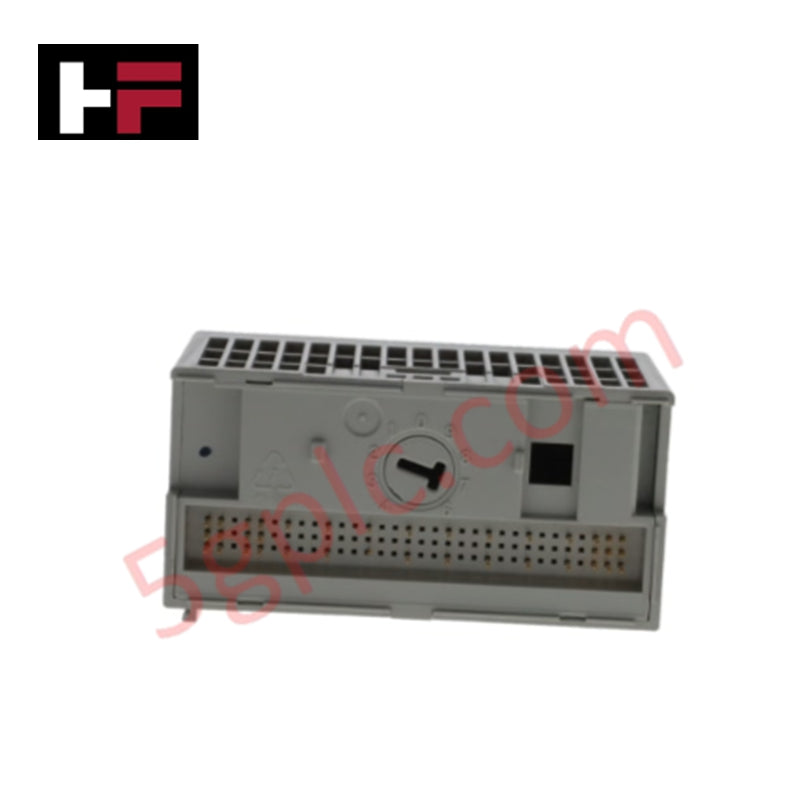

The Allen-Bradley 1794-OB16P is a FLEX I/O digital DC output module designed to provide 16 independent current sourcing channels for modular automation systems. It ensures reliable DC load control, fast response, and seamless integration with multiple terminal bases. Built for durability, it supports precise actuation in industrial environments and distributed control networks.
Technical Specifications
-
Number of Outputs: 16, current sourcing
-
Output Voltage: 10 V DC min, 24 V DC nominal, 31.2 V DC max
-
Output Current Rating: 8 A total (16 outputs @ 0.5 A each)
-
On-State Current Range: 1 mA to 500 mA per channel
-
Voltage Drop: Max 0.5 V DC
-
Surge Current: 2 A for 50 ms, repeatable every 2 seconds
-
Off-State Leakage Current: Max 0.5 mA per channel
-
Isolation Voltage: 50 V continuous (Basic Insulation), tested at 850 V DC for 1 s
-
Channel Isolation: No isolation between individual channels
-
Signal Delay: Off to On 0.5 ms, On to Off 1.0 ms
-
FlexBus Current: 80 mA @ 5 V DC
-
Max Power Dissipation: 5.3 W @ 31.2 V DC
-
Thermal Dissipation: 18.1 BTU/hr @ 31.2 V DC
-
Terminal Base Compatibility: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK
-
Fusing: Outputs are not internally fused; external fusing recommended using SAN-0 MQ4-800mA
Applications
-
Driving actuators, solenoids, and other DC-powered devices in distributed control systems
-
High-density modular FLEX I/O networks requiring precise and reliable DC output
FAQ
-
Q: Can the 1794-OB16P handle high-current loads?
A: Yes, total module output 8 A, individual outputs up to 500 mA -
Q: Are the outputs fused?
A: No, external fusing such as SAN-0 MQ4-800mA is recommended -
Q: Which terminal bases are compatible?
A: 1794-TB2, 1794-TB3, 1794-TB3S, 1794-TB3K, 1794-TB3SK
