Product Details
Product Description

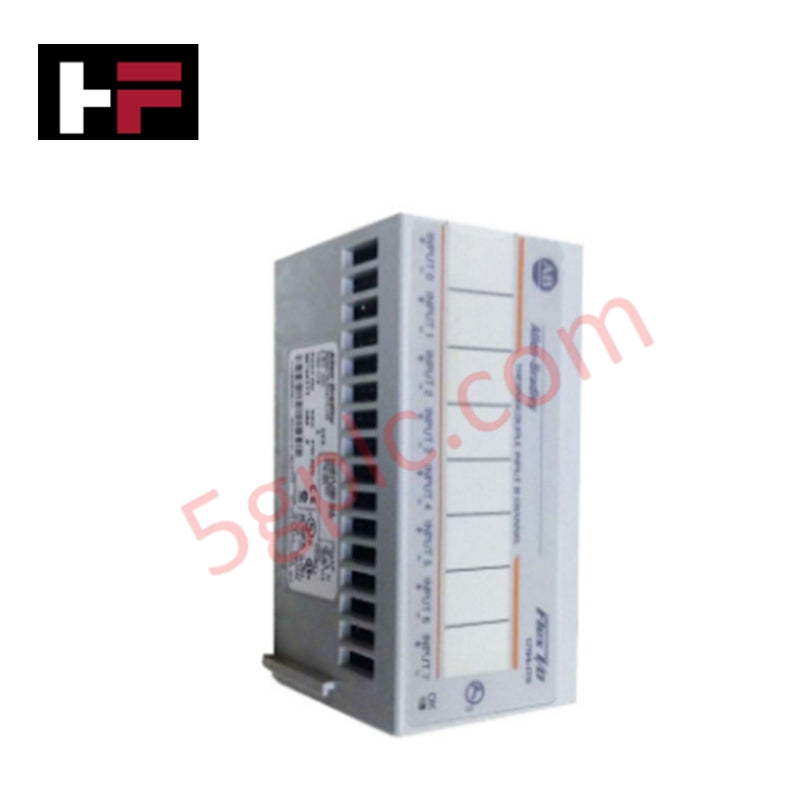

The 1794-IT8 is a high-precision thermocouple input module from Allen-Bradley’s FLEX I/O series, offering reliable temperature measurement for industrial control systems. It supports up to 8 thermocouple channels and is designed for integration with 1794-TB2, -TB3, and -TB3T terminal bases. The module provides robust protection, accurate signal conversion, and industrial-grade durability for demanding environments.
Technical Specifications
-
Manufacturer: Allen-Bradley
-
Model Number: 1794-IT8
-
Product Type: Thermocouple Input Module
-
Number of Inputs: 8 channels
-
Compatible Terminal Bases: 1794-TB2, -TB3, -TB3T
-
Nominal Input Voltage Range: -76.5 to +76.5 mV
-
Resolution: 16 bits (2.384 µV typical)
-
Indicators: 1 red/green power status LED
-
Flexbus Current: 20 mA
-
Power Dissipation: 3 W maximum @ 31.2 VDC
-
Thermal Dissipation: 10.2 BTU/hour maximum @ 31.2 VDC
-
Keyswitch Position: 3
-
Isolation Voltage: Tested 850 VDC for 1 s (inputs and user power to logic)
-
Data Format: 16-bit 2’s complement or offset binary (unipolar)
-
Channel Bandwidth: 0–2.62 Hz (-3 dB)
-
Operating Humidity: 5–95% non-condensing, IEC 60068-2-30
-
Vibration Resistance: 5 g @ 10–500 Hz, IEC 60068-2-6
-
Dimensions (L×W×H): 5.33 × 9.4 × 4.57 cm
-
Weight: 2 kg
Key Features
-
High Accuracy: 16-bit resolution ensures precise thermocouple readings.
-
Compact Form Factor: Small footprint for easy integration into FLEX I/O systems.
-
Visual Status: Red/green LED for power and module activity monitoring.
-
Industrial Durability: Tested for vibration, temperature, and isolation withstand.
-
Flexible Data Output: Supports 2’s complement and offset binary formats.
-
Easy Installation: Mounts on standard FLEX I/O terminal bases.
Applications
-
Process temperature monitoring in manufacturing and chemical plants
-
Integration in distributed FLEX I/O control systems
-
HVAC and environmental control requiring precise temperature input
-
Industrial automation requiring multiple thermocouple channels
FAQ
-
Q: How many thermocouple inputs does 1794-IT8 support?
A: The module provides 8 independent channels for temperature measurement. -
Q: What is the isolation capability?
A: Inputs and user power are tested to withstand 850 VDC for 1 second.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
