Product Details
Product Overview

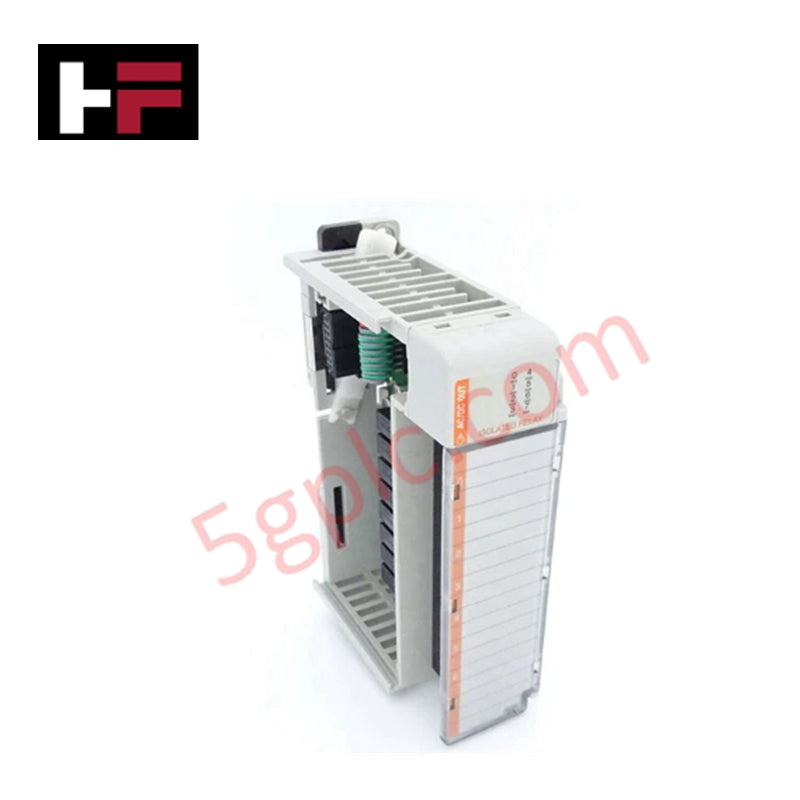

The Allen-Bradley 1769-OW8I is an 8-channel AC/DC relay output module designed for CompactLogix and MicroLogix 1500 controllers. Each output is individually isolated, supporting a wide operating voltage range and providing reliable control for discrete devices such as solenoids, lamps, and actuators. The module combines compact design, flexible mounting, and low power dissipation, making it suitable for high-density I/O configurations in industrial control panels.
Technical Specifications
-
Manufacturer: Allen-Bradley (Rockwell Automation)
-
Model Number: 1769-OW8I
-
Series: CompactLogix / Compact I/O
-
Product Type: Discrete Output Module
-
Number of Outputs: 8 individually isolated relay outputs
-
Output Type: AC/DC relay, normally open
-
Compatible Controllers: MicroLogix 1500, CompactLogix series
-
Operating Voltage Range: 5–265 VAC, 5–125 VDC
-
Signal Delay (ON): 10 milliseconds
-
Bus Current Draw: 125 mA @ 5.1 VDC, 100 mA @ 24 VDC
-
Wire Compatibility:
-
Solid: 22–14 AWG copper
-
Stranded: 22–16 AWG copper
-
Slot Width: 1
-
Power Supply Compatibility: 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
-
Heat Dissipation: 2.83 W
-
Mounting: DIN rail or panel mount
-
Series Designation: A and B
-
Communication Cable Support: 8-point I/O connections
-
Weight: 0.23 kg (0.50 lb)
Application Scenarios
The 1769-OW8I module is commonly used for:
-
Switching AC/DC loads in CompactLogix control panels
-
Controlling solenoids, relays, and indicator lights in machinery
-
Compact systems requiring reliable high-voltage relay outputs
-
Automation setups where individual isolation of channels is essential
Comparison with Similar Modules
-
1769-OW8: AC relay output module with similar 8-point design
-
1769-OB8: Transistor output module for DC load switching
-
1769-OW16: Larger 16-point relay output module for expanded systems
FAQ
Q: Can the 1769-OW8I control both AC and DC devices?
A: Yes, it supports AC loads up to 265 V and DC loads up to 125 V.
Q: How are the outputs isolated?
A: Each of the 8 channels is individually isolated to prevent interference between loads.
Q: Which CompactLogix power supplies are compatible with this module?
A: Compatible power supplies include 1769-PA2, 1769-PB2, 1769-PA4, and 1769-PB4.
