Product Details
Overview

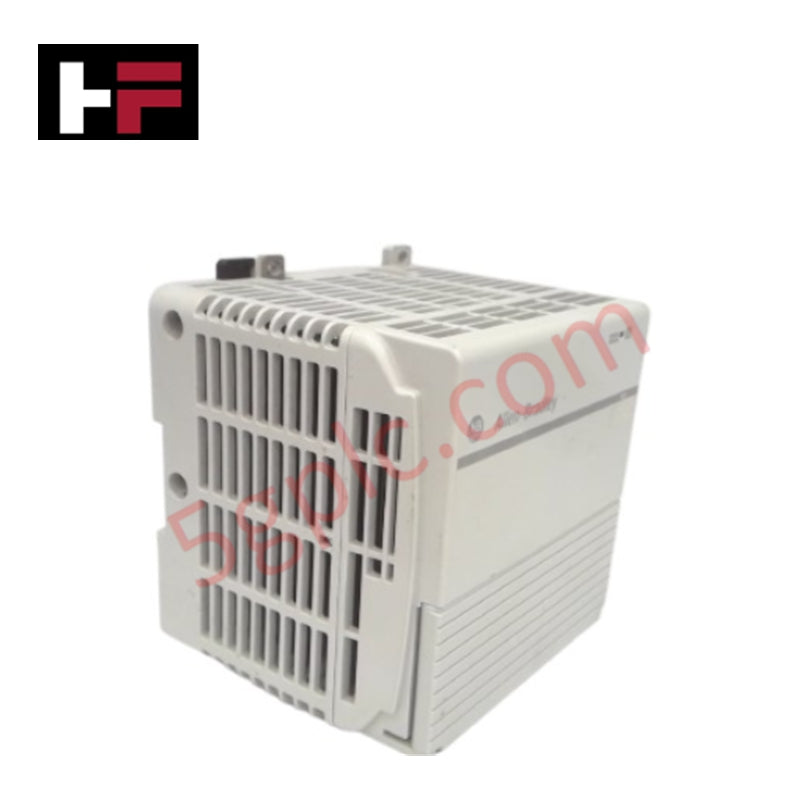

The 1768-PB3 is a DC power supply module from Allen-Bradley’s CompactLogix series, designed to deliver stable power to 1768 and 1769 CompactLogix controllers. Its open-type enclosure allows flexible DIN rail or panel mounting, ensuring reliable operation in industrial environments.
Technical Specifications
-
Brand & Model: Allen-Bradley 1768-PB3
-
Product Type: CompactLogix DC Power Supply Module
-
Series: CompactLogix PAC
-
Module Type: Power Supply
-
Compatible Controllers: 1768 and 1769 CompactLogix
-
Input Voltage Range: 16.8–31.2 VDC
-
Backplane Output / Ride-through Interval: Min 5 ms @ 90 W
-
Extended Hold-up Interval: 8–12 ms @ 1.25 W
-
Front Panel Output Voltage: 18–27.6 VDC
-
Mounting Options: DIN Rail or Panel Mount
-
Operating Temperature: 0–60°C (32–140°F)
-
Storage Temperature: -40–85°C (-40–185°F)
-
Vibration Resistance: 5g, 10–500 Hz
-
Shock Resistance: 30 g
-
Isolation Voltage: 30 V Continuous
-
Backplane Current Draw: 1.4 A @ 24 VDC
-
Power Consumption: 33.6 W
-
Power Dissipation: 7.5 W
-
Weight: 2.25 lbs (1.02 kg)
-
Enclosure: Open-type
Applications
Ideal for providing reliable DC power to CompactLogix controllers in automation systems, including factory floor PLC racks and remote control panels.
FAQ
Q: Can the 1768-PB3 support both 1768 and 1769 series controllers?
A: Yes, it is fully compatible with both series of CompactLogix controllers.
Q: What is the maximum input voltage for this power supply?
A: The module supports 16.8–31.2 VDC input.
Q: How is the module mounted?
A: It supports DIN rail and panel mounting options.
Additional Information
- 100% Genuine Parts: All products are original and authentic, ensuring reliable industrial performance.
- 30-Day Refund Guarantee: Return any in-stock item within 30 days in original, unopened packaging for a full refund (excluding shipping and fees).
- 12-Month Warranty: Covers defects in materials or workmanship; excludes misuse, normal wear, or unauthorized modifications.
- Worldwide Shipping: We ship via USPS, UPS, FedEx, and DHL. Delivery times vary by country and may be subject to customs or import fees.
- Support & Contact: Technical and warranty assistance is available anytime. Contact us here: Contact.
- Purchase Guidance: Check product specifications and compatibility carefully before ordering to ensure proper application.
