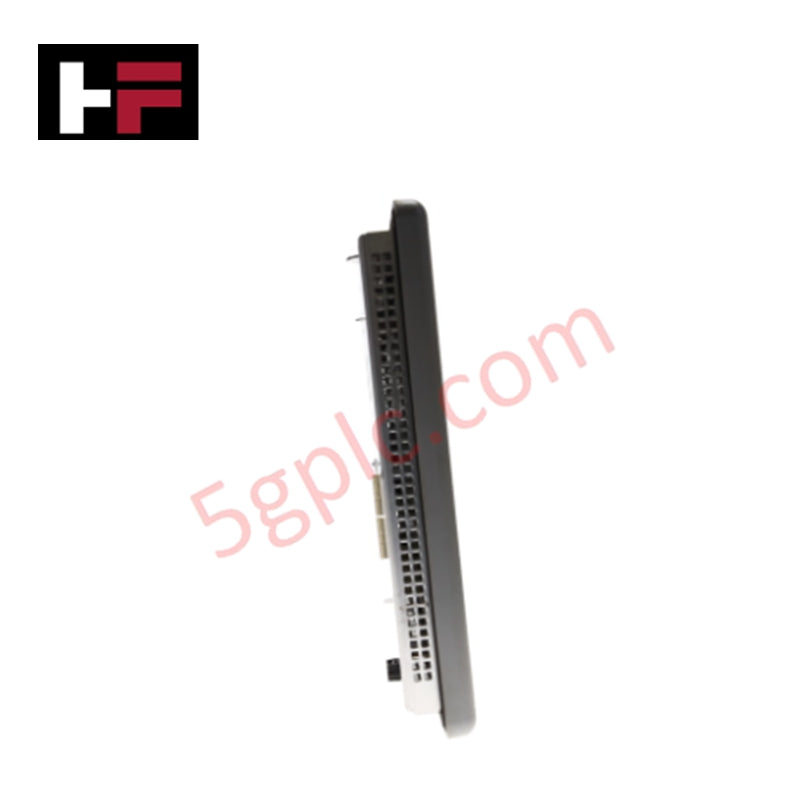

Allen-Bradley 2711P-RDT12C PanelView Plus 12.1-Inch Color Touch Display Module

Overview

The Allen-Bradley 2711P-RDT12C is a 12.1-inch color touchscreen display module designed for use with PanelView Plus and PanelView Plus 6 1250 terminals. It serves as a modular visualization component within HMI systems, delivering crisp SVGA graphics and responsive resistive touch operation. This display module is ideal for maintenance replacements or as an upgrade option for existing PanelView assemblies.

Technical Specifications

• Model / Part Number: 2711P-RDT12C

• Brand: Allen-Bradley

• Product Type: Color Touchscreen Display Module

• Display Size: 12.1 inches (diagonal)

• Display Type: Color active-matrix TFT LCD

• Resolution: 800 × 600 pixels (SVGA)

• Display Area: 246 × 184 mm (9.7 × 7.2 in.)

• Brightness: 300 cd/m²

• Color Depth: 18-bit color graphics

• Touchscreen Type: 8-wire analog resistive

• Touchscreen Actuation: 1 million operations

• Operating Force: 10–110 g

• Backlight Type: CCFL (field replaceable)

• Backlight Life: >50,000 hours at 25°C (77°F)

• Input Interface: Touchscreen only

• Anti-Glare Overlay: Not included

• Weight: 2.9 kg (6.4 lbs)

• Dimensions (H × W × D): 282 × 387 × 55 mm

• Panel Cutout: Matches PanelView Plus 1250 standard dimensions

• Operating Temperature: 0°C to +55°C (32°F to +131°F)

• Storage Temperature: -25°C to +70°C (-13°F to +158°F)

• Humidity: 5–95% RH, non-condensing

• Shock Resistance: 15 g for 11 ms pulse

• Vibration Rating: 2 g peak, 57–500 Hz

• Enclosure Rating: IP65 / NEMA Type 4X, 12, 13 (when properly installed)

• Country of Origin: USA

Key Features

• High-resolution TFT LCD with vivid 18-bit color graphics

• Robust 8-wire resistive touchscreen with 1 million actuation rating

• Field-replaceable CCFL backlight for extended service life

• Compatible with both PanelView Plus and PanelView Plus 6 1250 terminals

• Rugged construction rated for industrial environments (IP65 / NEMA 4X)

Applications

• HMI display replacement for PanelView Plus terminals

• Visualization upgrade in factory automation systems

• Suitable for use in process monitoring, packaging, and material handling control systems

FAQs

Q1: Can the 2711P-RDT12C be used as a direct replacement for a damaged PanelView Plus 1250 display?
Yes. It is a direct-fit replacement compatible with both standard and PanelView Plus 6 1250 models.

Q2: Is the backlight field replaceable?
Yes. The module uses a CCFL backlight that can be replaced in the field, extending operational lifespan.

Q3: Does this module include an anti-glare overlay?
No. The 2711P-RDT12C does not include an anti-glare overlay by default.
