A6500-RC | Emerson | AMS 6500 Relay and Digital I/O Module

Product Overview

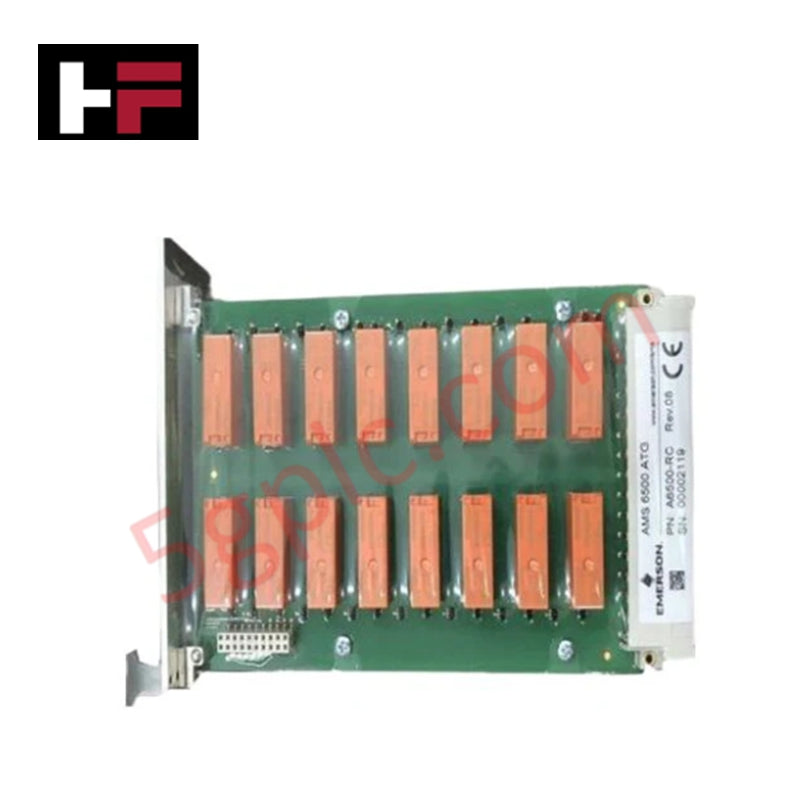

The Emerson A6500-RC provides high-density switching and logic interface capabilities for the AMS 6500 Machinery Health Monitor. This module manages complex alarm voting and machine trip sequences by integrating 66 digital inputs with 16 robust relay outputs. It acts as the critical bridge between machinery protection logic and plant control hardware. We supply this unit as 100% Brand New and Original, featuring factory-applied conformal coating for superior endurance in harsh industrial environments.

Technical Specifications

The A6500-RC excels in signal density, offering extensive I/O capacity within a single rack slot.

Engineering Advantages

• Massive Input Concentration: The A6500-RC hosts 66 digital inputs, allowing engineers to consolidate signals from multiple machinery protection cards and field contacts into one module. This reduces rack hardware requirements and simplifies backplane communication.

• Corrosion Resistance: Factory-applied conformal coating shields the PCB from airborne contaminants, moisture, and chemical vapors. This ensures long-term electrical integrity in locations like cooling towers or sulfur-rich petrochemical plants.

• High-Speed Protective Switching: With a switching time as low as 10 ms, the 16 SPDT relays execute emergency trips fast enough to protect high-speed rotors from catastrophic damage. The SPDT configuration provides both Normally Open and Normally Closed options for fail-safe wiring.

• Superior Mechanical Hardening: This module withstands extreme physical stress, including 4000 shocks per axis and high-frequency vibration up to 150Hz. This durability guarantees stable contact states even when mounted in cabinets directly adjacent to large-scale reciprocating machinery.

• Secure Logic Control: The password-protected configuration interface prevents unauthorized users from altering trip setpoints or voting logic. This maintains the "locked-down" safety integrity required for critical asset protection.

FAQs

Q: Does the A6500-RC require an external power supply for its relay outputs?

A: The module manages logic via the backplane, but the relay contacts remain dry. You must provide the appropriate wetting voltage (up to 32V DC or 48V AC) for the external circuit you intend to switch.

Q: How does the module handle "Open Input" conditions?

A: The A6500-RC features open input detection. By default, the system detects an open input as "Not Active," preventing false triggers if a field wire breaks or a terminal disconnects.

Q: Is this module suitable for high-temperature turbine halls?

A: Yes. The A6500-RC operates reliably up to +70°C under normal conditions. In high-density racks where temperatures rise, forced cooling allows for a stable operating environment up to +55°C, ensuring the 16 relays do not suffer from thermal fatigue.

Q: Can I replace a standard I/O card with this "RC" version?

A: The A6500-RC is a specific high-density relay and digital input module. If your system requires advanced voting logic or an increased number of physical relay contacts, this is the designated upgrade. Ensure your AMS 6500 firmware supports the high-density input mapping before installation.
