Product Details

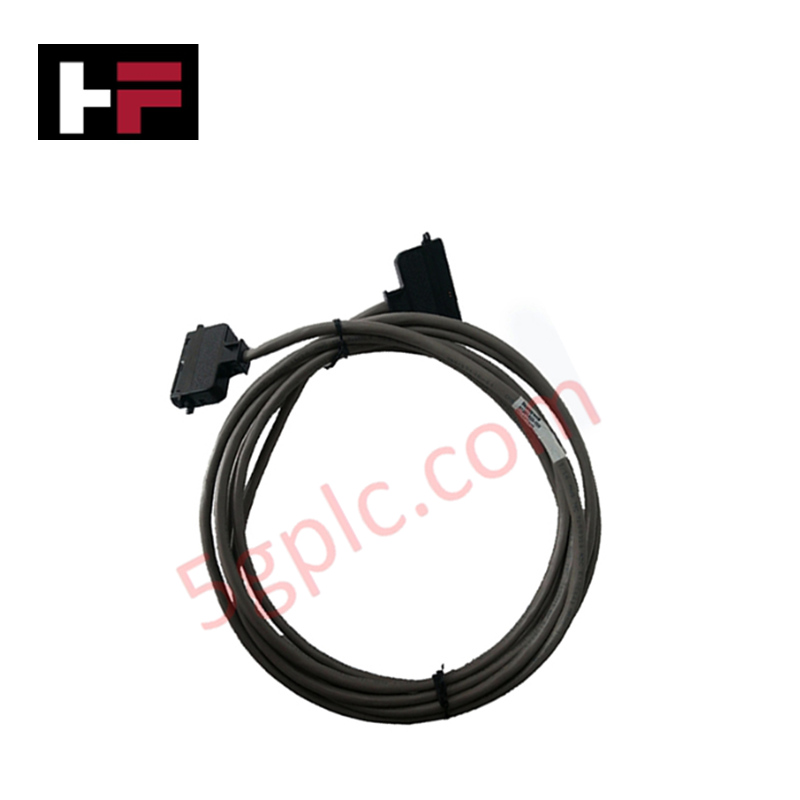

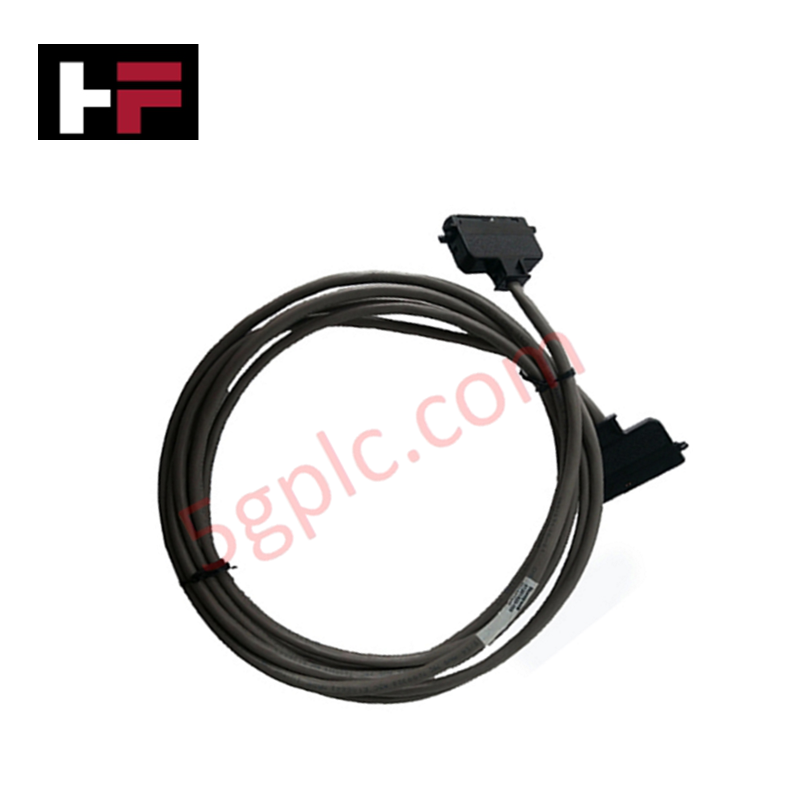

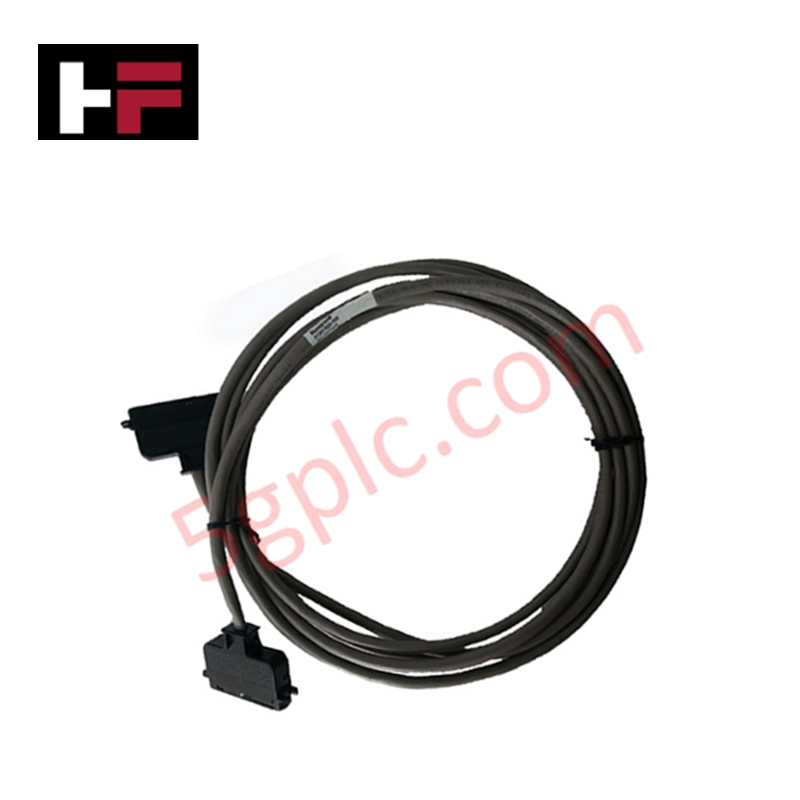

The Honeywell 51202329-302, also cataloged as the 51202329-302 I/O Link Cable, operates as a dedicated hardware component for high-speed data transfer between devices and controllers within Honeywell Series C system platforms. This drop cable pair routes digital communication signals across I/O Link network nodes at data transmission rates reaching up to 2.304 Mbps.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 51202329-302 |
| Brand | Honeywell |
| Origin | USA / Certified Assembly Facility |
| Weight | Approx. 0.11 kg (0.25 lbs) |
| Dimensions | Standard Drop Length (9-inch pitch layout) |
| Operating Temp | -20 to 70 deg C |
| Power Consumption | Passive Component |
| Cable Type | Drop Cable Pair for I/O Link Systems |
| Communication Speed | Up to 2.304 Mbps |
| System Compatibility | Honeywell Series C Systems |
FOUNDATION Fieldbus / Profibus PA Connectivity & I/O Link Integration
The 51202329-302 cable assembly establishes physical layer connectivity between Series C chassis hardware and distributed I/O modules. Designed with a 9-inch pitch configuration, the dual-cable set maintains characteristic impedance and signal propagation integrity required for high-frequency digital communication up to 2.304 Mbps. High-density shielding minimizes noise interference, allowing host process controllers to bridge deterministically between internal I/O link buses and external field networks including FOUNDATION Fieldbus and Profibus PA protocol gateways.
Frequently Asked Questions
Q: Can the 51202329-302 cable pair be disconnected while the host I/O module backplane remains powered?
A: Disconnecting the I/O link cable while active will interrupt the communication loop between the Series C controller and dependent node devices; de-energizing or isolating the network segment prior to removal is recommended.
Q: What is the maximum recommended transmission speed supported by the 51202329-302 hardware?
A: The physical cable construction supports deterministic serial data transfer speeds up to 2.304 Mbps across standard Series C I/O link drops.
Field Installation Guidelines
- Inspect the cable assembly jacket and connector interface pins for physical damage before routing through enclosures.
- Route the I/O link cables through dedicated wire ducts separate from high-voltage AC power wiring to prevent electromagnetic coupling.
- Observe specified minimum bend radius constraints to avoid damaging the internal dielectric core or shielding braid.
- Ensure connector retention screws are fully engaged and hand-tightened to maintain low-resistance grounding contact.
- Verify overall shield continuity back to the primary cabinet ground bus according to Honeywell Series C installation standards.
